Extron electronics TouchLink TLP Pro 1025T Series Setup Manual

TLP Pro 725T Series and
TLP Pro 1025T Series • Setup Guide
Overview

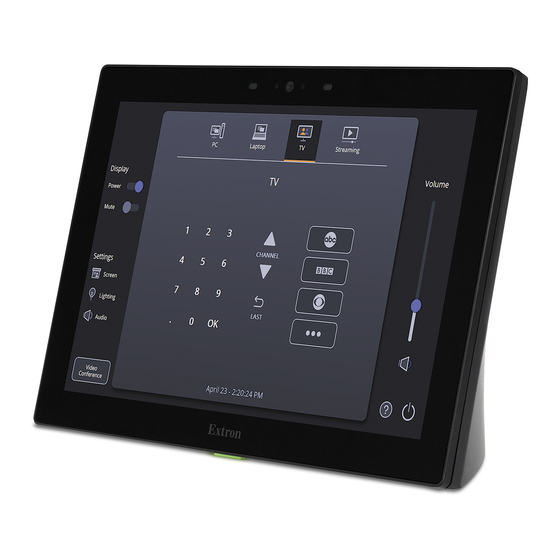

The TLP Pro 725T series are 7-inch tabletop capacitive touchscreens with a resolution of 1024x600 and 24-bit color depth. The
TLP Pro 1025T series are 10-inch tabletop capacitive touchscreens with a resolution of 1280x800 and 24-bit color depth.
All these models can be placed on any convenient flat surface.
This guide provides instructions for experienced installers to install these touchpanels. For complete instructions, see the
TLP Pro 725 and TLP Pro 1025 Series User Guide, at www.extron.com.
Setup Checklist
Get Ready
… Download and install the latest version of the following software:
GUI Designer — for designing layouts for Extron TouchLink
…
Global Configurator
…
and touchpanel.
Toolbelt — provides device discovery, device information, firmware updates, and configuration of network settings,
…
system utilities, and user management for TouchLink Pro devices.
… Global Scripter
NOTE: All four software programs are available from www.extron.com.
… Obtain the following network information from your network administrator:
DHCP status (on or off). If DHCP is off, you must also obtain:
…
IP address
…
User name — this can be either admin or user.
…
… Password — by default this is extron (for either admin or user).
… Make a note of the touchpanel MAC address.
Mount and Cable All Devices
ATTENTION:
• Do not power on the touchpanels or control processors until you have read the ATTENTION in the "Base" section of
the TLP Pro 725 and TLP Pro 1025 Series User Guide or the IPCP Pro User Guide or IPL Pro User Guide.
• Ne branchez pas les écrans tactiles ou les contrôleurs avant d'avoir lu la mise en garde dans la section « Base » du
TLP Pro 725 and TLP Pro 1025 Series User Guide ou du IPCP Pro User Guide or IPL Pro User Guide.
Mount the units. There are several mounting options for TouchLink Pro touchpanels (see
…
… Connect the touchpanel to a Power over Ethernet injector (not provided). Extron recommends the XTP PI 100 power injector,
which can be purchased separately.
… Connect the power injector to the LAN and power it on.
Set up the Touchpanels for Network Communication
… Connect the PC that you are using for setup, the control processor, and touchpanel to the same Ethernet subnetwork.
Setup Menu
… Use the
gateway, and related settings for the touchpanel.
Configure the Touchpanels
… The GUI Designer Help File, the Global Configurator Help File, and the Toolbelt Help File provide step-by-step instructions
and more detailed information. The Global Configurator Help File includes an introduction to the software and sections on
how to start a project and configuration. Global Scripter provides an Extron-exclusive Python library (ControlScript
Global Scripter modules to get you started.
Professional or Global Configurator Plus — for setting up and configuring the control processor
®
— provides an integrated development environment for Extron control systems programming.
®
Subnet mask
…
(see page 4) or Toolbelt to set the DHCP status and, if necessary, the IP address, subnet mask,
Pro touchpanels and third party touch interfaces.
®
Gateway
…
Mounting
Product Category
on the next page).
) and
®
1
