TLP Pro 720C • Setup Guide (Continued)
Step 3 — Run all Cables
Run all cables necessary to support the AC connector, the cables stored in the cubby, and all planned AAP connectors. Run the
cables below the table and through the hole that was cut in
before the cubby is installed in the table. Leave enough space under the TLP Pro 720C enclosure for the external power supply
and connection of AV cables and the network connection.
Step 4 — Install Cable Retractors (Optional)
If required, Extron cable retractors must be purchased separately. It is difficult to mount the Cable Cubby into the table after the
retractors have already been installed, so Extron recommends installing the empty retractor bracket at this point. The bracket
should be secured using the lowest level of mounting holes inside the touchpanel enclosure.
The retractors should be added to the bracket after
about retractors and how to install them, see the TLP Pro 720C User Guide and Retractors User Guide at www.extron.com.
Step 5 — Install Power Module (Optional)
ATTENTION:
For units that are used in North America, only
use AC power modules that are UL Listed Model
"Cable Cubby AC Power Module".
Pour les unités qui sont utilisées en Amérique
du Nord, utilisez seulement les modules
d'alimentation secteur qui sont listés UL, modèle
« Cable Cubby AC Power Module ».
The unit is not UL Listed if it uses any AC power
module other than Model "Cable Cubby AC Power
Module".
L'unité n'est pas listée UL si elle utilise tout autre
module d'alimentation secteur autre que le modèle
« Cable Cubby AC Power Module ».
NOTE:
For models that do not include a power module, see the Extron website to select a power module that is suitable for
your location.
The power module takes up two or three AAP spaces, depending on the model, and may be installed before or after the AAP
assembly is installed. It may be installed with AAPs on either side.
Secure the power module into position with #4-40 Phillips head screws and star washers.
1.
CAUTION:
Risk of electric shock: To ensure proper electrical grounding, use the provided grounding screws and star
washers.
ATTENTION :
Risque de choc électrique: Afin d'assurer une mise à la terre correcte, utilisez les fixations de mise à la
terre et les rondelles en étoile fournies.
Run the cable or conduit to a convenient junction box. Extron recommends the circuit be attached to a junction box that is
2.
directly wired to the main circuit.
4
Step
2. Leave enough slack in the cables to connect or route them
Step 8 — Mounting the Enclosure

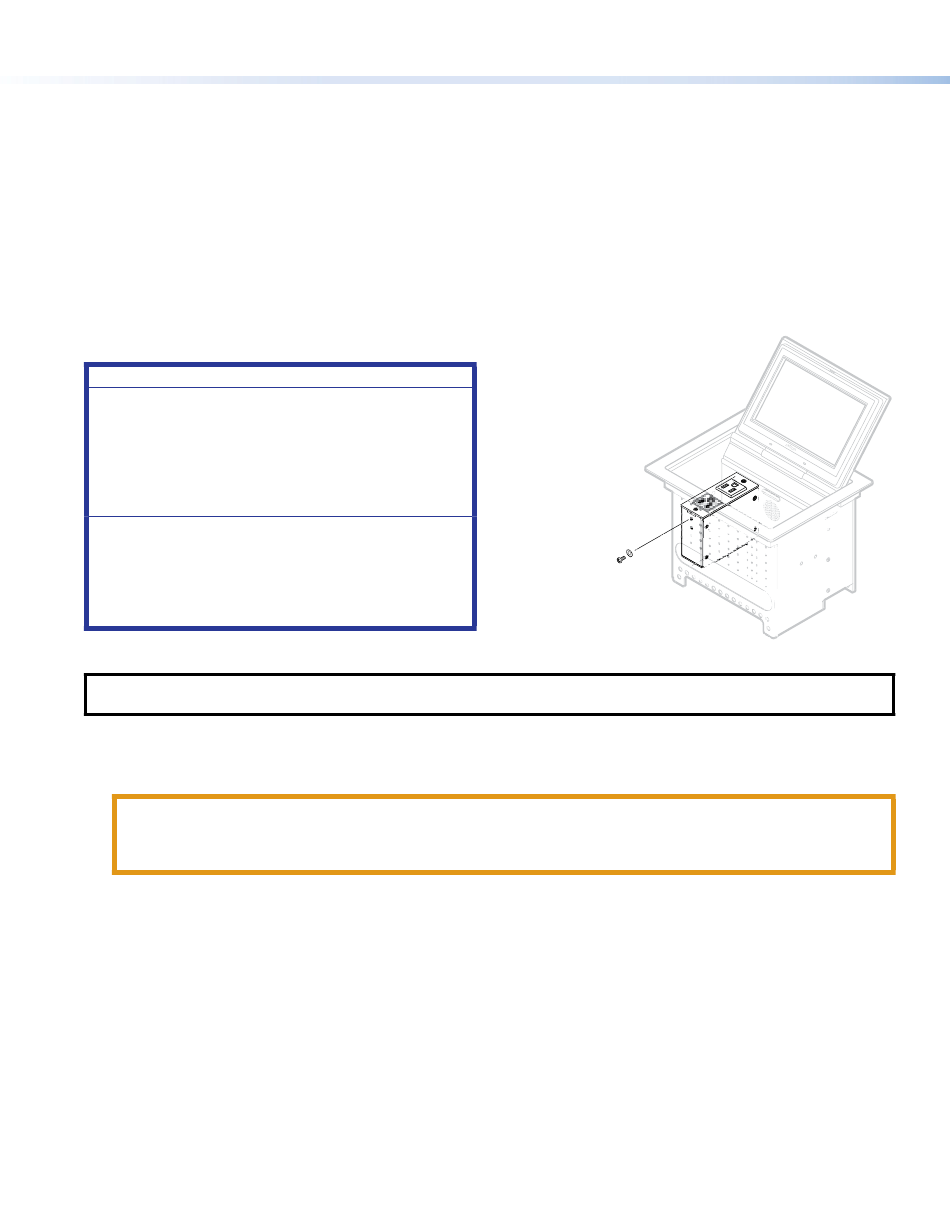

Secure the power module
to the TLP Pro 720C frame
with #4-40 Phillips head
screws and star washers.
Figure 5.
on page 6. For complete information
Securing the Power Module
