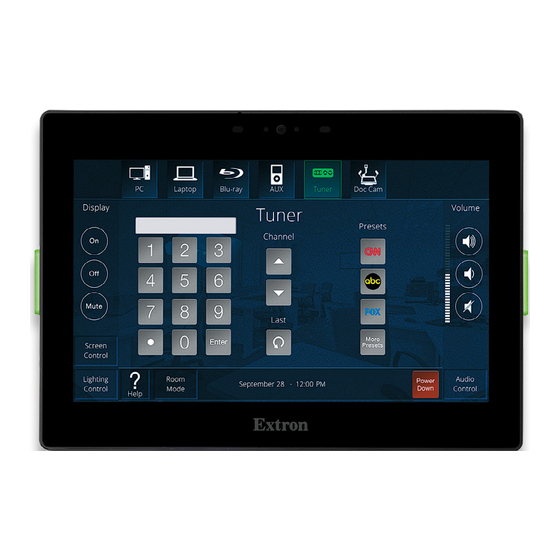

TLP Pro x25 Series and TLS x25 Series
TLP Pro 525M, TLP Pro 525T, and TLS 525M
TLP Pro 725M, TLP Pro 725T, and TLS 725M
TLP Pro 1025M, TLP Pro 1025T, and TLS 1025M
User Guide
TouchLink
®
Products
68-2831-01, Rev. J
08 24

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TouchLink TLP Pro 25 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Extron electronics TouchLink TLP Pro 25 Series

  • Page 1 TLP Pro x25 Series and TLS x25 Series TLP Pro 525M, TLP Pro 525T, and TLS 525M TLP Pro 725M, TLP Pro 725T, and TLS 725M TLP Pro 1025M, TLP Pro 1025T, and TLS 1025M User Guide TouchLink ® Products 68-2831-01, Rev.
  • Page 2 Safety Instructions Safety Instructions • English Instructions de sécurité • Français AVERTISSEMENT : Ce pictogramme, , lorsqu’il est utilisé sur le WARNING: This symbol, , when used on the product, is intended to produit, signale à l’utilisateur la présence à l’intérieur du boîtier du produit alert the user of the presence of uninsulated dangerous voltage within the d’une tension électrique dangereuse susceptible de provoquer un choc product’s enclosure that may present a risk of electric shock.
  • Page 3 安全说明 • 简体中文 警告: 产品上的这个标志意在警告用户, 该产品机壳内有暴露的危险 电压, 有触电危险。 注意: 产品上的这个标志意在提示用户, 设备随附的用户手册中有重 要的操作和维护(维修)说明。 关于我们产品的安全指南、遵循的规范、EMI/EMF 的兼容性、无障碍使 用的特性等相关内容, www.extron.com 敬请访问 Extron 网站 , ,参见 Extron 安全规范指南,产品编 。 号 68‑290‑01 安全記事 • 繁體中文 안전 지침 • 한국어 경고: 이 기호 가 제품에 사용될 경우, 제품의 인클로저 내에 있는 警告: 若產品上使用此符號,...
  • Page 4 FCC Class B Notice NOTE: This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules.
  • Page 5 Produit laser de classe 1 Si ce produit a besoin d’un quelconque entretient, celui-ci doit être fait par Extron Electronics et son personnel qualifié. ATTENTION : L’utilisation de commandes, la réalisation de réglages, ou l’exécution de procédures de manière contraire aux dispositions établies dans le présent document, présente un risque d’exposition dangereuse aux radiations.
  • Page 6 Compliance IC Canada, Industry Canada (IC) Notices CAN ICES-3 (B)/NMB-3(B) This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
  • Page 7 IC conformité Canada, avis d’Industry Canada (IC) CAN ICES-3 (B)/NMB-3(B) Cet appareil est conforme aux normes des cahiers des charges sur les normes radioélectriques (CNR) de l’ISDE applicables aux appareils exempts de licence. Son utilisation est subordonnée aux deux conditions suivantes : (1) Cet appareil ne doit provoquer aucune interférence, et (2) cet appareil doit accepter toute interférence, y compris l’interférence susceptible de compromettre son fonctionnement.
  • Page 8 Conventions Used in this Guide Notifications In this user guide, the following are used: WARNING: Potential risk of severe injury or death. AVERTISSEMENT : Risque potentiel de blessure grave ou de mort. CAUTION: Risk of minor personal injury. ATTENTION : Risque de blessure mineure. ATTENTION: •...
  • Page 9: Table Of Contents

    Contents Introduction ................................1 About This Guide ...............................1 About the Touchpanels ............................2 Features ................................2 All Models ...............................2 TLP Pro Series Touchpanels ..........................3 TLP Pro 525M, TLP Pro 725M, and TLP Pro 1025M ..................3 TLP Pro 525T, TLP Pro 725T, and TLP Pro 1025T ..................3 TLS 525M, TLS 725M, and TLS 1025M......................3 Application Diagrams ............................5 Requirements ..............................6...
  • Page 10 Mounting ................................31 Mounting the TLP Pro x25M Series and TLS Series Touchpanels ..............31 Mounting to a Wall Box or Junction Box.......................32 Mounting to Drywall ............................34 Mounting the Touchpanels with Optional Kits ....................34 Mounting the TLP Pro 525T, 725T or 1025T ....................34 Desktop Mounting ............................34 LinkLicenses ................................35 What is an Extron LinkLicense? ........................35...
  • Page 11: Introduction

    Introduction This section discusses the following topics: • About This Guide • About the Touchpanels • Features • Application Diagrams • Requirements About This Guide This guide describes the function, installation, and operation of the following Extron Touchlink Pro Touchpanels: •...
  • Page 12: About The Touchpanels

    About the Touchpanels These touchpanels are ideal for any AV application requiring small or medium-sized touchpanels with flexible mounting options and fully customizable interfaces. For all TLP Pro models, the screen layout is designed with the Extron GUI Designer software. The functions are assigned to the screen objects with the Extron Global Configurator Plus and Professional software or ControlScript programming.
  • Page 13: Tlp Pro Series Touchpanels

    TLP Pro Series Touchpanels • Compatible with the full range of Extron IPL Pro and IPCP Pro control processors — Allows easy integration into existing systems. • Transform your touchpanel into an all-in-one Pro xi Series control system using LinkLicense for TLP Control Processor and the TLCA 1 TouchLink Control Port Expansion Adapter —...
  • Page 14 • All communication between the touchpanel and calendar server is encrypted and secure. • Digital input allows connection to an occupancy sensor, such as the Extron OCS 100. • Room usage data provides insight into trends and activity — Each touchpanel includes a downloadable Scheduling Activity file that enables you to generate analytics on usage, activity patterns, and trends using data from across the enterprise or organization.
  • Page 15: Application Diagrams

    Application Diagrams WiFi 1 2 3 4 FF 220T DTP HDMI 4K Ceiling Speakers 330 Rx Receiver MODEL 80 LINK OUTPUTS POWER AUDIO 0.7A MAX DTP IN OVER DTP RS-232 Tx Rx Tx Rx DTP HDMI 4K 330 Rx HDMI RS-232 Laptop FLAT PANEL...
  • Page 16: Requirements

    Requirements Software For a complete list of the requirements for running GUI Designer, Global Configurator Plus and Professional, ControlScript Deployment Utility, Toolbelt, and Room Agent see the Extron web page (www.extron.com) for that software. NOTE: These touchpanels are not compatible with Global Configurator 3 or GUI Configurator. Hardware An Extron IP Link Pro control interface must also be connected to the same network domain as the TLP Pro TouchLink panel.
  • Page 17: Installation Overview

    Installation Overview This section provides an overview of the installation process. Follow the links for a more detailed explanation of each step. 1. Before starting to install the touchpanels, download and install the latest versions of the following software: • GUI Designer (TLP Pro models only) —...
  • Page 18 3. Mount and cable the units: ATTENTION: • Do not power on the touchpanels or control processors until you have read the ATTENTION about Power over Ethernet (PoE) power supplies (see page 15). • Ne branchez pas les écrans tactiles ou les processeurs de contrôle avant d’avoir lu la mise en garde sur les sources d’alimentation via Ethernet (PoE) (voir page 15).
  • Page 19: Panel Features

    Panel Features This section describes the TLP Pro x25 series and TLS series touchpanels: • Front Panel Features • Rear Panel Features • TLP Pro 525T, TLP Pro 725T, and TLP Pro 1025T Base • Connecting Power Front Panel Features Figure 3 shows the TLP Pro 725M (left) and TLP Pro 725T (right) front panels.
  • Page 20 Communication LED — (see figure 3 on page 9). Shows the configuration and connection status of the touchpanel: • Unlit during normal operation (the touchpanel is configured and connected to an IP Link Pro control processor). • Blinks if the touchpanel has been configured but is not connected to an IP Link Pro control processor. •...
  • Page 21: Rear Panel Features

    Rear Panel Features Figure 4 shows the rear panels of the TLP Pro 525M (top left), TLP Pro 725M (bottom left), TLP Pro 1025M (top right) and TLP Pro 725T (bottom right). The rear panels of the TLS series are similar to the TLP Pro x25M models. The rear panels of the TLP Pro 525T and TLP Pro 1025T are similar to the TLP Pro 725T.
  • Page 22 MENU button (TLS Series and TLP Pro x25M only) — (figure 4 on page 11) Activates the On-screen Menus (see page 16). RESET button (TLS Series and TLP Pro x25M only) — Pressing the RESET button allows the unit to be reset in any of three different modes and can also be used to toggle between enabling and disabling the DHCP client (see Reset Modes...
  • Page 23: Tlp Pro 525T, Tlp Pro 725T, And Tlp Pro 1025T Base

    Rear status light — The TLS 525M and TLP Pro 525M do not have any rear panel status lights. The TLS 725M and TLP Pro 725M has six LEDs (three on each side of the rear panel). The TLS 1025M and TLP Pro 1025M have a single LED strip on each side.
  • Page 24: Connecting Power

    Cable guide (see figure 5 on page 13) — The Ethernet cable is inserted through this hole at the back of the base (see LAN/PoE connector on page 14). RESET LED — Provides feedback about the reset status when the user presses the RESET button (see Reset Modes on page 38).
  • Page 25 ATTENTION: • The installation must always be in accordance with the applicable provisions of National Electrical Code ANSI/NFPA 70, article 725 and the Canadian Electrical Code part 1, section 16. • Cette installation doit toujours être conforme aux dispositions applicables du Code américain de l’électricité...
  • Page 26: On-Screen Menus

    On-screen Menus On-screen menus allow initial configuration of the touchpanels. The figures in this section show screens for the TLP Pro 525M. Unless stated otherwise, the screens for the other touchpanels are very similar. Setup Menu To open the setup menu, use a screw driver with a fine blade to press the MENU button. The MENU button is figure located on the rear panel of the TLP Pro 525M, 725M, or 1025M (see , on page 11) or on the base of...
  • Page 27: Linklicenses

    LinkLicenses For information about LinkLicenses, see LinkLicenses on page 35. Enable LinkLicenses The Enable LinkLicenses feature is available from the Status (see page 16). When the LinkLicense is enabled, the touchpanel is a control processor. 1. To enable LinkLicences, set the LinkLicense switch to on by moving the toggle switch in the System Information pane to the right (see image to the right).
  • Page 28: System Information

    Disable LinkLicenses The Disable LinkLicenses feature is available from the Status screen. 1. To disable LinkLicences, set the LinkLicense switch to off by moving the toggle switch in the System Information pane to the left (see image to the right). A dialog box opens. Disable LinkLicenses Disabling LinkLicenses will remove all user loaded project les and reboot the device.
  • Page 29: Network

    To pair the touchpanel with a control processor, follow these instructions: 1. Click Edit in the System Information panel of the Status page (see figure 7). The System ID dialog box opens. S y s t e m I D Select eld to edit Primary Controller Address System ID...
  • Page 30 2. If DHCP is on, press the Host Name button to edit the Host Name. The Host Name dialog box opens: Figure 12. Alphanumeric Keypad 3. Use the keypad to enter a new name, which appears in the Host Name text box. If DHCP is disabled, set the unit IP address, subnet mask, gateway address, and DNS server address.
  • Page 31: Display

    Display Press the Display button in the navigation panel at the top of the screen to open the Display screen. Display Audio Advanced Exit Status Network Auto Brightness Sleep Timer LCD Brightness Minutes Wake on Motion Figure 15. Display Screen The Display screen allows you to set the Sleep Timer, Auto Brightness, LCD Brightness, and Wake on Motion.
  • Page 32: Audio

    Audio Press the Audio button in the navigation panel at the top of the screen to open the Audio screen. Display Audio Advanced Exit Status Network System Click Sound Figure 16. Audio Screen On the Audio screen, use the slider controls to adjust the System, Click, and Sound volume settings. •...
  • Page 33: Advanced

    Advanced Press the Advanced button in the navigation panel at the top of the screen to open the Advanced screen. The TLP Pro 725M and TLP Pro 1025M series wall mount models have the option to Enable or Disable the rear panel status lights (see figure 17).
  • Page 34 Menu PIN The PIN setup options allow you to enable, disable, or change the setup menu PIN. The PIN is a 4-digit number. Each digit can have any value from 0-9. 1. Click On to enable the use of a PIN. Click Off to disable the use of a PIN. Click Change to edit an existing PIN.
  • Page 35: Configuration Software

    Configuration Software This section of the user guide provides information about: • Configuration Software • Installing Software • Using the Software • TLP Pro 525, 725, and 1025 Series Web Page • Updating the Firmware Configuration Software TLS Touchpanels Room Agent — Used to configure TLS touchpanels and connect to calendar servers. For further information, see the Room Agent Help File.
  • Page 36 1. On the Extron home page, select the Downloads tab (see figure 20, Figure 20. Downloads Tab 2. Carry out one of these options: • If the software of interest is listed in the Featured Software list ( ), click on it directly. This takes you directly to the product web page (see figure 21).
  • Page 37: Using The Software

    Information about the software appears under the Search Software text box (see figure 23). Figure 23. Software Product Information 3. Click Download whether you are on the Software Product page (see figure , on page 26) or the Software Search page (see figure 23, An executable file (.exe) is placed in your default Downloads folder.
  • Page 38: Tlp Pro 525, 725, And 1025 Series Web Page

    The GUI Designer, Global Configurator Plus and Professional, and ControlScript Deployment Utility software provide versatility and adaptability for control of an AV system as it grows and evolves. • Room Agent — Use Room Agent to design the layout of the the TLS touchpanels and to connect them to calendar servers.
  • Page 39 The web page opens. Figure 25 shows the TLP Pro 725T web page. The web pages for the other touchpanels are very similar. Figure 25. TLP Pro 725T Web Page There is a single page, most of which is read-only, providing general and network information about the unit. On-screen Menus Use the (see page 16) or Toolbelt to configure the touchpanel network settings.
  • Page 40: Updating The Firmware

    Updating the Firmware Firmware for the TLP Pro 725 series touchpanels can be upgraded using Toolbelt. Before starting, consult your IT team and ensure that the touchpanel has a unique IP address. Power on a computer that is connected to the same network as the touchpanel. 1.
  • Page 41: Mounting

    Mounting There are several options for mounting these touchpanels. Visit the Extron website (www.extron.com) for a complete list. This section outlines the various options for: • Mounting the TLP Pro x25M Series and TLS Series Touchpanels • Mounting to a Wall Box or Junction Box •...
  • Page 42: Mounting To A Wall Box Or Junction Box

    Mounting to a Wall Box or Junction Box Some local building codes require the touchpanel to be mounted in a junction box. Junction boxes or wall boxes must be purchased separately. NOTES: • The TLP Pro 525M and TLS 525M touchpanels mount to a 1-gang junction box and have their own mounting plate (see figure 27, top).
  • Page 43 Figure 28 shows how to mount the TLP Pro 725M. Mounting the all the other touchpanels is very similar. Back View Figure 28. Mounting the TLP Pro 725M to a Wall Box (left) and Mounting Plate (right) 1. Install a junction box or wall box (see figure 28, ), following the instructions provided by the manufacturer.
  • Page 44: Mounting To Drywall

    Mounting to Drywall If local building codes do not require a wall box, you can mount the touchpanel directly into drywall. 1. Go to www.extron.com and download the cut-out template for your touchpanel. Print the template at 100% size (no scaling). 2.
  • Page 45: Linklicenses

    LinkLicenses • What is an Extron LinkLicense? • How Customers Obtain a LinkLicense • Applying a LinkLicense What is an Extron LinkLicense? An Extron LinkLicense is a quick, cost-effective way for people to add even more powerful capabilities to Extron products.
  • Page 46: Reference Material

    Reference Material This section describes: • Best Practices for Cleaning Your Extron Products • Network Port Requirements and Licensed Third-Party Software Used by the Touchpanels • Digital I/O Port Cases • Reset Modes • Secure Sockets Layer (SSL) Certificates • IEEE 802.1X Certificates •...
  • Page 47: Digital I/O Port Cases

    Digital I/O Port Cases Connecting an Occupancy Sensor to the Digital I/O Port +5.0 V 1k ohms SW 2 Digital Control Signal Voltage Protection SW 1 Ground Figure 30. Connecting an Occupancy Sensor to the Digital I/O Port Port Configured — Input (switch 1 open, switch 2 open) Room Occupied —...
  • Page 48: Reset Modes

    Reset Modes The touchpanels described in this guide have three reset modes that are initiated by pressing the RESET button. An additional (fourth) mode toggles between enabling and disabling the DHCP client: • Use Factory Firmware (see below). • Reset Network Settings (see page 39).
  • Page 49: Reset Network Settings

    Reset Network Settings This mode resets all IP settings to factory defaults. Activation To reset all IP settings: 1. Hold down the RESET button for about 6 seconds until the Reset LED blinks twice (once at 3 seconds and again at 6 seconds). 2.
  • Page 50: Toggle Dhcp Client

    Toggle DHCP Client This mode toggles between DHCP enabled and DHCP disabled. This can also be carried out from the Network screen (see page 19) of the Setup menu. Activation To enable or disable the DHCP client for the LAN port: 1.
  • Page 51: Ieee 802.1X Certificates

    IEEE 802.1X Certificates IEEE 802.1X is a standard that enables port-based network access control via an authentication server. The protocol requires that all devices must be authenticated before gaining privileges to access the secure part of the network. The Extron implementation of 802.1X supports PEAP - MSCHAPV2 and EAP - TLS methods of authentication. This section of the guide details the “Certificate File Requirements”...
  • Page 52: Snmp

    SNMP Extron control products support Simple Network Management Protocol (SNMP). SNMP facilitates the exchange of basic network management information between network devices. It helps in monitoring of operations and factors such as packet usage, memory usage, remote password resets, and collection of error information. An information technology administrator can use common IT tools to monitor those factors, as well as look up device location and the name of the contact person for the device.
  • Page 53: Extron Warranty

    In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage.
