KeyPad Plus is a wireless touch keypad for managing the Ajax security system with
encrypted contactless cards and key fobs. Designed for indoor installation. Supports "silent
alarm" when entering the
Manages security modes using passwords and
security mode with a LED light.
The keypad only works with
Connection to
The keypad operates as part of the Ajax security system by connecting via the
secure radio communication protocol
obstacles is up to 1700 meters. The pre-installed battery life is up to 4.5 years.
Buy KeyPad Plus keypad
Functional elements
KeyPad Plus User Manual
Updated May 24, 2021
duress code
. Indicates the current security mode with a LED light.
Hub Plus Hub 2
,
Hub
and the
ocBridge Plus
to the hub. The communication range without
cards or key fobs
и
Hub 2 Plus
running OS Malevich 2.11 and higher.
and
uartBridge
integration modules is not supported!
. Indicates the current
Jeweller

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KeyPad Plus and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AJAX KeyPad Plus

Summary of Contents for AJAX KeyPad Plus

  • Page 1 KeyPad Plus User Manual Updated May 24, 2021 KeyPad Plus is a wireless touch keypad for managing the Ajax security system with encrypted contactless cards and key fobs. Designed for indoor installation. Supports “silent alarm” when entering the duress code .

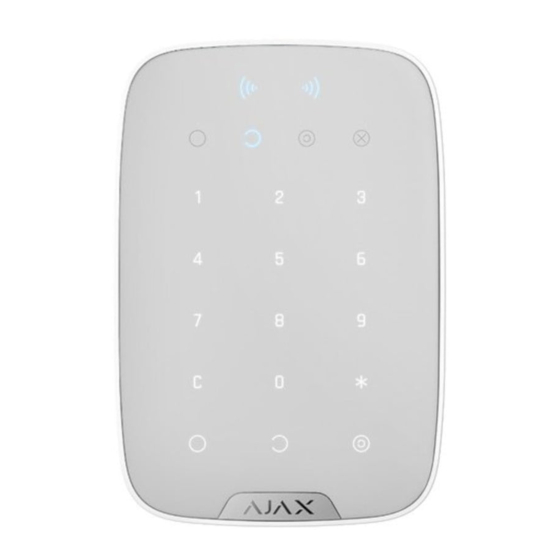

  • Page 2 1. Armed indicator 2. Disarmed indicator Night mode indicator 4. Malfunction indicator 5. Pass/Tag Reader 6. Numeric touch button box 7. Function button 8. Reset button 9. Arm button 10. Disarm button...

  • Page 3: Operating Principle

    Operating principle 00:00 00:04 KeyPad Plus arms and disarms the security of the entire facility or separate groups as well as allows activating the Night mode. You can control the security modes with KeyPad Plus using: 1. Passwords. The keypad supports common and personal passwords, as well as arming without entering a password.

  • Page 4: Function Button

    (if any). The security status is displayed only when the keypad is active (the device backlight is on). You can use the KeyPad Plus without ambient lighting as the keypad has a backlight. The pressing of the buttons is accompanied by a sound signal. The backlight brightness and keypad volume are adjustable in the settings.

  • Page 5: Duress Code

    2. Ensure that the hub is on and has Internet access (via Ethernet cable, Wi-Fi, and/or mobile network). This can be done by opening the Ajax app or by looking at the hub logo on the faceplate — it lights white or green if the hub is connected to the network.
  • Page 6 The keypad only works with one hub. When connected to a new hub, the device stops sending commands to the old hub. Once added to a new hub, KeyPad Plus is not removed from the device list of the old hub. This must be done manually through the Ajax app.
  • Page 7 Pass/Tag reading is disabled in KeyPad Plus settings States The states include information about the device and its operating parameters. The states of KeyPad Plus can be found in the Ajax app: 1. Go to the Devices tab. 2. Select KeyPad Plus from the list.
  • Page 8 Battery low When the batteries are discharged, the Ajax apps and the security company will receive appropriate noti cations. After sending a low battery noti cation, the keypad can work for up to 2 months How battery charge is displayed in Ajax...
  • Page 9 Settings KeyPad Plus is con gured in the Ajax app: 1. Go to the Devices tab. 2. Select KeyPad Plus from the list. 3. Go to Settings by clicking on the gear icon To apply the settings after the change, click the Back button...
  • Page 10 1 minute. Unauthorized Access Auto-Lock It is not possible to disarm the system via keypad during this time. You can unlock the keypad through the Ajax app Selecting the keypad lock period after wrong password attempts: 3 minutes 5 minutes...
  • Page 11 Pass/Tag Reading When enabled, the security mode can be controlled with Pass and Tag access devices When enabled, changing the security mode with Tag and Pass does not require con rmation by pressing the arm, disarm, or Night mode button. The security mode is switched automatically.
  • Page 12 Both common and personal user passwords can be set for the keypad. A personal password applies to all Ajax keypads installed at the facility. A common password is set for each keypad individually and can be different or the same as the passwords of other keypads.
  • Page 13 Security management by passwords You can manage the Night mode, security of the entire facility or separate groups using common or personal passwords. The keypad allows you to use 4 to 6 digit passwords. Incorrectly entered numbers can be cleared with the  button.
  • Page 14   KeyPad Plus is locked for the time speci ed in the settings if an incorrect password is entered three times in a row within 1 minute. The corresponding noti cations are sent to users and to the monitoring station of the security company. A user or PRO with administrator rights can unlock the keypad in the Ajax app.
  • Page 15 If a group is assigned to KeyPad Plus, you will not be able to manage Night mode using a common password. In this case, Night mode can only be managed using a personal password if the user has the appropriate rights.

  • Page 16: Using A Duress Code

    If a group is assigned to KeyPad Plus (in the Group Management  eld in the keypad settings), you do not need to enter the group ID. To manage the security mode of this group, entering a personal password is su cient.
  • Page 17 Security management using Tag or Pass 1. Activate the keypad by swiping your hand over it. KeyPad Plus will beep (if enabled in the settings) and turn on the backlight. 2. Bring Tag or Pass to the keypad pass/tag reader. It is marked with wave icons.
  • Page 18 Event Indication There is no connection to the hub or ReX range blinks extender KeyPad Plus body is open (SmartBracket mount is blinks brie y once removed) Short beep, the current system security status LED Touch button pressed blinks once. The volume depends on the keypad...

  • Page 19: Functionality Testing

    Attenuation Test Choosing a location When holding KeyPad Plus in your hands or using it on a table, we cannot guarantee that the touch buttons will work properly. It is a good practice to install the keypad 1.3 to 1.5 meters above the oor for convenience.

  • Page 20: Installing The Keypad

    Outdoors. This could damage the device. Installing the keypad Prior to installing KeyPad Plus, be sure to select the optimal location following the requirements of this manual! 1. Attach the keypad to the surface with double-sided adhesive tape and carry out signal strength and attenuation tests.

  • Page 21: Maintenance

    SmartBracket plate so that the tamper responds to a detachment attempt. 5. Slide KeyPad Plus onto the mounting plate and tighten the mounting screw at the bottom of the body. The screw is needed for more reliable fastening and protection of the keypad from quick dismantling.

  • Page 22: Complete Set

    X (Malfunction) indicator smoothly lights up and goes out after each successful password entry. KeyPad Plus can work up to 2 months after the low battery signal. However, we recommend you replace the batteries immediately upon noti cation. It is advisable to use lithium batteries.

  • Page 23: Technical Speci Cations

    Weight 267 g Service life 10 years Warranty 24 months Compliance with standards Warranty The warranty for the AJAX SYSTEMS MANUFACTURING Limited Liability Company products is valid for 2 years after purchase and does not extend to the bundled batteries.
  • Page 24 If the device does not function properly, we recommend that you rst contact the support service as half of the technical issues can be resolved remotely! Warranty obligations User Agreement Technical support: support@ajax.systems...
