ManualCallPoint Jeweller user manual | Ajax Systems Support
ManualCallPoint Jeweller user
ManualCallPoint Jeweller is a wireless manual alarm activation
button. The device allows you to activate an alarm in case of an
emergency. The button can be reset using a special tool (key)
included in the kit. The device is designed for indoor installation
only.

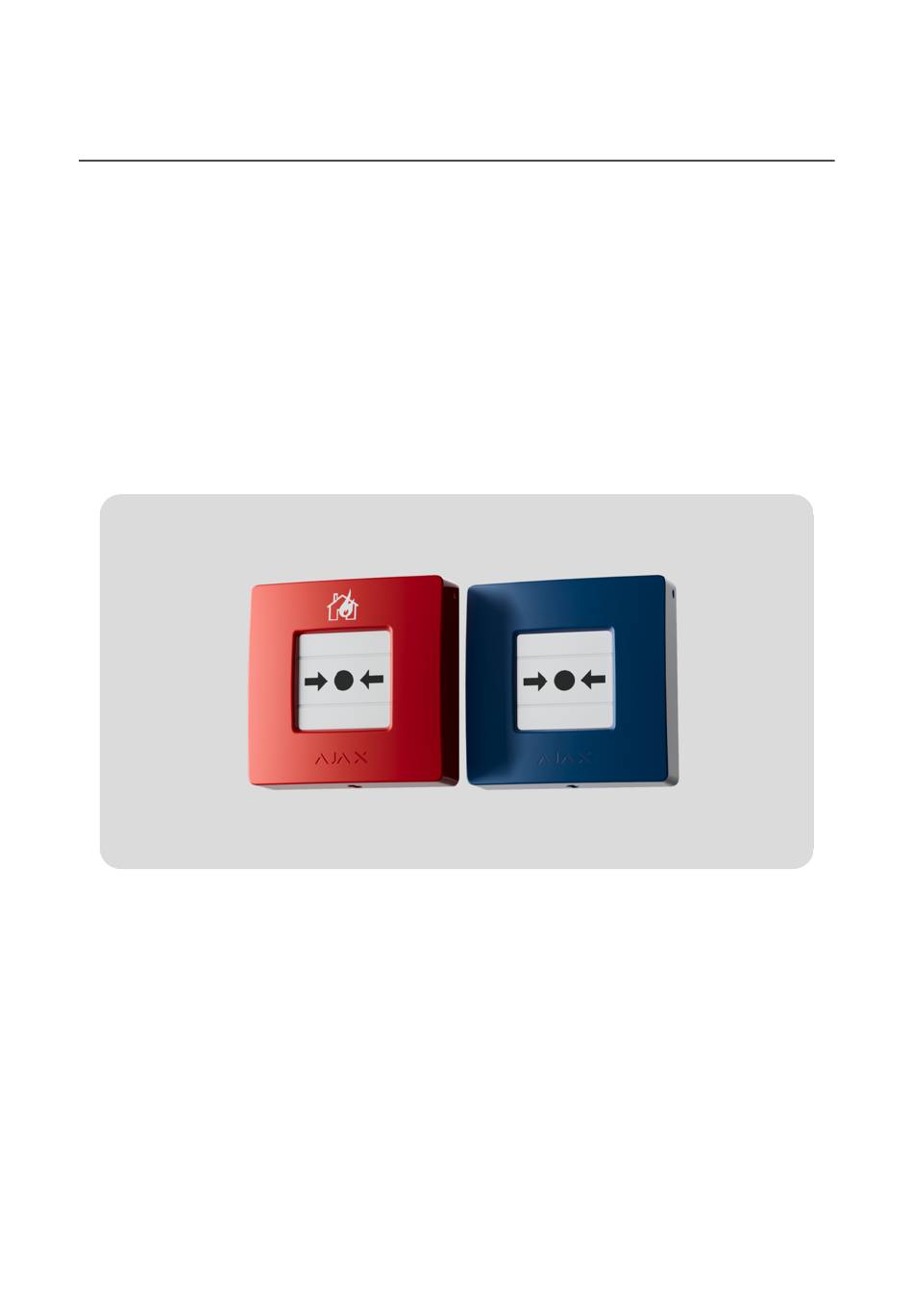

The button is available in several versions:
https://support.ajax.systems/en/manuals/manualcallpoint-jewe...&_ga=2.192918121.2138058382.1699352683-737267677.1699352682
manual
Updated October 18, 2023
ハンン
Language:
Eng
●←
ソンン
07.11.23, 13:23
Страница 1 из 26

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ManualCallPoint Jeweller and is the answer not in the manual?

Questions and answers

Related Manuals for AJAX ManualCallPoint Jeweller

Summary of Contents for AJAX ManualCallPoint Jeweller

  • Page 1 ManualCallPoint Jeweller user manual | Ajax Systems Support 07.11.23, 13:23 Language: ManualCallPoint Jeweller user manual Updated October 18, 2023 ●← ソンン ハンン ManualCallPoint Jeweller is a wireless manual alarm activation button. The device allows you to activate an alarm in case of an emergency.

  • Page 2: Functional Elements

    ManualCallPoint Jeweller user manual | Ajax Systems Support 07.11.23, 13:23 ManualCallPoint (Red) Jeweller; ManualCallPoint (Blue) Jeweller. To transmit alarms and events, ManualCallPoint communicates with via the secure Jeweller protocol. The communication range is up to 1,700 meters without obstacles. Buy ManualCallPoint Jeweller Functional elements 1.
  • Page 3 07.11.23, 13:23 button from the surface or remove it from the mounting panel. 6. Power button. 7. QR code with the device ID for pairing the button with an Ajax hub. 8. Hole for the special tool. 9. Special tool (key).

  • Page 4: Operating Principle

    Tre detectors and intrusion sirens. An alarm signal is then transmitted to the central monitoring station (CMS). Users receive sound alarm notiTcations in the Ajax app. The system can be conTgured to send Critical Alerts that bypass “silent” or “do not disturb”...
  • Page 5 ManualCallPoint Jeweller user manual | Ajax Systems Support 07.11.23, 13:23 special tool. To reset, insert the key into the corresponding hole. After resetting, the button is ready to be reused. The device features a transparent lid to prevent accidental presses during its installation and use.
  • Page 6 ManualCallPoint Jeweller user manual | Ajax Systems Support 07.11.23, 13:23 ManualCallPoint (Red) Jeweller and ManualCallPoint (Blue) Jeweller have the same functionality. However, unlike the Red model, the Blue model allows disabling the CMS alarm transmission. Scenario Trigger In the Scenario Trigger mode, ManualCallPoint allows you to control...
  • Page 7 ManualCallPoint Jeweller user manual | Ajax Systems Support 07.11.23, 13:23 The Device Action setting is unavailable when conTguring a scenario for automation devices operating in pulse mode. When the scenario runs, these devices will close/open the contacts for a set time.

  • Page 8: Adding To The System

    The hub and the device operating at different radio frequencies are incompatible. The radio-frequency range of the device may vary by region. We recommend purchasing and using Ajax devices in the same region. You can verify the range of operating radio frequencies with the...
  • Page 9 ManualCallPoint Jeweller user manual | Ajax Systems Support 07.11.23, 13:23 1. Install the Ajax app 2. Create an account if you don’t have one. Add a compatible hub to the app, adjust the necessary settings, and create at least one virtual room 3.
  • Page 10 This must be done through the Ajax app. Malfunctions When a malfunction is detected, the Ajax app displays a malfunction counter on the device icon. All malfunctions are indicated in the device’s states. Fields with malfunctions will be highlighted in red.
  • Page 11 ManualCallPoint Jeweller user manual | Ajax Systems Support 07.11.23, 13:23 1. Sign in to the Ajax app 2. Select a hub. 3. Go to the Devices tab. Icon Value Jeweller Signal Strength displays the signal strength between the hub and the button. The recommended value is 2–3 bars.
  • Page 12 ManualCallPoint Jeweller user manual | Ajax Systems Support 07.11.23, 13:23 States The states include information about the device and its operating parameters. You can Tnd the states of ManualCallPoint in Ajax apps: 1. Sign in to the Ajax app 2. Select a hub.
  • Page 13 ManualCallPoint Jeweller user manual | Ajax Systems Support 07.11.23, 13:23 Jeweller Signal Strength Jeweller channel. The recommended value is 2–3 bars. Connection status on the Jeweller channel between the device and the hub or the range extender: Online — the device is connected to the hub or the range extender.
  • Page 14 ManualCallPoint Jeweller user manual | Ajax Systems Support 07.11.23, 13:23 Closed — the button is installed on SmartBracket mounting panel, and both the device enclosure and mounting panel remain uncompromised. Normal status. Learn more The button status. If the device is operating in the Fire Alarm mode: Alarm —...
  • Page 15 ManualCallPoint Jeweller user manual | Ajax Systems Support 07.11.23, 13:23 Status of the device’s permanent deactivation setting: No — the device operates in normal mode and transmits all events. Entirely — the device does not execute system commands, does not participate in automation...
  • Page 16 ManualCallPoint Jeweller user manual | Ajax Systems Support 07.11.23, 13:23 2. Select ManualCallPoint from the list. 3. Go to Settings by clicking on the icon. 4. Set the required parameters. 5. Click Back to save the new settings. Parameter Value Name Name of the device.
  • Page 17 ManualCallPoint Jeweller user manual | Ajax Systems Support 07.11.23, 13:23 the automation scenarios. User Manual Opens ManualCallPoint user manual. Allows the user to deactivate the device without removing it from the system. Three options are available: No — the device operates in normal mode and transmits all events.

  • Page 18: Functionality Testing

    Functionality testing The Ajax system offers several types of tests to assist in selecting the correct installation location for the devices. Tests do not start immediately. However, the waiting time does not exceed the duration of one “hub—device” polling interval. You can check and conTgure the polling interval in the hub settings (Hub →...

  • Page 19: Device Placement

    ManualCallPoint Jeweller user manual | Ajax Systems Support 07.11.23, 13:23 To run a test, in the Ajax app: 1. Select the required hub. 2. Go to the Devices tab. 3. Select ManualCallPoint from the list. 4. Go to Settings 5. Select Jeweller Signal Strength Test.
  • Page 20 ManualCallPoint Jeweller user manual | Ajax Systems Support 07.11.23, 13:23 ManualCallPoint should be located on escape routes, particularly at all storey exits and all exits to open air leading to an ultimate place of safety (even if these exits are not labeled as Tre exits).

  • Page 21: Installation

    ManualCallPoint Jeweller user manual | Ajax Systems Support 07.11.23, 13:23 Check the Jeweller signal strength before the Tnal installation. With a signal strength of one or zero bars, we do not guarantee stable operation of the device. Consider relocating the device, as adjusting its position even by 20 cm can signiTcantly improve the signal strength.
  • Page 22 ManualCallPoint Jeweller user manual | Ajax Systems Support 07.11.23, 13:23 do this, insert a special tool into the hole and slide the mounting plate down. 2. Fix SmartBracket mounting panel using double-sided tape or other temporary fasteners. Place the mounting panel on a vertical surface at a height of 1.4 meters.
  • Page 23 ManualCallPoint Jeweller user manual | Ajax Systems Support 07.11.23, 13:23 screws at all Txation points. One Txation point is in the perforated part of the mounting panel, above the tamper. If using alternative fasteners, ensure they do not damage or deform the mounting panel.

  • Page 24: Maintenance

    The pre-installed battery lasts up to 7 years with typical use (one press of one minute per week). Using it more often may reduce its lifespan. You can monitor the battery level at any time in the Ajax app. Technical speciRcations...

  • Page 25: Warranty

    ManualCallPoint Jeweller user manual | Ajax Systems Support 07.11.23, 13:23 Compliance with standards Warranty Warranty for the Limited Liability Company “Ajax Systems Manufacturing” products is valid for 2 years after the date of purchase. If you encounter any issues with the device’s functionality, we recommend contacting Ajax Technical Support Trst.
  • Page 26 ManualCallPoint Jeweller user manual | Ajax Systems Support 07.11.23, 13:23 about safe life. No spam Email Subscribe https://support.ajax.systems/en/manuals/manualcallpoint-jew…&_ga=2.192918121.2138058382.1699352683-737267677.1699352682 Страница 26 из 26...
