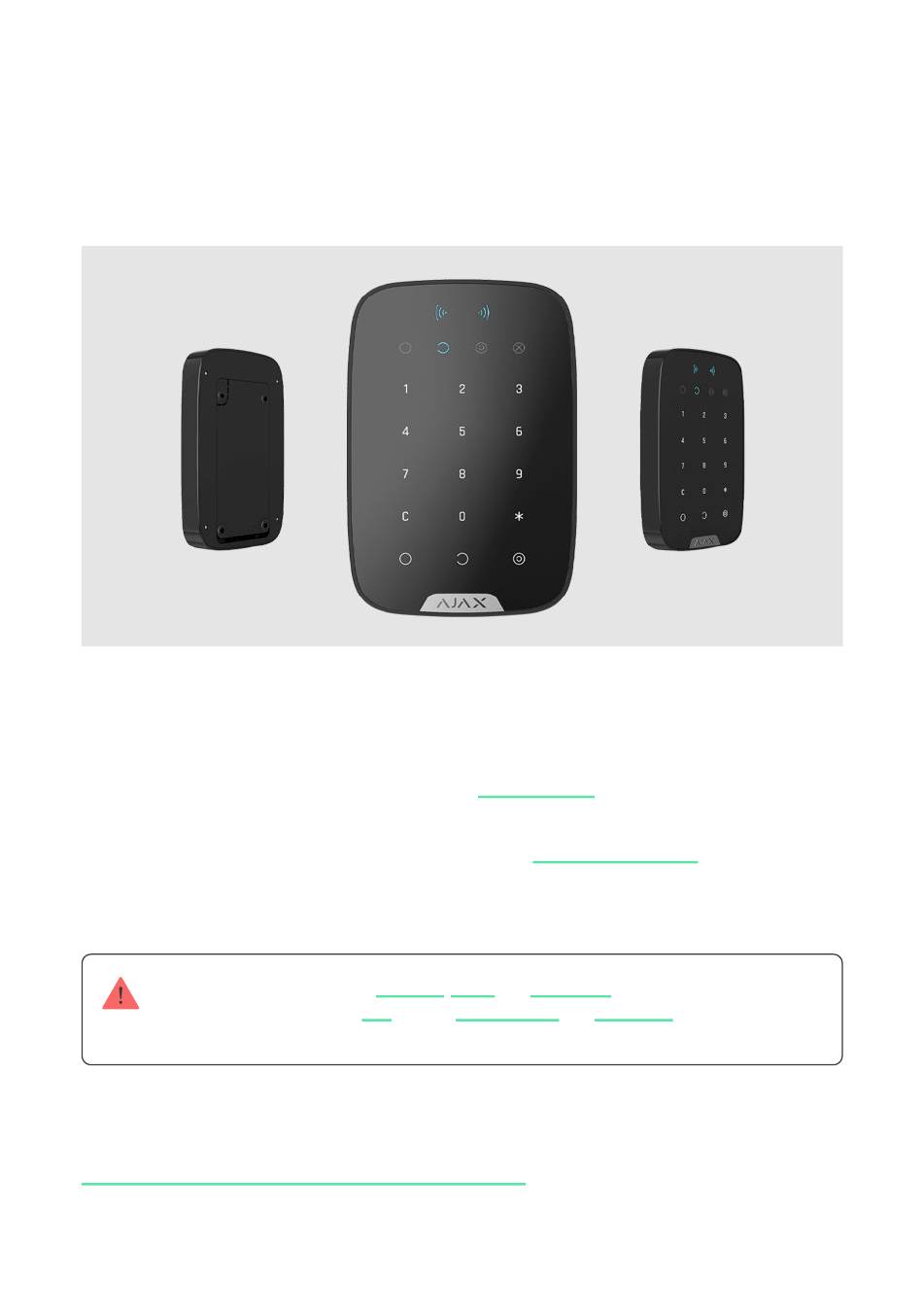

KeyPad Plus User Manual

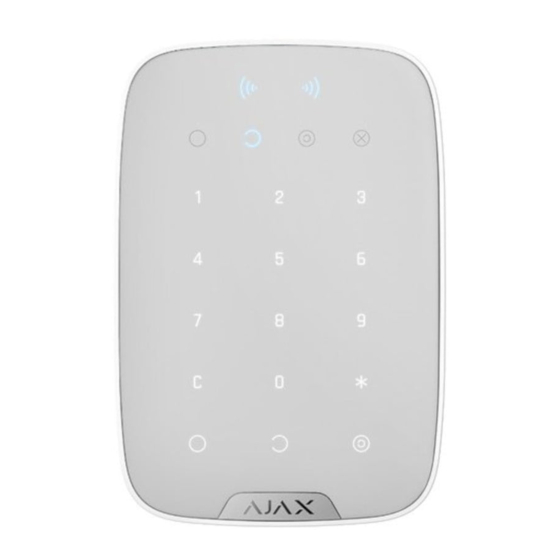

KeyPad Plus is a wireless touch keypad for managing the Ajax security system
with encrypted contactless cards and key fobs. Designed for indoor installation.
Supports "silent alarm" when entering the
Manages security modes using passwords and
current security mode with a LED light.
The keypad only works with
and higher. Connection to
modules is not supported.
The keypad operates as part of the Ajax security system by connecting via the
Jeweller secure radio communication protocol
range without obstacles is up to 1700 meters. The pre-installed battery life is up
to 4.5 years.
Buy KeyPad Plus keypad
Updated September 8, 2022
duress code
cards or key fobs
Hub Plus Hub 2
,
and
Hub 2 Plus
Hub
and the
ocBridge Plus
to the hub. The communication
.
. Indicates the
running OS Malevich 2.11
and
uartBridge
integration

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KeyPad Plus and is the answer not in the manual?

Questions and answers

Related Manuals for AJAX KeyPad Plus

Summary of Contents for AJAX KeyPad Plus

  • Page 1 KeyPad Plus User Manual Updated September 8, 2022 KeyPad Plus is a wireless touch keypad for managing the Ajax security system with encrypted contactless cards and key fobs. Designed for indoor installation. Supports “silent alarm” when entering the duress code...

  • Page 2: Functional Elements

    Functional elements 1. Armed indicator 2. Disarmed indicator Night Mode indicator 4. Malfunction indicator 5. Pass/Tag Reader 6. Numeric touch button box 7. Function button 8. Reset button 9. Arm button 10. Disarm button...

  • Page 3: Operating Principle

    Operating principle 00:00 00:04 KeyPad Plus arms and disarms the security of the entire facility or separate groups as well as allows activating the Night Mode. You can control the security modes with KeyPad Plus using: 1. Codes. The keypad supports general and personal codes, as well as arming without entering a code.
  • Page 4 Before entering a code or using Tag/Pass, you should activate (“wake up”) the KeyPad Plus by sliding your hand over the touch panel from top to bottom. When it is activated, the button backlight is enabled, and the keypad beeps.

  • Page 5: Function Button

    You can use the KeyPad Plus without ambient lighting as the keypad has a backlight. The pressing of the buttons is accompanied by a sound signal. The backlight brightness and keypad volume are adjustable in the settings. If you do...
  • Page 6 KeyPad Plus can participate in two-stage arming, but cannot be used as a second-stage device. The two-stage arming process using Tag or Pass is similar to arming using a personal or general code on the keypad. Learn more Event transmission to the monitoring station...
  • Page 7 The keypad only works with one hub. When connected to a new hub, the device stops sending commands to the old hub. Once added to a new hub, KeyPad Plus is not removed from the device list of the old hub. This must be done manually through the Ajax app.
  • Page 8 Pass/Tag reading is disabled in KeyPad Plus settings States The states include information about the device and its operating parameters. The states of KeyPad Plus can be found in the Ajax app: 1. Go to the Devices tab. 2. Select KeyPad Plus from the list.
  • Page 9 The battery charge level of the device. Two states are available: ОК Battery low When the batteries are discharged, the Ajax apps and the security company will receive Battery charge appropriate noti cations. After sending a low battery noti cation, the...
  • Page 10 Device identi er Device No. Number of the device loop (zone) Settings KeyPad Plus is con gured in the Ajax app: 1. Go to the Devices tab. 2. Select KeyPad Plus from the list. 3. Go to Settings by clicking on the gear icon...
  • Page 11 in the text of SMS and noti cations in the event feed Selecting the security group controlled by the device. You can select all groups or just one. Group Management Group mode The eld is displayed when the is enabled Selecting the method of arming/disarming: Keypad codes only User codes only...
  • Page 12 1 minute. Unauthorized Access Auto-Lock It is not possible to disarm the system via keypad during this time. You can unlock the keypad through the Ajax app Selecting the keypad lock period after wrong code attempts: 3 minutes...
  • Page 13 Easy armed mode change/Assigned group easy When enabled, changing the security mode with management Tag and Pass does not require con rmation by pressing the arm, disarm, or Night Mode button. The security mode is switched automatically. The option is available if Pass/Tag Reading is enabled in the keypad settings.
  • Page 14 Entry and exit delays are set in the corresponding detector settings, not in the keypad settings. Learn more about entry and exit delays Con guring codes Ajax security system allows you to set up a keypad code, as well as personal codes for users added to the hub. With the OS Malevich 2.13.1 update, we have also added the ability to create access codes for people who are not added to the hub.
  • Page 15 3. Set the keypad duress code you want. To set a personal code in the Ajax app 1. Go to the user pro le settings (Hub → Settings → Users → Your pro le settings). 2. Select Passcode Settings (User ID is also visible in this menu).
  • Page 16 The maximum number of connected passes/tags depends on the hub model. At the same time, the bound passes and tags do not affect the total limit of devices on the hub. Hub model Number of Tag or Pass devices Hub Plus Hub 2 Hub 2 Plus The procedure for connecting Tag, Pass, and third-party devices is the same.
  • Page 17 The device name is displayed in the noti cations and events feed KeyPad Plus is locked for the time speci ed in the settings if an incorrect code is entered three times in a row within 1 minute. The corresponding noti cations are sent to users and to the monitoring station of the security company.
  • Page 18 If a group is assigned to KeyPad Plus, you will not be able to manage Night Mode using a general code. In this case, Night Mode can only be managed using a personal code if the user has the appropriate rights.
  • Page 19 For example: 2 → * → 1234 → * → 5 → If a group is assigned to KeyPad Plus (in the Group Management eld in the keypad settings), you do not need to enter the group ID. To manage the security mode of this group, entering a personal code is su cient.
  • Page 20 What is Group ID Using a duress code A duress code allows you to simulate alarm deactivation. The Ajax app and sirens installed at the facility will not give the user away in this case, but the security company and other users will be warned about the incident. You can use both a personal and a general duress code.
  • Page 21 For example: 4567 → Security management using Tag or Pass 1. Activate the keypad by swiping your hand over it. KeyPad Plus will beep (if enabled in the settings) and turn on the backlight. 2. Bring Tag or Pass to the keypad pass/tag reader. It is marked with wave icons.
  • Page 22 Learn more Indication KeyPad Plus can report the current security mode, keystrokes, malfunctions, and its status by LED indication and sound. The current security mode is displayed by the backlight after the keypad is activated. The information about the current security mode is relevant even if the arming mode is changed by another device: a key fob, another keypad, or an app.

  • Page 23: Functionality Testing

    The Ajax security system provides several types of tests that help you make sure that installation points of devices are selected correctly. KeyPad Plus functionality tests do not start straight away but after no more than one hub-detector ping period (36 seconds when using the standard hub settings).

  • Page 24: Choosing A Location

    Choosing a location When holding KeyPad Plus in your hands or using it on a table, we cannot guarantee that the touch buttons will work properly. It is a good practice to install the keypad 1.3 to 1.5 meters above the oor for convenience.

  • Page 25: Installing The Keypad

    Outdoors. This could damage the device. Installing the keypad Prior to installing KeyPad Plus, be sure to select the optimal location following the requirements of this manual. 1. Attach the keypad to the surface with double-sided adhesive tape and carry out signal strength and attenuation tests.

  • Page 26: Maintenance

    SmartBracket plate so that the tamper responds to a detachment attempt. 5. Slide KeyPad Plus onto the mounting plate and tighten the mounting screw at the bottom of the body. The screw is needed for more reliable fastening and protection of the keypad from quick dismantling.

  • Page 27: Complete Set

    X (Malfunction) indicator smoothly lights up and goes out after each successful code entry. KeyPad Plus can work up to 2 months after the low battery signal. However, we recommend you replace the batteries immediately upon noti cation. It is advisable to use lithium batteries.
  • Page 28 Color Black White Installation Indoor only Keypad type Touch-sensitive Sensor type Capacitive DESFire EV1, EV2 Contactless access ISO14443-А (13.56 MHz) Tamper protection Yes. The keypad is locked for the time set in the Code guessing protection settings if an incorrect code is entered three times Yes.

  • Page 29: Warranty

    24 months Compliance with standards Warranty The warranty for the Limited Liability Company “Ajax Systems Manufacturing” products is valid for 2 years after purchase and does not extend to the bundled batteries. If the device does not function properly, we recommend that you rst contact the support service as half of the technical issues can be resolved remotely.
