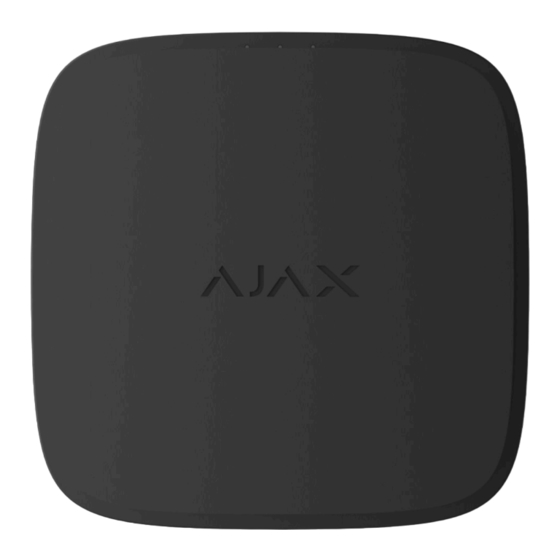

FireProtect 2 (Heat/Smoke) Jeweller user
FireProtect 2 (Heat/Smoke) Jeweller is a wireless re detector with a built-in
siren. Intended for indoor installation. Detects smoke and temperature rise. The
detector also can work without a hub.
There are two available modi cations: one with sealed batteries (has SB in the
name) that run for 10 years, and another with replaceable batteries (has RB in
the name) that run for up to 7 years.
FireProtect 2 (Heat/Smoke) detectors are compatible only with hubs on
2.14.1
or higher.
The detector operates as part of the Ajax system, communicating with the hub
via the
Jeweller
secure radio protocol. The hub communication range is up to
1,700 meters without obstacles.
manual
Updated March 5, 2024
OS Malevich

Advertisement

loading
Need help?

Need help?

Do you have a question about the FireProtect 2 and is the answer not in the manual?

Questions and answers

Related Manuals for AJAX FireProtect 2

Summary of Contents for AJAX FireProtect 2

  • Page 1 FireProtect 2 (Heat/Smoke) Jeweller user manual Updated March 5, 2024 FireProtect 2 (Heat/Smoke) Jeweller is a wireless re detector with a built-in siren. Intended for indoor installation. Detects smoke and temperature rise. The detector also can work without a hub.

  • Page 2: Functional Elements

    Buy FireProtect 2 (Heat/Smoke) Versions of the detector with other sensor combinations are also available. All Ajax re detectors are available here Functional elements 1. The front panel of the detector with a Test/Mute button . To activate the button, press the central part of the panel.

  • Page 3: Operating Principle

    Operating principle 00:00 00:12 FireProtect 2 (Heat/Smoke) is a wireless re detector designed for indoor installation. Available in two modi cations: The version with sealed batteries (the detector has SB in its name) ensures 10 years of autonomous operation. Once the batteries are discharged,...

  • Page 4: Smoke Sensor

    3 m from the detector). The detector is always active and reacts to a re during 24/7, regardless of the system’s security mode. FireProtect 2 is protected by two tampers. The rst tamper controls the removal of the detector from the SmartBracket mounting panel: the detector reacts with...
  • Page 5 +54 °C to +65 °C is detected. FireProtect 2 reports a temperature exceeding the threshold as soon as its value surpasses +64 °C. The detector reports a rapid temperature rise if the indicator increases by 10 °C within 1 minute.
  • Page 6 Alarm feature. This feature activates the built-in sirens of all re detectors in the system as soon as at least one of the re detectors has detected an alarm. Sirens of FireProtect 2 detectors are activated within 20 seconds after an alarm is detected. The sirens of...

  • Page 7: Adding To The System

    4. Make sure that the hub is on and has Internet access via Ethernet, Wi-Fi, and/or mobile network. You can do this in the Ajax app or by looking at the LED indicator of the hub: it should light up white or green.
  • Page 8 FireProtect 2 works with only one hub. When connected to a new hub, the detector stops transmitting data to the old hub. Once added to a new hub, FireProtect 2 is not removed from the list of devices of the old hub. This must be done manually in Ajax apps.
  • Page 9 FireProtect 2 detectors can be used autonomously without connecting to an Ajax hub. In this case, the detector noti es of re or smoke with only a built-in siren and LED indication . Users don’t receive noti cations on any...
  • Page 10 Alarm by: Also, you can mute the alarm by pressing smoke; Test/Mute The siren beeps in button rapid temperature or in the Ajax The red LED ashes time with the LED rise; app. continuously. indication. temperature The LED and sound...
  • Page 11 All malfunctions are displayed in the States detector Ajax apps. Fields with malfunctions are The siren beeps 2 The yellow LED highlighted in red. times in time with the Malfunction is ashes 2 times in a LED indication every detected.

  • Page 12: Functionality Testing

    The test allows you to check the status of the detector’s sensors. You can run it in two ways: by pressing the detector Test/Mute button and in Ajax apps. If the detector is in an alarm state, the self-test is not available.
  • Page 13 Testing at the place of installation Ajax system provides several tests to select the correct installation place of devices. Jeweller Signal Strength Test is available for FireProtect 2. The test determines the strength and stability of the signal at the intended location of the device.

  • Page 14: Devices Tab

    The default value is 36 seconds. You can change the detector ping interval in the Jeweller (or Jeweller/Fibra) menu in the hub settings. Icons The icons show some detector states. You can view them in Ajax app in the Devices tab.
  • Page 15 You can see FireProtect 2 (Heat/Smoke) states in Ajax apps. To access them: 1. Open the Ajax app. 2. Select a hub if you have several of them or if you are using the Ajax PRO app. 3. Go to the Devices tab.
  • Page 16 Parameter Meaning Air temperature in the room where FireProtect 2 is installed. Measured in Celsius or Fahrenheit degrees depending on the app settings. In the normal state, the temperature value is Temperature displayed in black. When the temperature rises, the eld is highlighted with red.
  • Page 17 How to replace batteries in FireProtect 2 RB (Heat/Smoke) The state of the detector’s tamper that responds to detachment of the device from the surface or opening of the enclosure: Open —...
  • Page 18 Learn more Firmware FireProtect 2 rmware version. ID (serial number) of FireProtect 2. Also available on the detector’s enclosure (under the Device ID mounting panel) below the QR code and on the packaging box.
  • Page 19 CMS with this number. Settings To change FireProtect 2 (Heat/Smoke) settings in the Ajax app: 1. Open the Ajax app. 2. Select the hub if you have several of them or if you are using the Ajax PRO 3.
  • Page 20 The recommended value is two or three bars. Learn more Runs a detector self-test. Smoke Sensor Self-test Learn more Opens FireProtect 2 User Manual in the Ajax User Guide app. Permanent Deactivation Allows to deactivate the device without removing it from the system. Three options are available: No —...
  • Page 21 Settings Service Fire Detectors Settings. 4. Disable the Battery Life Optimization toggle. 5. Click Back to save the settings. If the Battery Life Optimization feature is disabled: FireProtect 2 SB (Heat/Smoke) built-in battery life is 5 years (instead of 10).

  • Page 22: Selection Of Installation Place

    Selection of installation place The detector is designed for indoor installation only. The coverage area of one FireProtect 2 (Heat/Smoke) is 50 to 60 m², depending on the type of premises. The detector should be installed in every room. The detector is placed in the center of the ceiling at a distance of 30 cm from light xtures, chandeliers, or any other decorative objects that may interfere with alarm detection.

  • Page 23: Signal Strength

    Presence of barriers for radio signal passage between devices: oor slabs, walls, inter oor ceilings, large objects located in the premise. Consider the placement recommendations when designing the project of Ajax system for the object. The security system must be designed and installed by specialists.
  • Page 24 The Jeweller signal strength is determined by the ratio of the number of undelivered or corrupted data packets that are exchanged between the hub and the detector to expected ones within a certain period of time. Signal strength is indicated by the icon on the Devices tab: Three bars —...

  • Page 25: Installation

    For such premises, we recommend using a detector without a smoke sensor: FireProtect 2 (Heat/CO) 9. In very dusty areas or places with a lot of insects. Insects, dust, and other contaminants can settle on the smoke chamber lid and prevent re detection.
  • Page 26 Use double-sided adhesive tape for temporary xation only. The device xed by the adhesive tape can peel off the surface at any time, which can lead to damage if the device is dropped. 3. Run the Jeweller signal strength test. The recommended value is two or three bars.
  • Page 27 NEVER come back to the house on re. Malfunctions If FireProtect 2 malfunction is detected (for example, there is no connection with the hub), the malfunction counter is displayed in the device eld in the Ajax apps.

  • Page 28: Maintenance

    LED indication. FireProtect 2 devices connected to the Ajax hubs generally do not require routine testing. All connected devices are constantly monitored for possible Faults, Low battery, and EOL signals.

  • Page 29: Technical Speci Cations

    Warranty for the Limited Liability Company “Ajax Systems Manufacturing” products is valid for 2 years after the purchase. If the device does not function correctly, please contact the Ajax Technical Support rst. Iwe recommend that you rst contact the support service: in most cases, technical issues can be resolved remotely.
