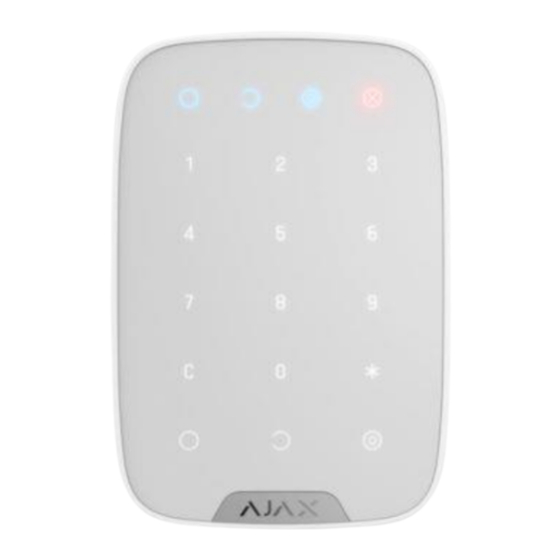

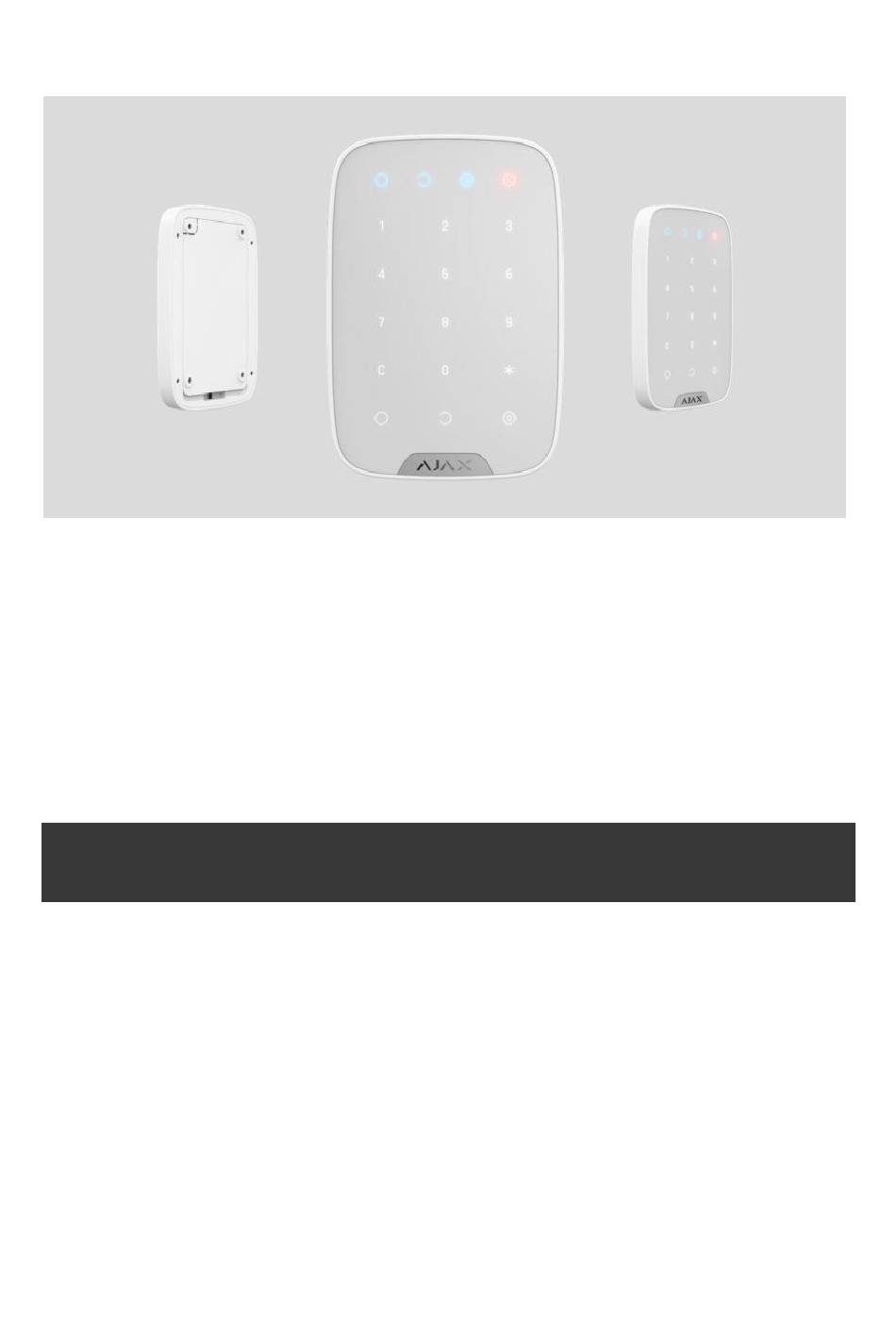

Key Pad is a wireless indoor touch-sensitive keyboard for managing the
Ajax security system. With this device, the user can arm and disarm the
system and see its security status. Key Pad is protected against attempts
to guess the passcode and can raise a silent alarm when the passcode is
entered under duress.
Connecting to the Ajax security system via a secured Jeweller radio
protocol, Key Pad communicates with the hub at a distance of up to 1,700
m in line of sight.
Key Pad operates with Ajax hubs only and does not support connecting via ocBridge
Plus or uartBridge integration modules.
The device is set up via the
for iOS, Android, macOS, and
Ajax apps
Windows.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Key Pad and is the answer not in the manual?

Questions and answers

Related Manuals for AJAX Key Pad

Summary of Contents for AJAX Key Pad

  • Page 1 Connecting to the Ajax security system via a secured Jeweller radio protocol, Key Pad communicates with the hub at a distance of up to 1,700 m in line of sight. Key Pad operates with Ajax hubs only and does not support connecting via ocBridge Plus or uartBridge integration modules.

  • Page 2: Functional Elements

    Functional elements 1. Armed mode indicator 2. Disarmed mode indicator 3. Night mode indicator 4. Malfunction indicator 5. The block of numerical buttons 6. “Clear” button 7. “Function” button 8. “Arm” button 9. “Disarm” button 10. “Night mode” button 11. Tamper button 12.

  • Page 3: Operating Principle

    If the battery is low, the backlight switches on at a minimum level, regardless of the settings. If you do not touch the keyboard for 4 seconds, Key Pad dims the backlight, and after another 12 seconds, the device switches to the sleep mode.
  • Page 4 Key Pad can notify a security company of the system being disarmed by force. The Duress Code — unlike the panic button — does not activate sirens. Key Pad and the app notify of successful disarming the system, but the security company receives an alarm.
  • Page 5 A request for connection to the hub is transmitted for a short time at the moment of switching on the device. If Key Pad failed to connect to the hub, switch it off for 5 seconds and retry. The connected device will appear in the app device list. Update of the device statuses in the list depends on the detector ping interval in the hub settings (the default value is 36 seconds).

  • Page 6: Selecting The Location

    If the device has low or unstable signal strength even after moving, use a ReX Radio signal range extender. Key Pad is designed for operation when fixed to the vertical surface. When using Key Pad in hands, we cannot guarantee successful operation of the...
  • Page 7 Jeweller Signal Strength Signal strength between the hub and Key Pad Connection Connection status between the hub and the Key Pad Battery Charge Battery level of the device The tamper mode of the device, which reacts to the detachment...
  • Page 8 Device name, can be edited Room Selecting the virtual room to which the device is assigned Arming/Disarming Permissions Selecting the security group to which Key Pad is assigned Selecting the way of verification for arming/disarming • Key Pad passcode only Access option •...
  • Page 9 Un pair Device Disconnects the device from the hub and deletes its settings Key Pad allows to set both general and personal passcodes for each user. To install a personal passcode: 1. Go to profile settings (Hub Settings -- Users -- Your profile settings) 2.

  • Page 10: Functionality Testing

    The double-sided adhesive tape may be only used for temporary attachment of Key Pad. The tape will run dry in course of time, which may result in the falling of the Key Pad and damage of the device.

  • Page 11: Complete Set

    Bracket, check the status of the tamper in the Ajax app and then check the fixing tightness of the panel. If the Key Pad is torn off from the surface or removed from the attachment panel, you will receive the notification.

  • Page 12: Warranty

    Certification requirements of EN 50131-1, EN 50131-3, EN 50131-5-3 Warranty Warranty for the “AJAX SYSTEMS MANUFACTURING” LIMITED LIABILITY COMPANY products is valid for 2 years after the purchase and does not apply to the pre-installed battery. If the device does not work correctly, you should first contact the support...
