Hub 2 (2G) / (4G) User Manual

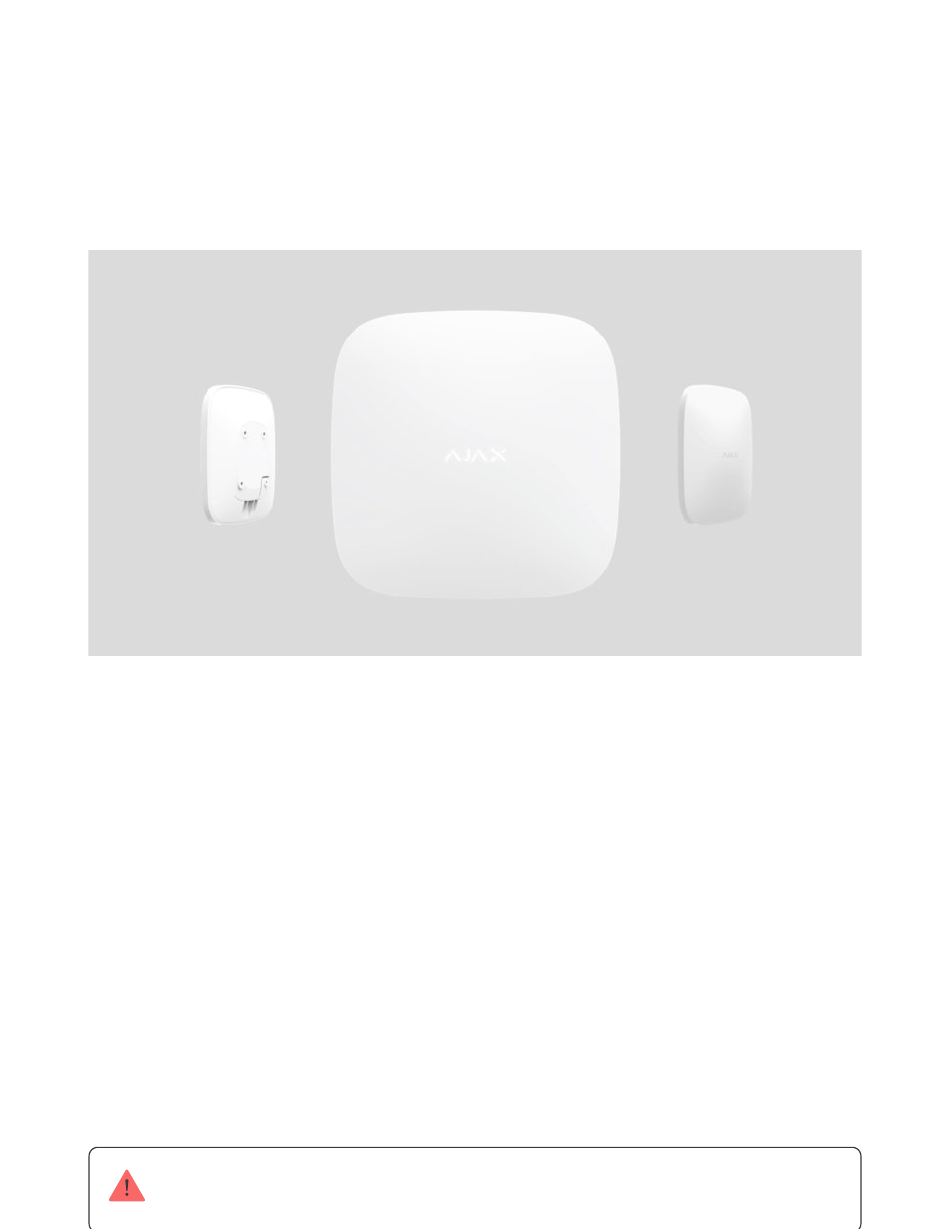

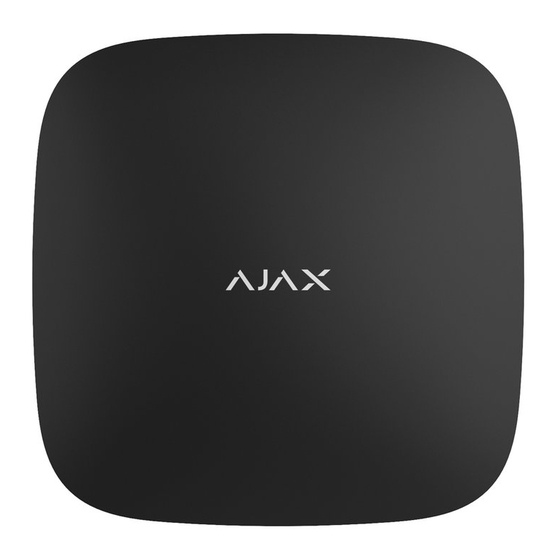

Hub 2 is a security system control panel that supports photo verification of alarms.
It controls the operation of all connected devices and interacts with the user and
the security company. The device is designed for indoor installation only.
The hub reports doors opening, breaking of windows, the threat of fire or flood, and
automates routine actions using scenarios. If outsiders enter the secure room, Hub
2 will send photos from MotionCam / MotionCam Outdoor motion detectors and
notify a security company patrol.
Hub 2 needs internet access to connect to the Ajax Cloud service. The control
panel has three communication channels: Ethernet and two SIM cards. The hub is
available in two versions: with 2G and 2G/3G/4G (LTE) modem.
Connect all communication channels to ensure a more reliable connection with Ajax Cloud
and secure against interruptions in the work of telecom operators.
