Hub 2 (2G) / (4G) User manual | Ajax Systems Support

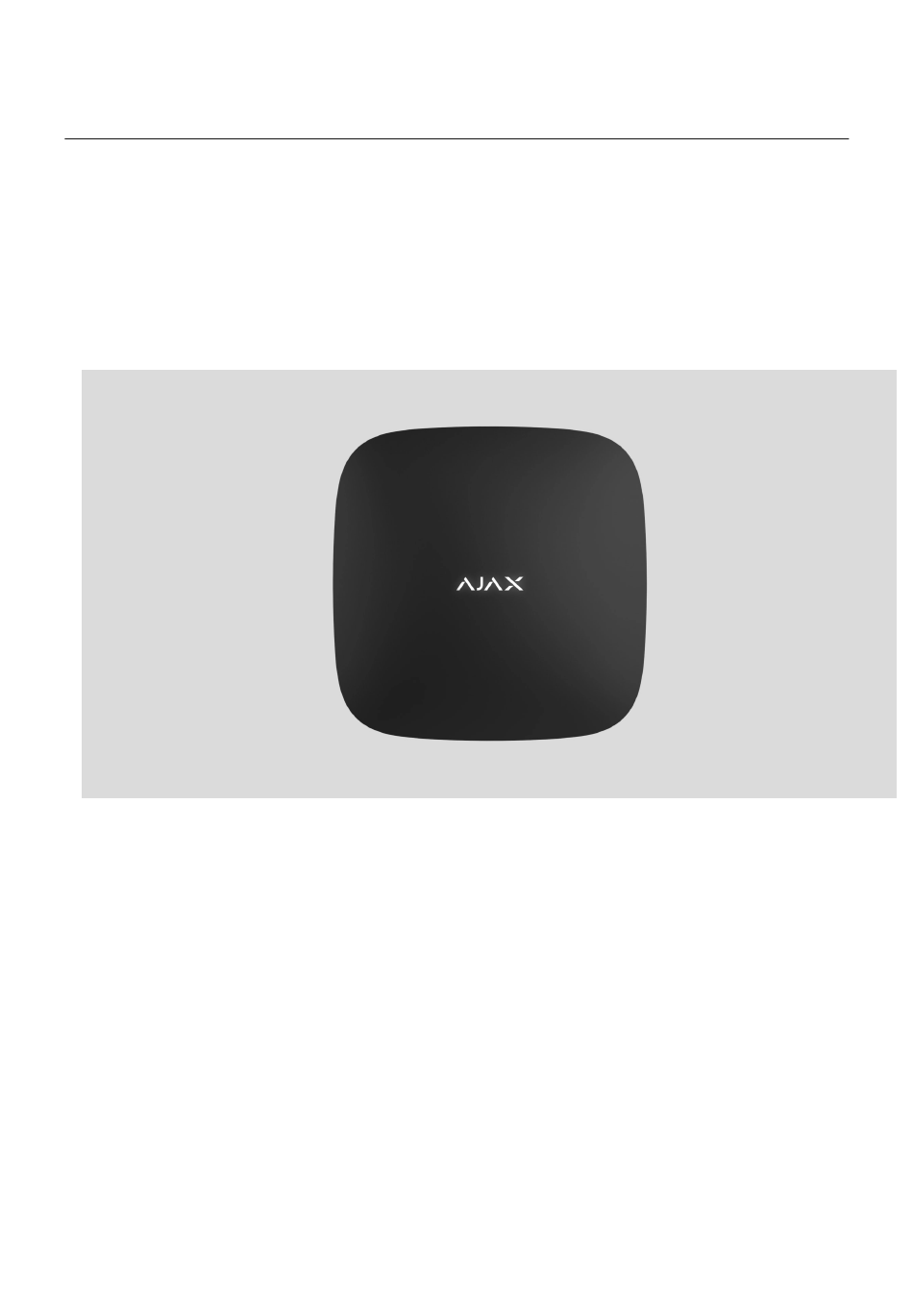

Hub 2 is a security system control panel that supports photo veri:cation of alarms. It controls
the operation of all connected devices and interacts with the user and the security company. The
device is designed for indoor installation only.
The hub reports doors opening, breaking of windows, the threat of :re or Cood, and automates
routine actions using scenarios. If outsiders enter the secure room, Hub 2 will send photos from
MotionCam / MotionCam Outdoor motion detectors and notify a security company patrol.
Hub 2 needs internet access to connect to the Ajax Cloud service. The control panel has three
communication channels: Ethernet and two SIM cards. The hub is available in two versions: with
2G and 2G/3G/4G (LTE) modem.
