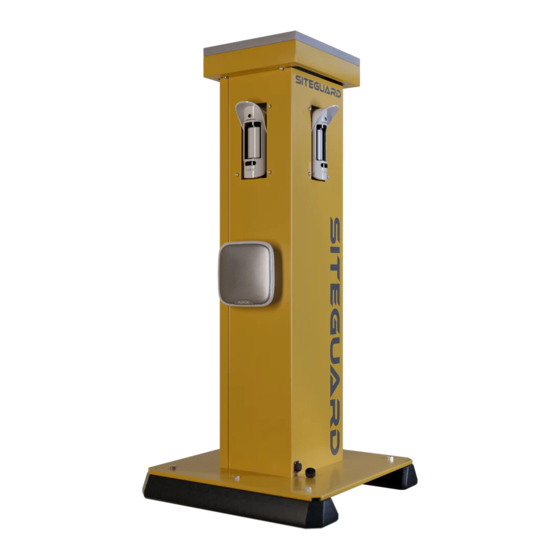

- Page 1 Assembly & Instructions Guide Version 1.0 www.siteguardltd.com...
-
Page 2: Table Of Contents
Contents Tower Parts List & Tools Advised Ajax Setup Guides Recommended Ajax Kit & Preparation Lid Removal Hub & Relay Installation Lid Refitting Battery Installation & Securing Device Installation www.siteguardltd.com... -
Page 3: Tower Parts List & Tools Advised
Tower parts list - Pre-assembled Tower (incl Charge Controller, Solar Panel, Power Loom) - Pre-terminated Hub Power Connector - Relay Power Connectors (Red +’ve Black –’ve) - 20 x M4 Screws (Siren & Motion Detector Mounting Screws) - 2 x M3 Screws (DoorProect S Plus Mounting Screws) Tools Advised - Torx TX30 BO screwdriver - Screwdrivers: PZ1, PZ2, PH1, PH2 - Medium flat blade screwdriver - Spanners: 10mm, 13mm, 17mm www.siteguardltd.com... -
Page 4: Ajax Setup Guides
Ajax Setup Guides General Guides Relay DoorProtect S Plus Click here to view > Click here to view > Click here to view > MotionCam Outdoor (PhOD) Hub 2 4G Click here to view > Click here to view > Recommended Ajax Kit Ajax Kit Preparation - AJAX Hub2 4G - Install sim card & set up AJAX Hub as per AJAX manuals - 12-24v PSU for Hub2/Hub2 Plus/ReX2 - Turn off connection via ethernet... -
Page 5: Lid Removal
(Diagram 1) - Remove metal lid & solar panel (unit will remain connected by charge cable) - Release 4 x securing screws from lid of IP containment box - Loosen cable gland to allow cables to move freely - Remove IP box lid ensuring cables are not stressed Diagram 1 Hub & Relay Installation - AJAX Hub to be positioned as per diagram 2; secured using predrilled holes & AJAX securing screws included w/ AJAX Hub - Plug pre-terminated power connecter to AJAX Hub - Match polarity on AJAX Relay connection (Red +’ve Black –‘ve) - Secure AJAX Relay w/ double sided pad included Diagram 2 www.siteguardltd.com... -
Page 6: Lid Refitting
Lid Refitting - Re-fit IP box lid ensuring no cables are stressed/trapped - Tighten cable gland - Re-fit metal lid & solar panel - Insert & tighten 4 x TX 30 BO screws & Nylon Washers Battery Installation & Securing 12v AGM/LiFePO4 Battery Required - ONLY connect battery once AJAX Hub & Relay are connected - Take off door panel side of tower by removing 8 x TX 30 BO screws & Nylon Washers - Install battery under retaining clamp & tighten wing nuts - Affix loom to terminals on battery (Observe polarity Red +’ve Black –‘ve) www.siteguardltd.com... -
Page 7: Device Installation
Device Installation - Drill 4 x 4mm dia. Holes to each detector mounting bracket; as per diagram 3 - Affix detector brackets to mounting points on each side & door panel of tower using included M4 screws; as per diagram 4 - Mount AJAX MotionCam Outdoor PhOD to each detector bracket - Insert tamper screw as provided w/ devices to bottom of each AJAX MotionCam Outdoor PhOD - Detector mounting bracket of door panel includes mounting points to affix AJAX DoorProtect Plus - Once all devices are secured, refit door panel & secure w/ 8 x TX 30 BO screws & Nylon Washers Diagram 3 Diagram 4 www.siteguardltd.com... - Page 8 0300 113 6232 sales@siteguardltd.com www.siteguardltd.com...
