Structure of a PLCnext Inline station

As an alternative to an Axioline F station, you can create a PLCnext Inline station using the
controller. To do so, you need the AXC F IL ADAPT Inline adapter terminal (Order
No. 1020304). You can directly align the Inline modules to the Inline adapter terminal.
2
1

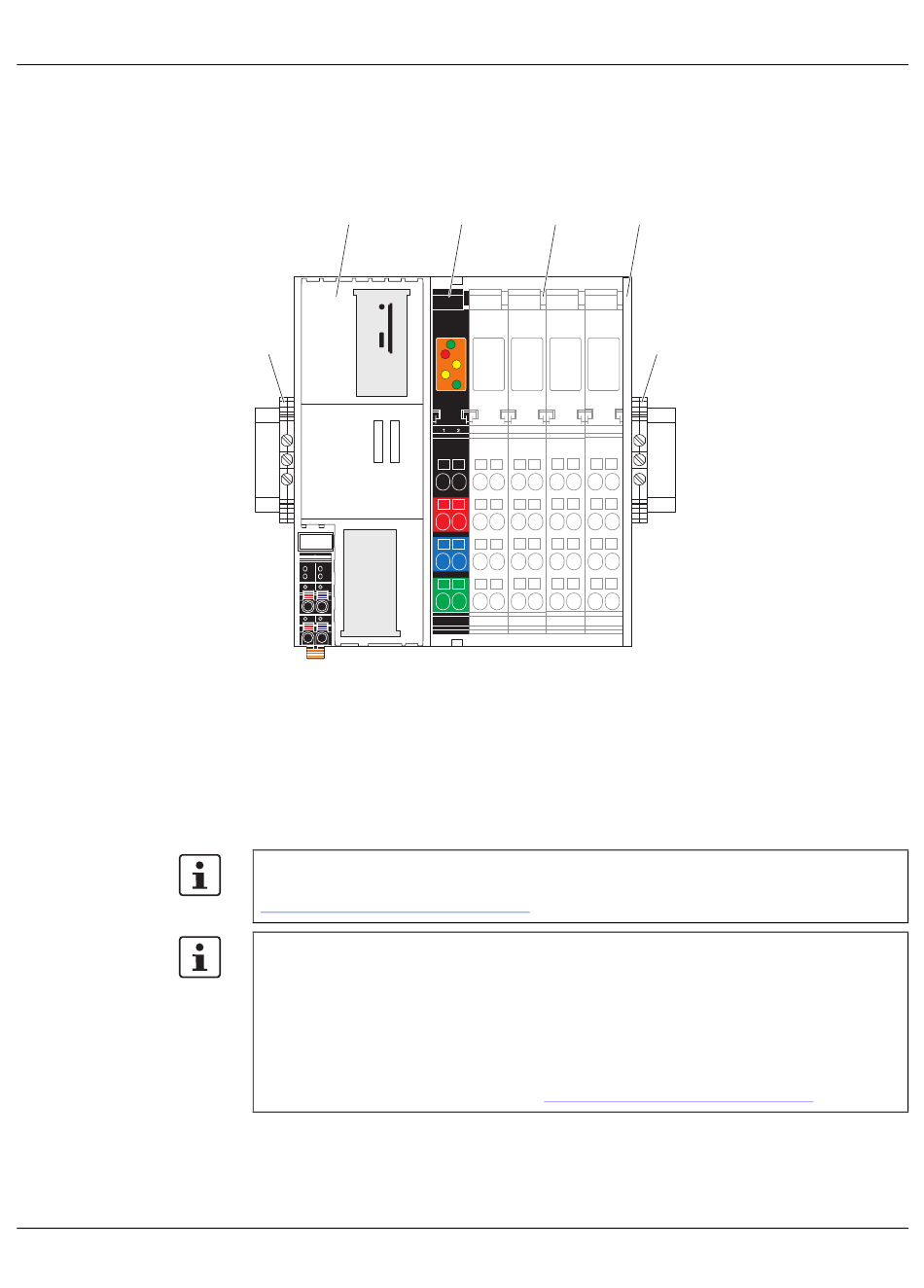

Figure 4-5 Example: Structure of a PLCnext Inline station with the AXC F 2152
1 End bracket (e.g., CLIPFIX 35-5, Order No. 3022276)
2 Controller
3 Inline adapter terminal
4 Inline terminals corresponding to the application
5 End plate (snapped onto the DIN rail as station end)
For mounting information, please refer to the packing slip and the data sheet for the Inline
adapter terminal. The documents can be downloaded at
phoenixcontact.net/product/1020304.
Various function blocks are available in PLCnext Engineer for INTERBUS configuration
and communication.
For more detailed information, please refer to the PLCnext Engineer online help.
For more detailed information on PCP and INTERBUS services, please refer to the follow-
ing user manuals: "Peripherals Communication Protocol (PCP)" (IBS SYS PCP G4 UM
E), "Firmware Services and Error Messages" (IBS SYS FW G4 UM E), and "For diagnos-
tics in Generation 4 controller boards" (IBS SYS DIAG DSC UM E).
The documents can be downloaded at phoenixcontact.net/product/1020304.
