3.8

Components of the controller

3.8.1

Connection and operating elements

AXC F 1152 and AXC F 2152
3
2
1

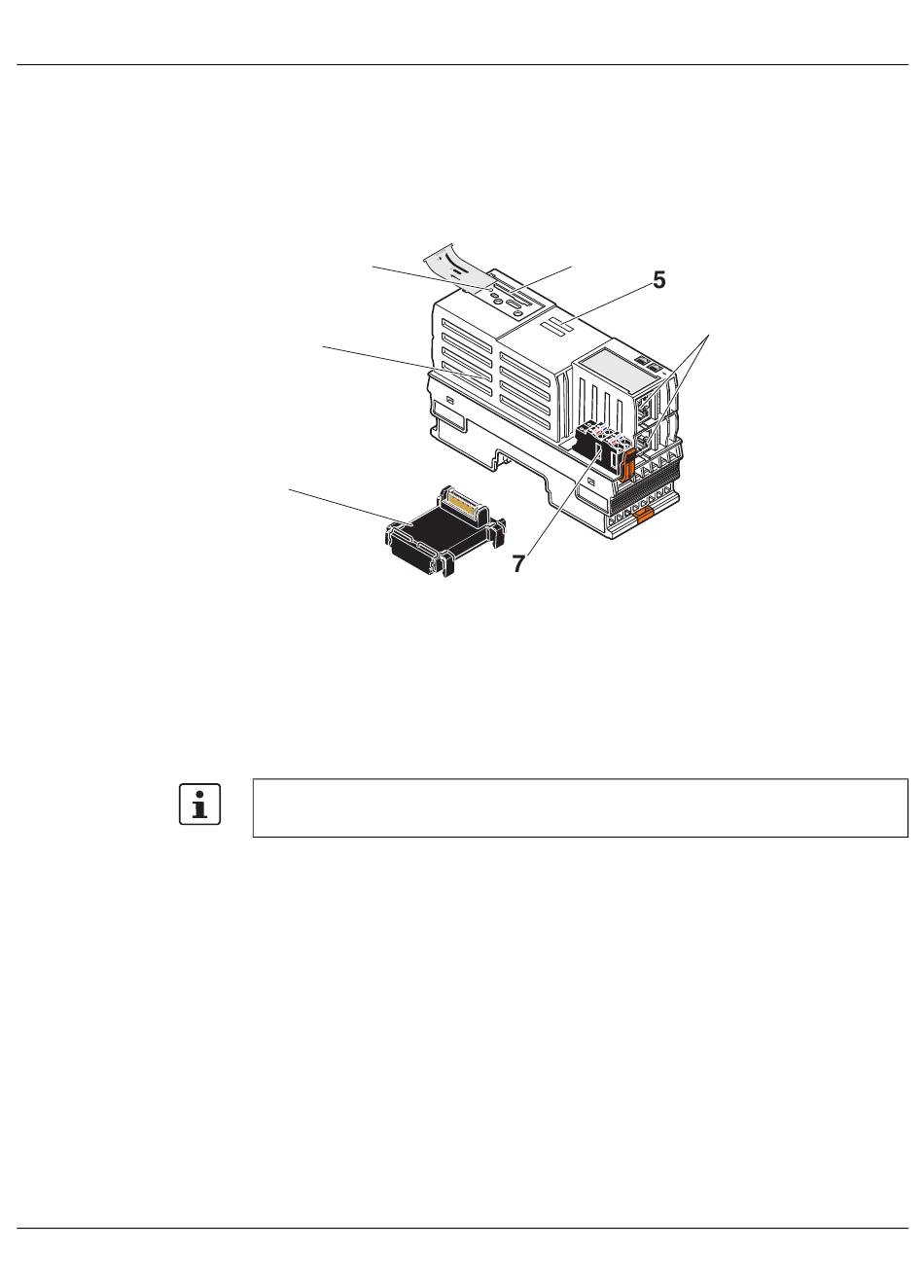

Figure 3-6 Connection and operating elements of the AXC F 1152 and AXC F 2152
controllers
The controller consists of the following components:
1 Bus base module
2 Electronics module
3 Reset button
4 SD card holder
The SD card is optional and not supplied as standard with the controller.
Please refer to the ordering data in
5 Diagnostic and status indicators
6 Ethernet interfaces (X1, X2)
7 Supply connector (connector for connecting the supply voltage (communications volt-
age U ))
L
4
Section "Ordering data" on page
6
91.
