As standard, mount the controller in a horizontal position on the DIN rail provided for that
purpose (A in Figure 4-2).
A

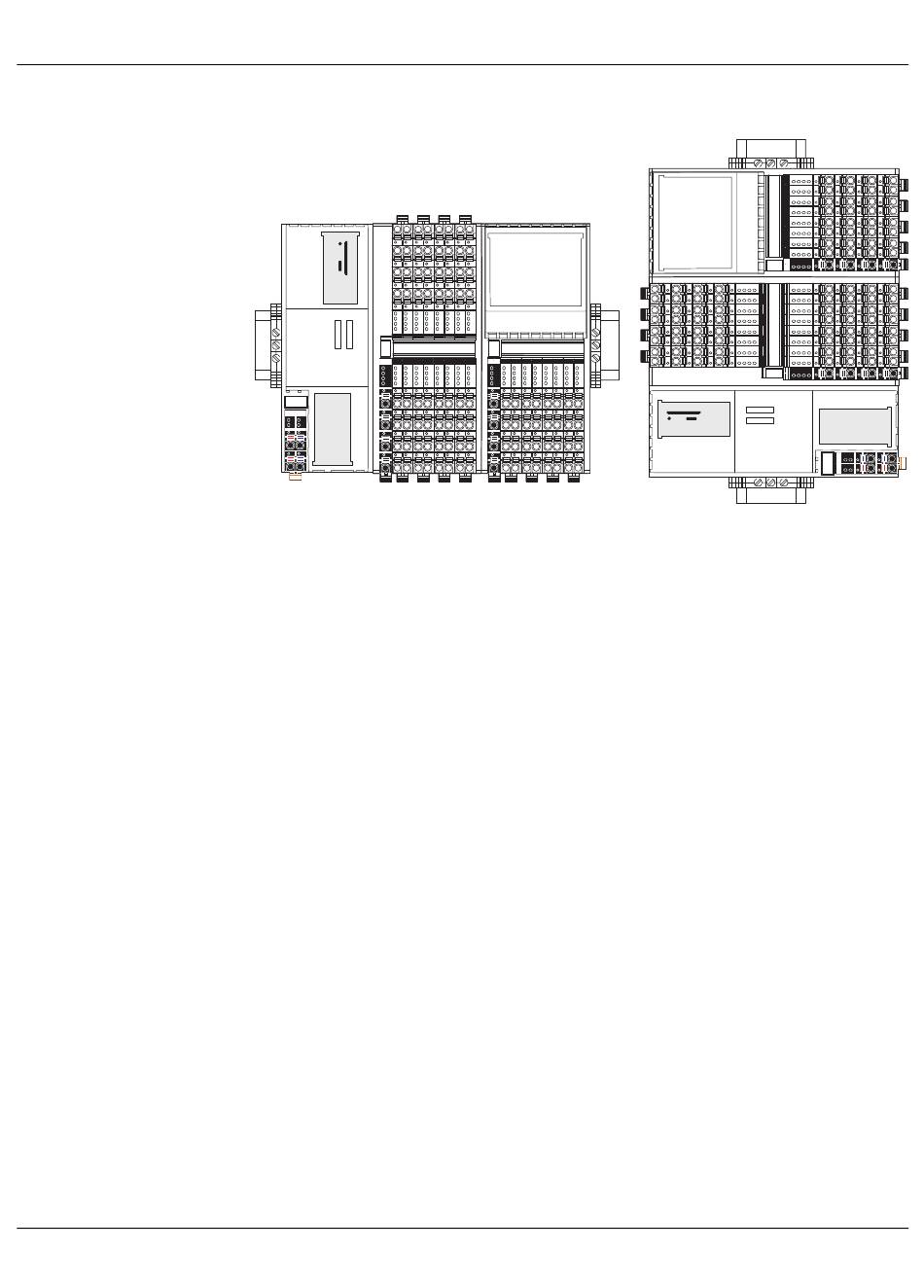

Figure 4-2 Example: AXC F 2152 in horizontal (A) and vertical (B) installation position
Note the ambient temperatures and any other special features (e.g., derating) specified in
the device/module-specific documentation for the Axioline F devices.
