Setup ■ Setting Up the Laser Marking Module
Note:
content edits.
Figure 34:
Note: Cup1 position must be set correctly by
3. Click System > Gantry > Laser tab.
- 58 -
b) Set LaserRemoteConnection=LOCAL to choose a laser control
method.
Load Marking Data
can show 'MarkingMate' Software for marking

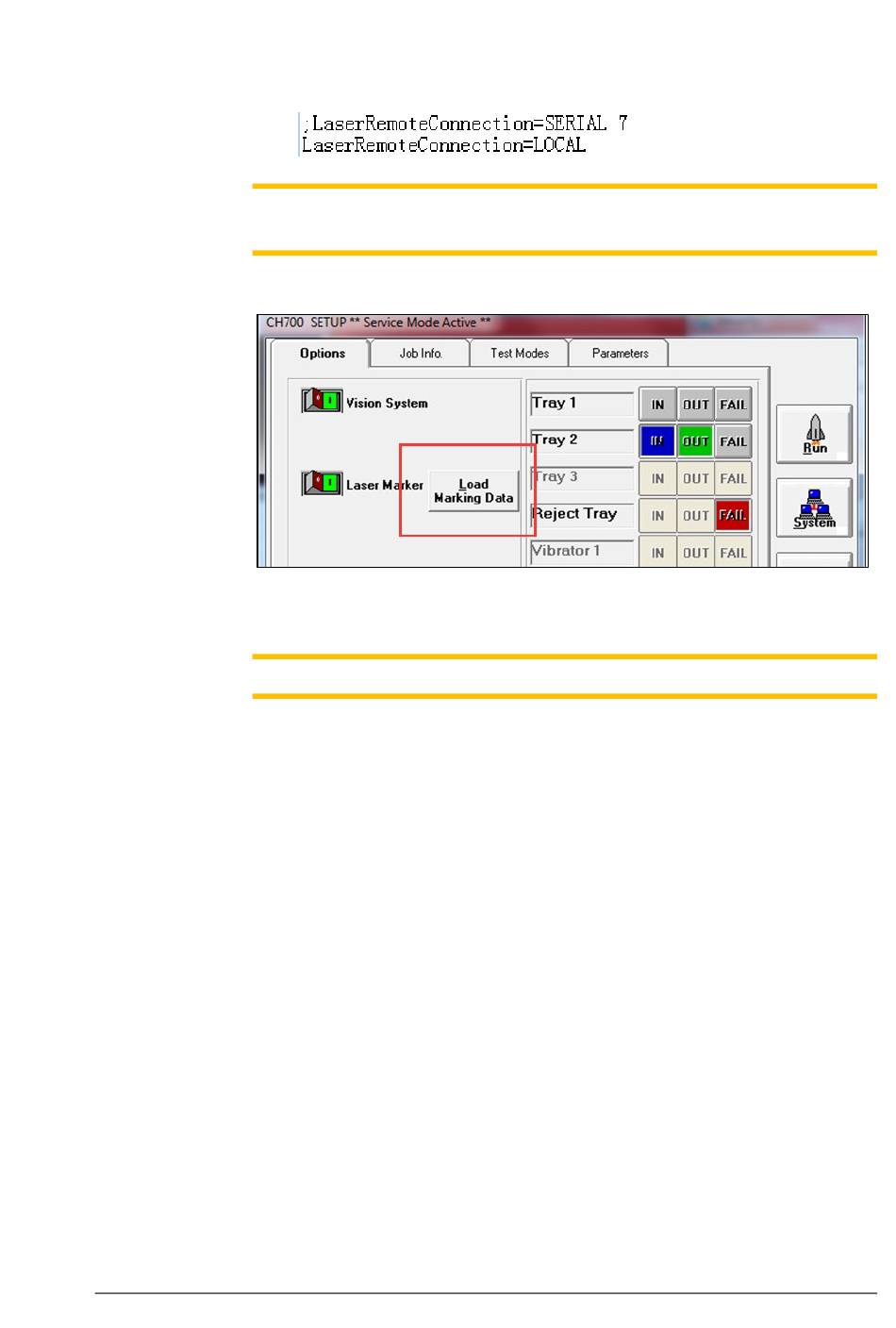

The Load Marking Data button in the CH700 Setup window
opens the MarkingMate Software.
a. Switch on Cup1 Vac then click Preview to confirm red light
aims at cup1. If not please run Markingmate to move the red
light to match cup1.
b. Switch on Cup2 Vac and click Preview and set red light for
cup2. Change Offset X / Offset Y to set distance between cup1
and cup2 in X/Y directions.
c. The Power Diff. field is the laser energy diference between cup1
and cup2; for example, if power of cup1 is set to 20%, here set
to 10% means power is 30% for cup2.
d. After setting the proper positions, click Laser Mark to check
real marking results.
MarkingMate
.
