Data I/O PSV5000 Owner's Manual page 138

Maintenance ■ Troubleshooting
When starting Collect PS Logs in AUTO Mode, only a progress screen is
shown on the lower left corner of the screen. All defaults are used and no
user action is required. A log zip file named with the current date and
time is saved in the Documents folder (C:\Documents, or
C:\Libraries\Documents.)
S
The Start App (non-auto) method is the Windows method using the
Windows Start menu; it offers some options. Click Window Start > All
Programs > Data IO > Collect PS Logs.
After starting Collect PS Logs from the Start menu, the main window
appears where you can select which items you need to collected.
1. Select or clear check boxes for files as desired.
- 134 -
•

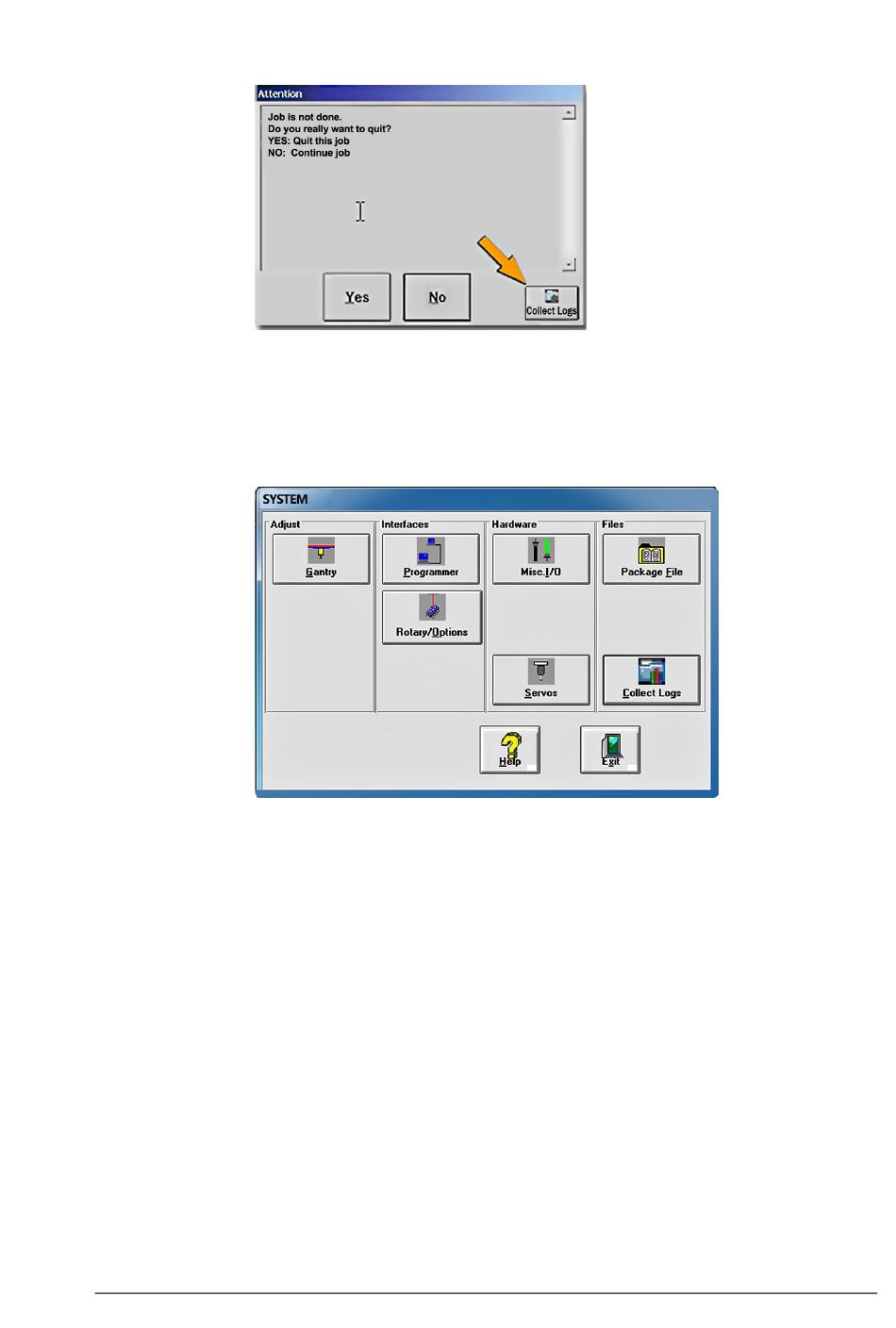

SECOND AUTO METHOD: The CH700 Software also displays a
button in the System window.
A M
TART PP ETHOD IN
W OS
INDOWS
Data I/O ■ 096-0465-001C
