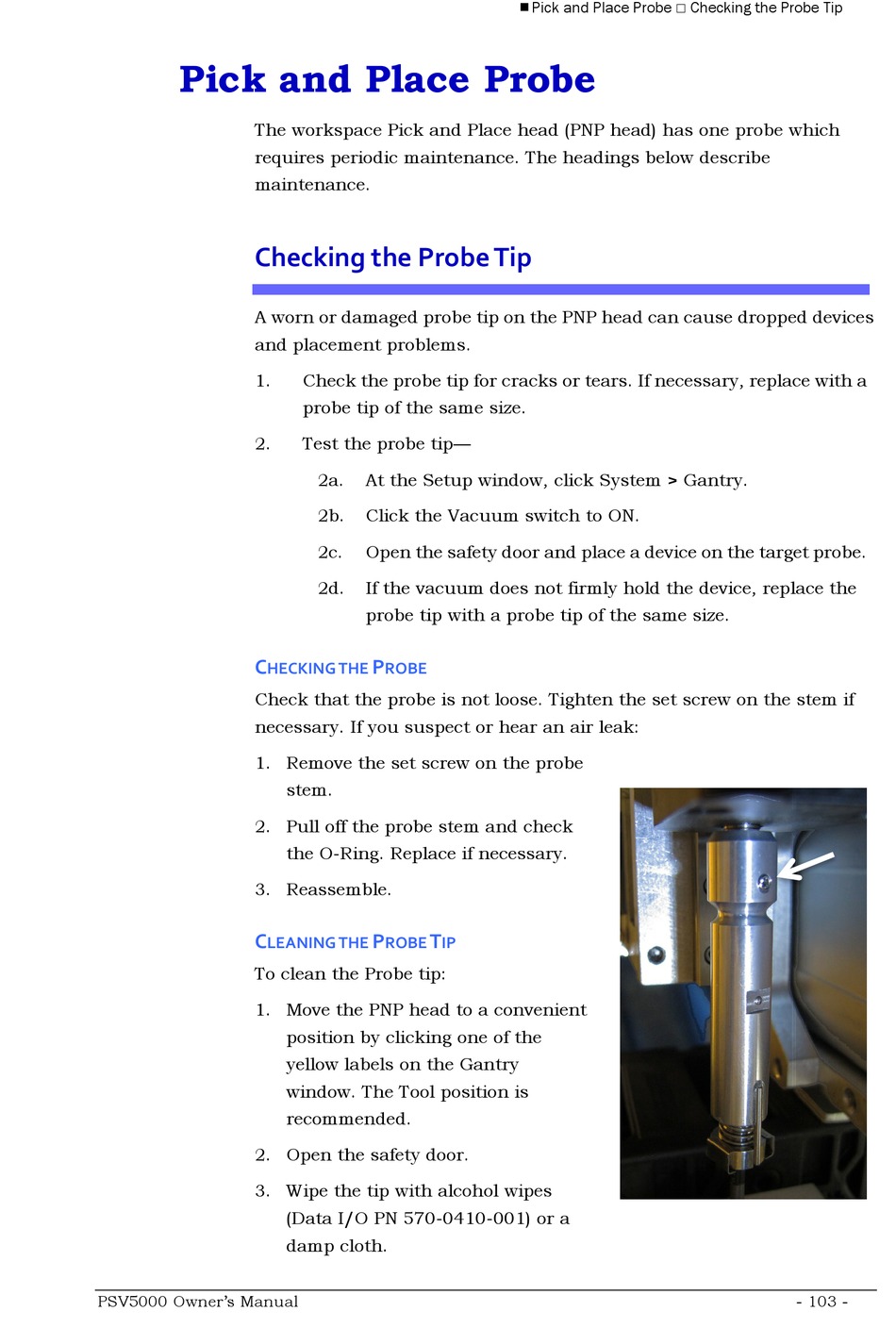

Data I/O PSV5000 Owner's Manual page 107

Pick and Place Probe
The workspace Pick and Place head (PNP head) has one probe which
requires periodic maintenance. The headings below describe
maintenance.
Checking the Probe Tip
A worn or damaged probe tip on the PNP head can cause dropped devices
and placement problems.
1.
2.
C
Check that the probe is not loose. Tighten the set screw on the stem if
necessary. If you suspect or hear an air leak:
1. Remove the set screw on the probe
2. Pull off the probe stem and check
3. Reassemble.
C
To clean the Probe tip:
1. Move the PNP head to a convenient
2. Open the safety door.
3. Wipe the tip with alcohol wipes
PSV5000 Owner's Manual
Check the probe tip for cracks or tears. If necessary, replace with a
probe tip of the same size.
Test the probe tip—
2a. At the Setup window, click System > Gantry.
2b. Click the Vacuum switch to ON.
2c. Open the safety door and place a device on the target probe.
2d. If the vacuum does not firmly hold the device, replace the
probe tip with a probe tip of the same size.
P
HECKING THE ROBE
stem.
the O-Ring. Replace if necessary.
P T
LEANING THE ROBE
position by clicking one of the
yellow labels on the Gantry
window. The Tool position is
recommended.
(Data I/O PN 570-0410-001) or a
damp cloth.
Pick and Place Probe  Checking the Probe Tip
IP
- 103 -
