Main regulator
and filter
Socket Opener
Pressure Control
Programmer Power
Toggle (up is ON)
Air Connection
If there is low air
pressure the monitor
may display a message
reading No air.
PSV5000 Owner's Manual

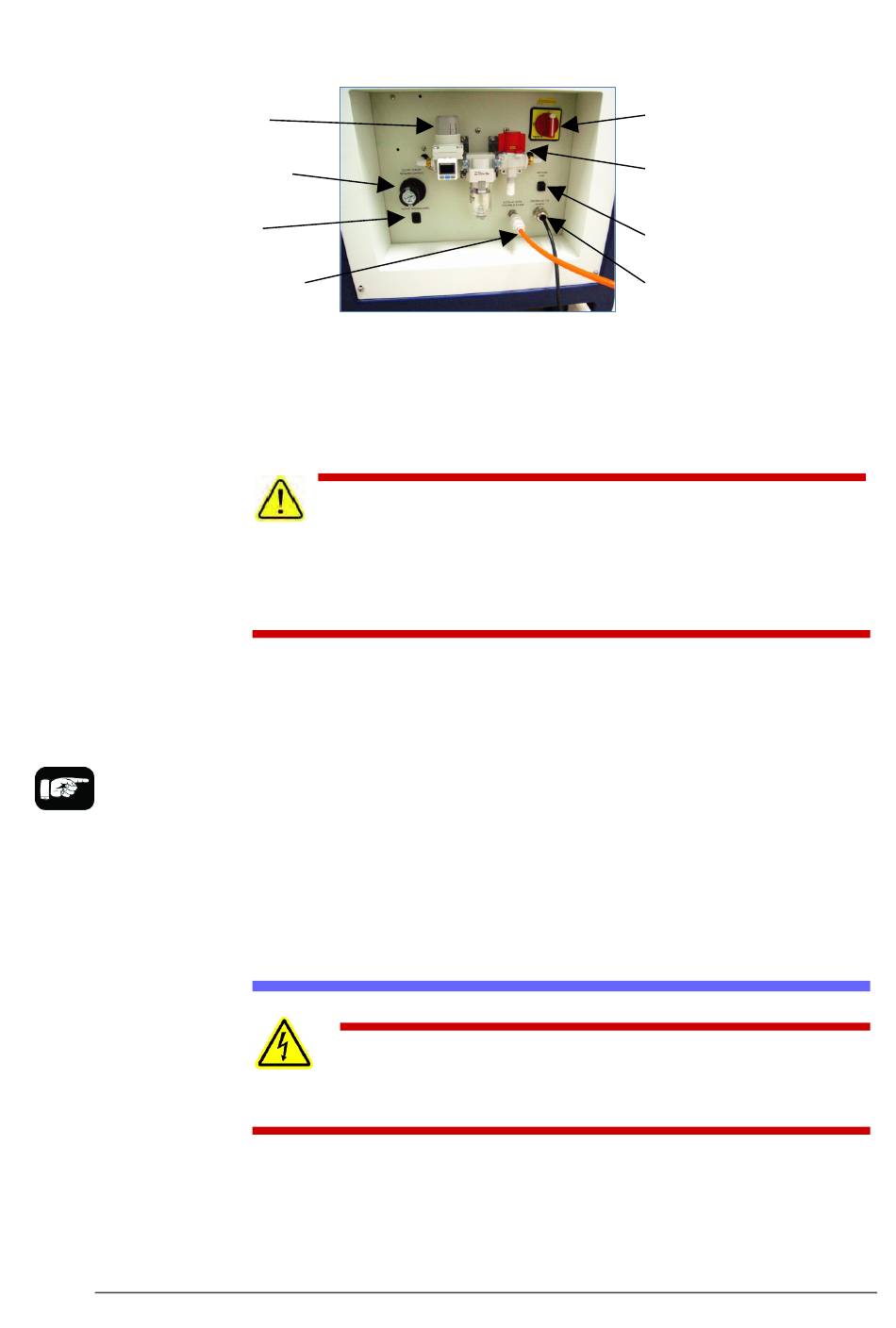

Figure 16: Power Panel on the back of the machine.
Connect air to PSV5000 at the main regulator and filter. See
above for the location of the external air line connection.
CAUTION: Possible air system damage! Oil, excessive moisture, or
poorly filtered air will obstruct the system's internal air pathways,
affect performance, and void the warranty related to air system failure. If oil or
excessive moisture is detected, contact Data I/O Customer Support or a local
Data I/O approved service representative.
M A P G
AIN IR RESSURE
The main pressure regulator is set at the factory, but can be changed
manually. See Connecting Air on page
When air pressure is within range, the regulator readout is green. If air
pressure is above or below the acceptable range, the readout displays red.
If it is red (out of range), contact Data I/O Support or a qualified service
technician. The upper and lower limits cannot be changed without the
password.
Connecting Electrical Power
WARNING: Electric shock hazard! Personal injury could be
caused from high leakage electrical current from the main power cable. An
Earth (ground) connection is essential before connecting power.
Required power is provided through a supplied 3-wire power cable with
one end terminated in an electrical plug as required by the customer's
facility. For power specifications, see PSV5000 Specifications on page 18.
For cable location see Figure 35.
■ Machine Installation □ Connecting Electrical Power
AUGE
34
Main Power Switch
(Lockout capable)
Air Shut-off
valve
Ethernet
connection
Power Cable (does not
disconnect here)
for the factory setting.
the figure
