power OFF for safety unless otherwise directed.
4. Open the front safety door and mark the wire connectors at the two
5. For access, unplug the two wire connectors (just marked) by pulling
6. With a flat screwdriver, unscrew the knurled fastener on the
7. Remove the filter housing and ensure that the O-Ring doesn't fall.
8. Remove the filter from the housing. It should be white or nearly
Figure 65:
Reinstall in reverse order and plug the two wire connector back in at the
same location.
V
There is a silencer in the vacuum generator block at the PNP head. To
inspect or replace the silencer:
1. Finish a job if one is running.
2. Use the Gantry window to move the PNP head to an accessible
PSV5000 Owner's Manual
Pick and Place Probe  Vacuum Generator Filters and Silencers
WARNING: Shock hazard! Opening the safety doors stops
motion of the gantry only. It does not remove electrical power
from the machine or any optional equipment. Turn the main
vacuum pressure switches on the right side of the head for returning
them to the correct location.
them out. See Figure 66: below.
underside of the nearest filter housing. See the figure below.
white. If dirty or clogged, replace with new filter (Data I/O PN
294-0219-001). See the figure below.

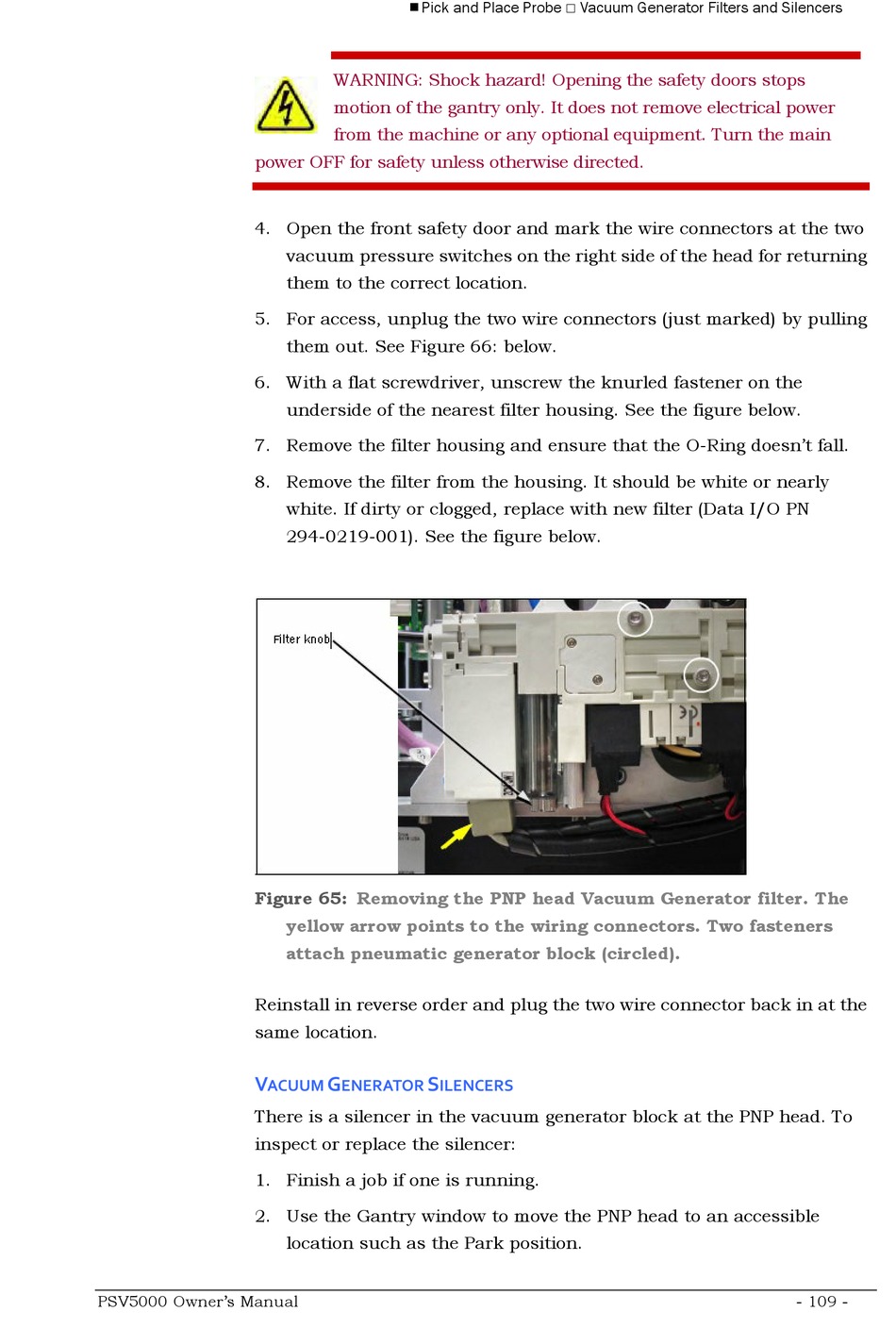

Removing the PNP head Vacuum Generator filter. The
yellow arrow points to the wiring connectors. Two fasteners
attach pneumatic generator block (circled).
G S
ACUUM ENERATOR
location such as the Park position.
ILENCERS
