Introduction ■ System Description
System Description
Safety Systems
The PSV5000 System moves devices from input media through a
programming and optional marking process to output media for delivery
to the next phase of the production process. The machine includes a
grounding connection to prevent static electricity (ESD).
The PSV5000 System has several safety systems to prevent personal
injury and system damage. These systems include E-Stops and safety
doors. If your system has a Laser Marking Module, it comes with a fume
extractor.

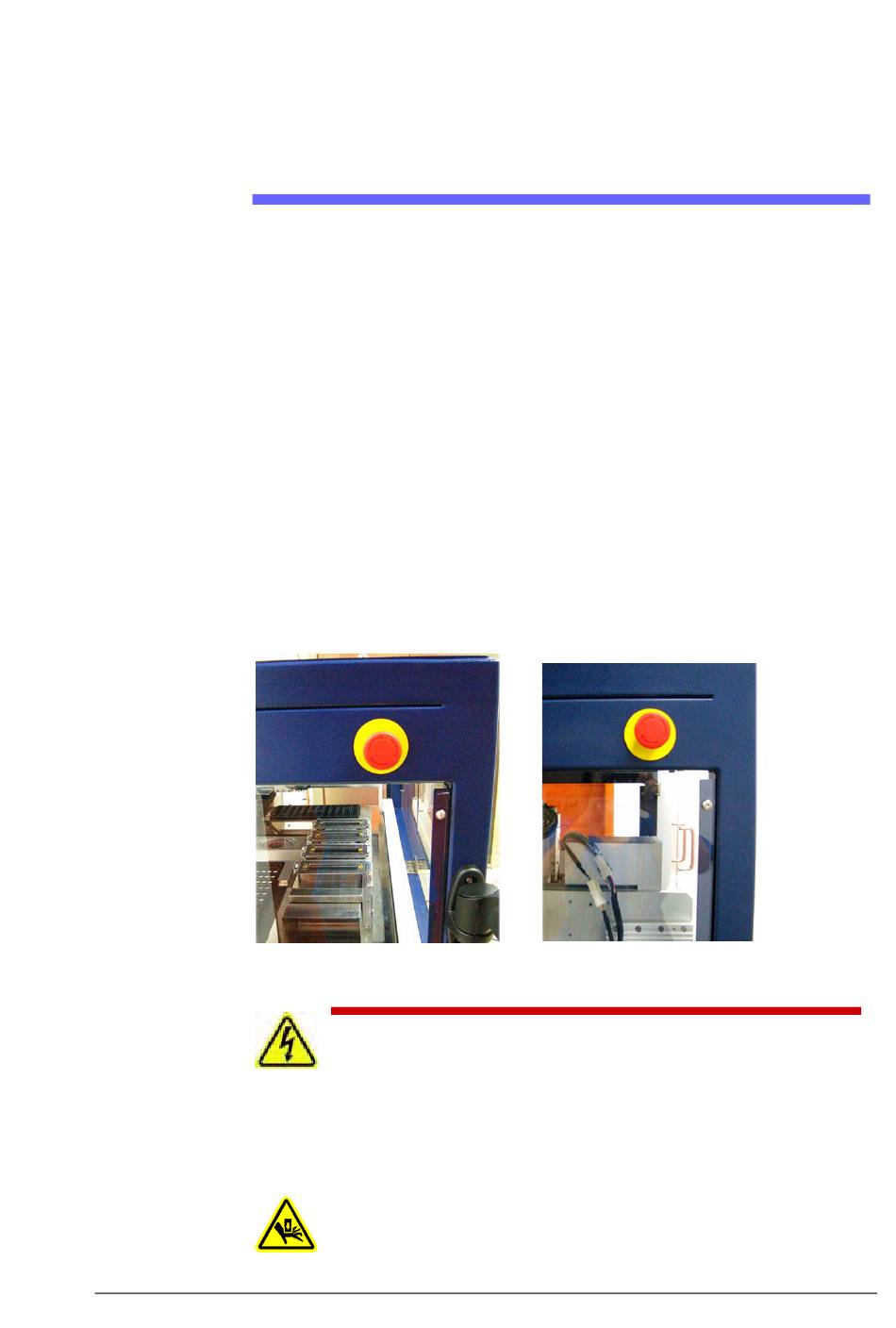

E
Two large, red Emergency Stop buttons are located near the top of the
PSV5000 System, one on either side of the machine. When an E-Stop
button is pressed, the gantry stops moving immediately. See caution
notice below.
Figure 3:
Laser Marking Module. It does not remove electrical power from PSV5000
or any optional equipment installed. Turn the main power OFF before
opening metal doors.
- 12 -
S (E-S
MERGENCY TOP
Left Side
Two Emergency Stop (E-Stop) buttons.
WARNING: Shock hazard! Pressing an E-Stop button removes
power from the motion controller (gantry) only, and power off the
WARNING: Pinch hazard! The E-Stop does not shut off air.
) B
TOP UTTONS
Right Side
Data I/O ■ 096-0465-001C
