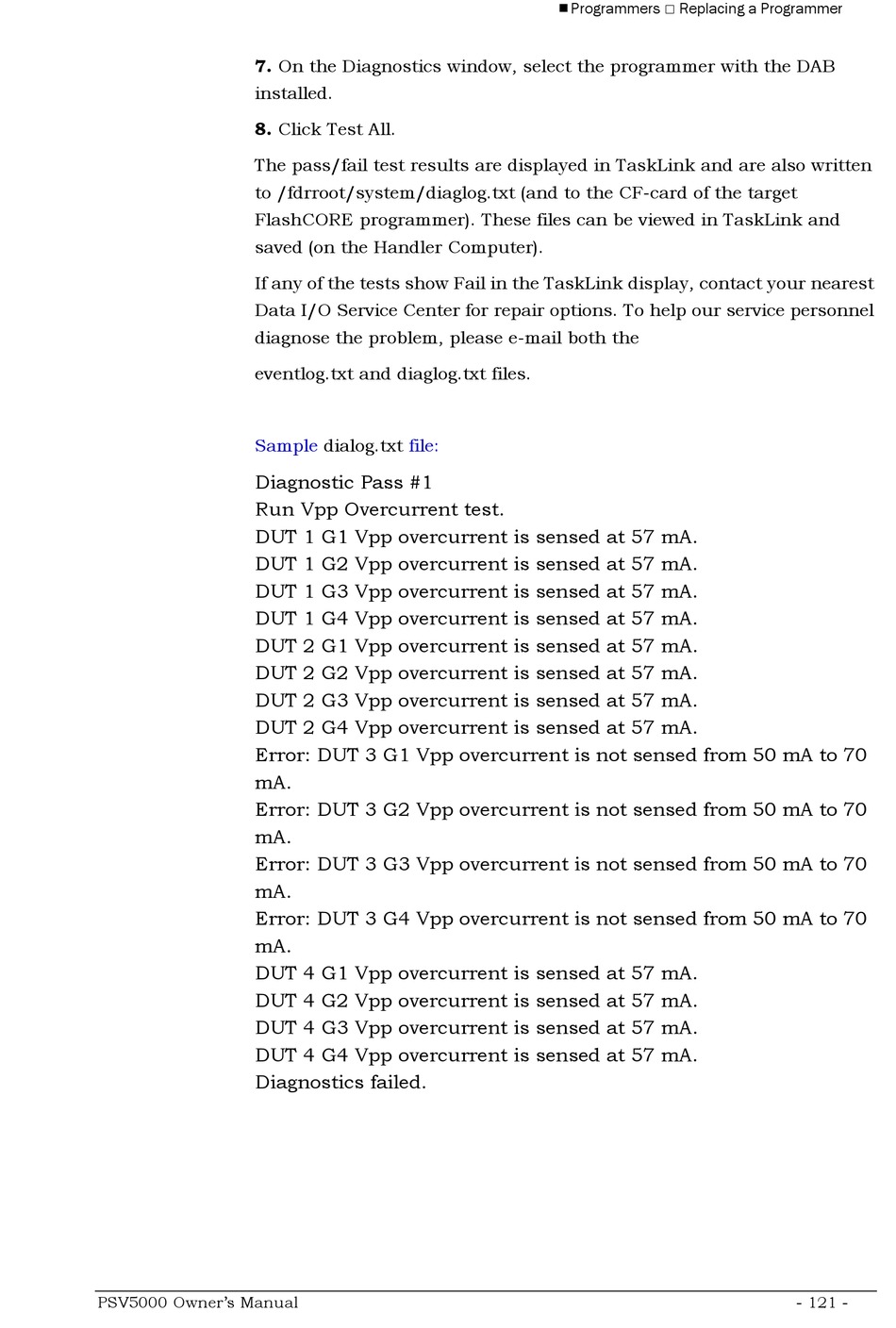

Programmers  Replacing a Programmer
7. On the Diagnostics window, select the programmer with the DAB
installed.
8. Click Test All.
The pass/fail test results are displayed in TaskLink and are also written
to /fdrroot/system/diaglog.txt (and to the CF-card of the target
FlashCORE programmer). These files can be viewed in TaskLink and
saved (on the Handler Computer).
If any of the tests show Fail in the TaskLink display, contact your nearest
Data I/O Service Center for repair options. To help our service personnel
diagnose the problem, please e-mail both the
eventlog.txt and diaglog.txt files.
Sample dialog.txt file:
Diagnostic Pass #1
Run Vpp Overcurrent test.
DUT 1 G1 Vpp overcurrent is sensed at 57 mA.
DUT 1 G2 Vpp overcurrent is sensed at 57 mA.
DUT 1 G3 Vpp overcurrent is sensed at 57 mA.
DUT 1 G4 Vpp overcurrent is sensed at 57 mA.
DUT 2 G1 Vpp overcurrent is sensed at 57 mA.
DUT 2 G2 Vpp overcurrent is sensed at 57 mA.
DUT 2 G3 Vpp overcurrent is sensed at 57 mA.
DUT 2 G4 Vpp overcurrent is sensed at 57 mA.
Error: DUT 3 G1 Vpp overcurrent is not sensed from 50 mA to 70
mA.
Error: DUT 3 G2 Vpp overcurrent is not sensed from 50 mA to 70
mA.
Error: DUT 3 G3 Vpp overcurrent is not sensed from 50 mA to 70
mA.
Error: DUT 3 G4 Vpp overcurrent is not sensed from 50 mA to 70
mA.
DUT 4 G1 Vpp overcurrent is sensed at 57 mA.
DUT 4 G2 Vpp overcurrent is sensed at 57 mA.
DUT 4 G3 Vpp overcurrent is sensed at 57 mA.
DUT 4 G4 Vpp overcurrent is sensed at 57 mA.
Diagnostics failed.
