Data I/O PSV5000 Owner's Manual page 147

9. Inspect the PSA seal rollers for build up of grime from the cover tape.
O-rings

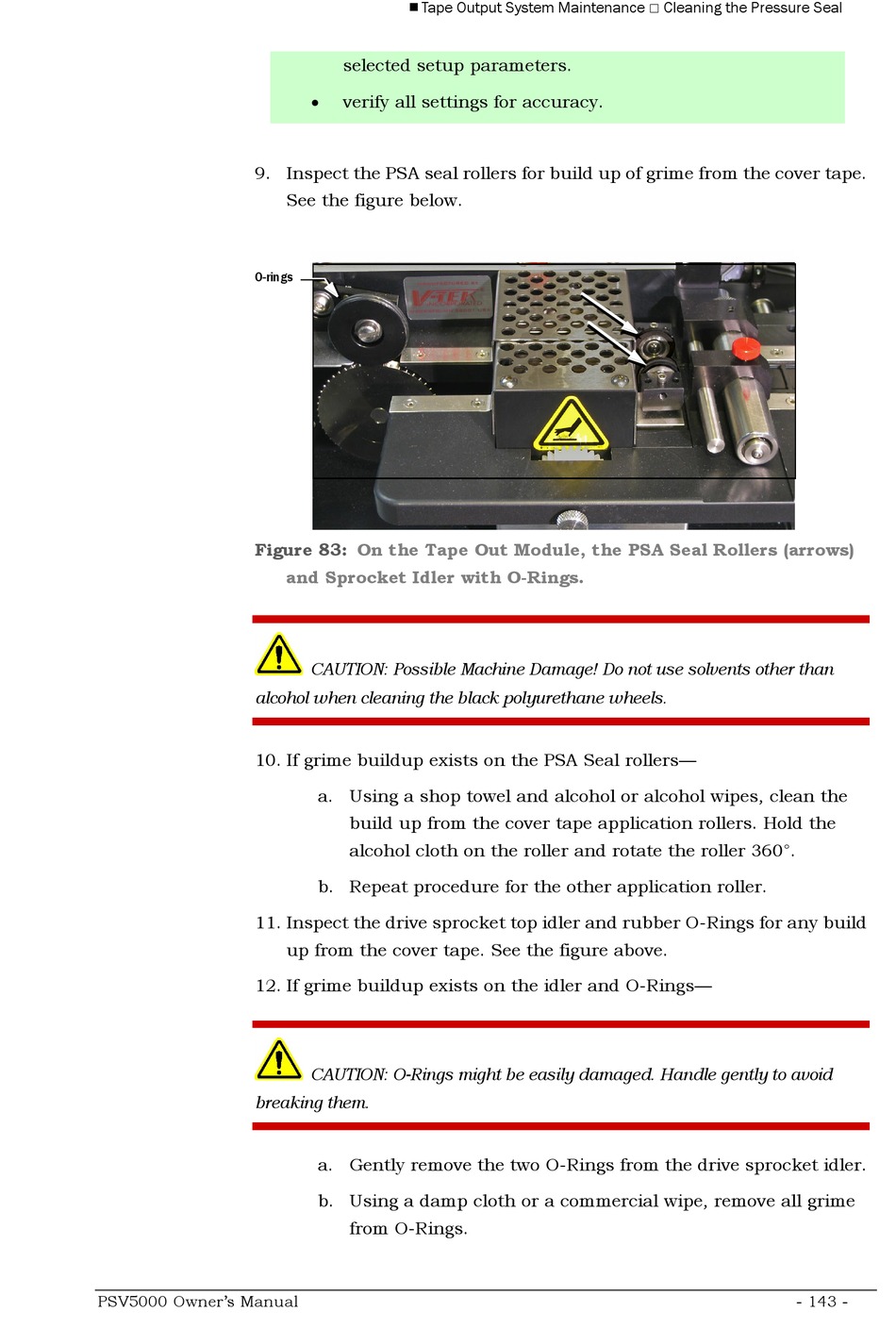

Figure 83:
alcohol when cleaning the black polyurethane wheels.
10. If grime buildup exists on the PSA Seal rollers—
11. Inspect the drive sprocket top idler and rubber O-Rings for any build
12. If grime buildup exists on the idler and O-Rings—
breaking them.
PSV5000 Owner's Manual
Tape Output System Maintenance  Cleaning the Pressure Seal
selected setup parameters.
•
verify all settings for accuracy.
See the figure below.
On the Tape Out Module, the PSA Seal Rollers (arrows)
and Sprocket Idler with O-Rings.
CAUTION: Possible Machine Damage! Do not use solvents other than
a. Using a shop towel and alcohol or alcohol wipes, clean the
build up from the cover tape application rollers. Hold the
alcohol cloth on the roller and rotate the roller 360°.
b. Repeat procedure for the other application roller.
up from the cover tape. See the figure above.
CAUTION: O-Rings might be easily damaged. Handle gently to avoid
a. Gently remove the two O-Rings from the drive sprocket idler.
b. Using a damp cloth or a commercial wipe, remove all grime
from O-Rings.
- 143 -
