running. A job must be finished before turning OFF compressed air or electrical
power. Wait for the gantry to park before turning OFF.
1. If a job is running, Pause or Finish it.
2. On the Power Panel, rotate the valve clockwise to turn OFF the input

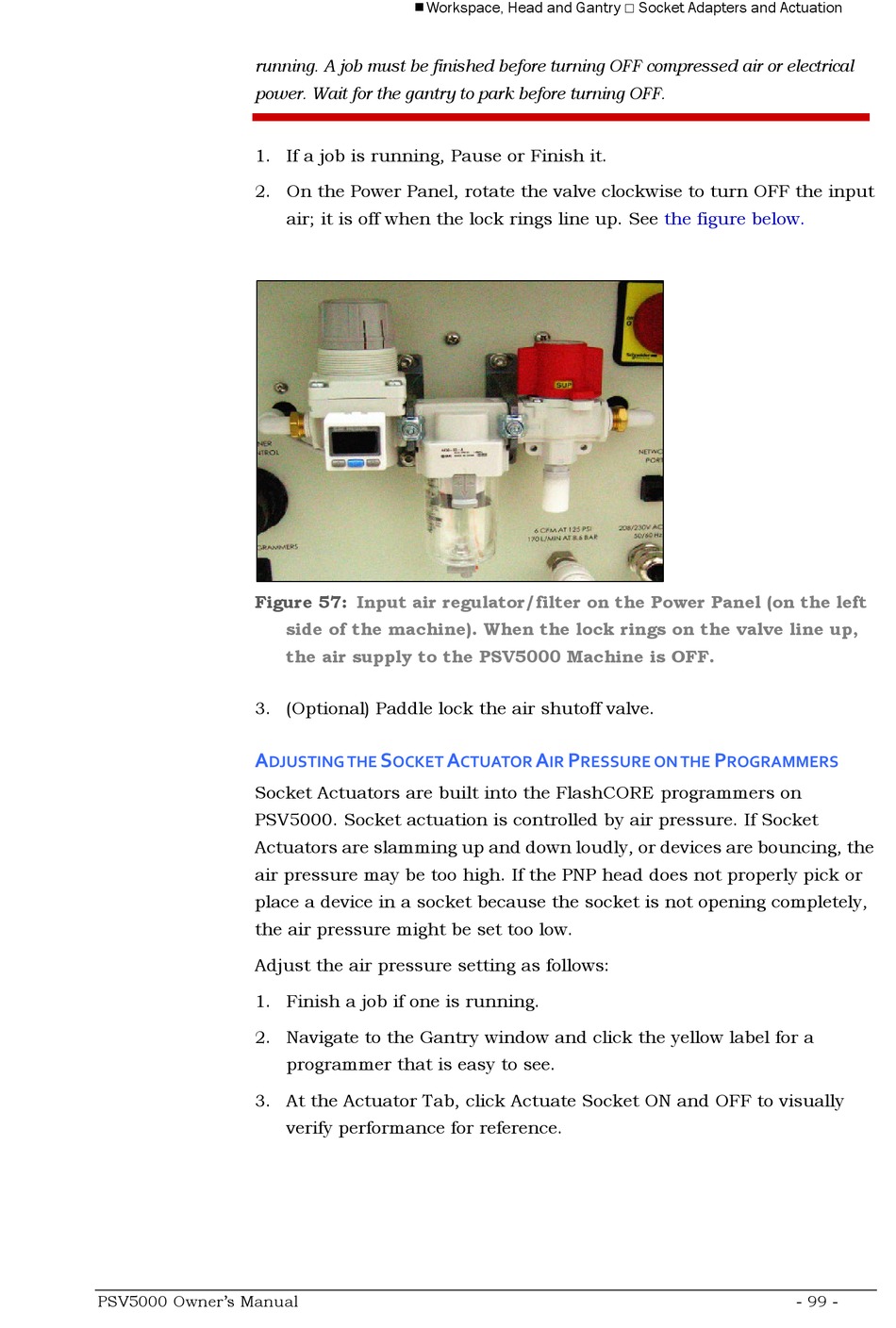

Figure 57:
3. (Optional) Paddle lock the air shutoff valve.
A
Socket Actuators are built into the FlashCORE programmers on
PSV5000. Socket actuation is controlled by air pressure. If Socket
Actuators are slamming up and down loudly, or devices are bouncing, the
air pressure may be too high. If the PNP head does not properly pick or
place a device in a socket because the socket is not opening completely,
the air pressure might be set too low.
Adjust the air pressure setting as follows:
1. Finish a job if one is running.
2. Navigate to the Gantry window and click the yellow label for a
3. At the Actuator Tab, click Actuate Socket ON and OFF to visually
PSV5000 Owner's Manual
Workspace, Head and Gantry  Socket Adapters and Actuation
air; it is off when the lock rings line up. See
Input air regulator/filter on the Power Panel (on the left
side of the machine). When the lock rings on the valve line up,
the air supply to the PSV5000 Machine is OFF.
S
DJUSTING THE OCKET
programmer that is easy to see.
verify performance for reference.
A A P
CTUATOR IR RESSURE ON THE
the figure below.
P
ROGRAMMERS
- 99 -
