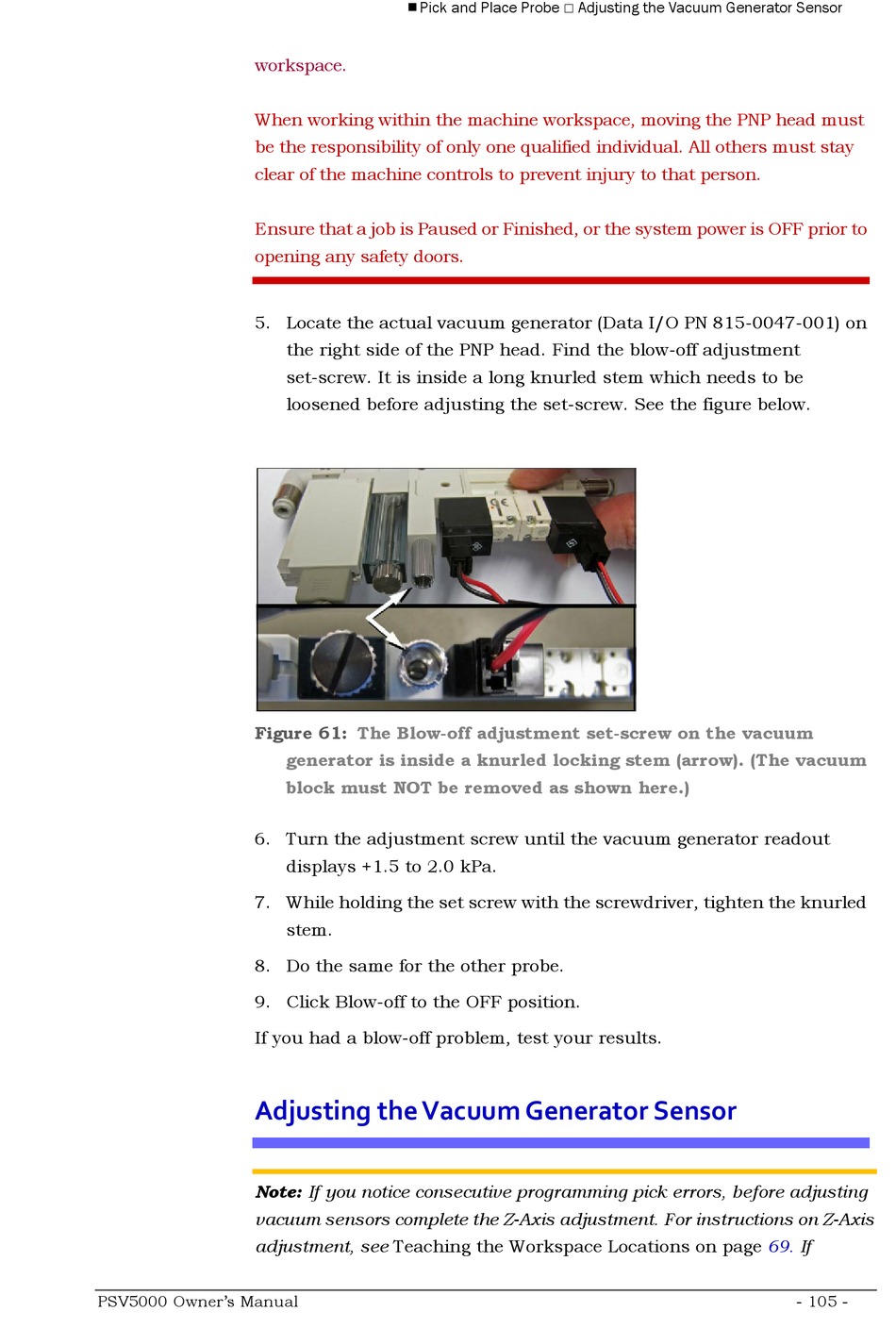

workspace.
When working within the machine workspace, moving the PNP head must
be the responsibility of only one qualified individual. All others must stay
clear of the machine controls to prevent injury to that person.
Ensure that a job is Paused or Finished, or the system power is OFF prior to
opening any safety doors.
5. Locate the actual vacuum generator (Data I/O PN 815-0047-001) on
Figure 61:
6. Turn the adjustment screw until the vacuum generator readout
7. While holding the set screw with the screwdriver, tighten the knurled
8. Do the same for the other probe.
9. Click Blow-off to the OFF position.
If you had a blow-off problem, test your results.
Adjusting the Vacuum Generator Sensor
Note: If you notice consecutive programming pick errors, before adjusting
vacuum sensors complete the Z-Axis adjustment. For instructions on Z-Axis
adjustment, see Teaching the Workspace Locations on page
PSV5000 Owner's Manual
Pick and Place Probe  Adjusting the Vacuum Generator Sensor
the right side of the PNP head. Find the blow-off adjustment
set-screw. It is inside a long knurled stem which needs to be
loosened before adjusting the set-screw. See the figure below.
The Blow-off adjustment set-screw on the vacuum
generator is inside a knurled locking stem (arrow). (The vacuum
block must NOT be removed as shown here.)
displays +1.5 to 2.0 kPa.
stem.
69. If
