Introduction ■ Machine Components
S
Designed to protect against injury and damage from the PNP head
movement, the safety doors are an important safety feature, stopping the
gantry when they are opened.
For more information see Safety Door with Interlocks on page 22.
P
The Power Panel is on the lower left side of the machine.
C
The Power Panel allows for the attachment of AC power and air.
Optional connections:
You can connect an Ethernet cable for internet connection
C
Mounted on the Power Panel are the main power switch and the main air
regulator and filter. There is a second regulator with a separate gauge for
adjusting socket opener pressure. See Adjusting the Socket Actuator Air
Pressure on the Programmers on page 99.
Figure 10:
Optional Equipment Descriptions
C
There is a toggle switch on the power panel which allows shutting off
power to only the programmers.
- 22 -
D
AFETY OORS
P
OWER ANEL
ONNECTIONS
ONTROLS

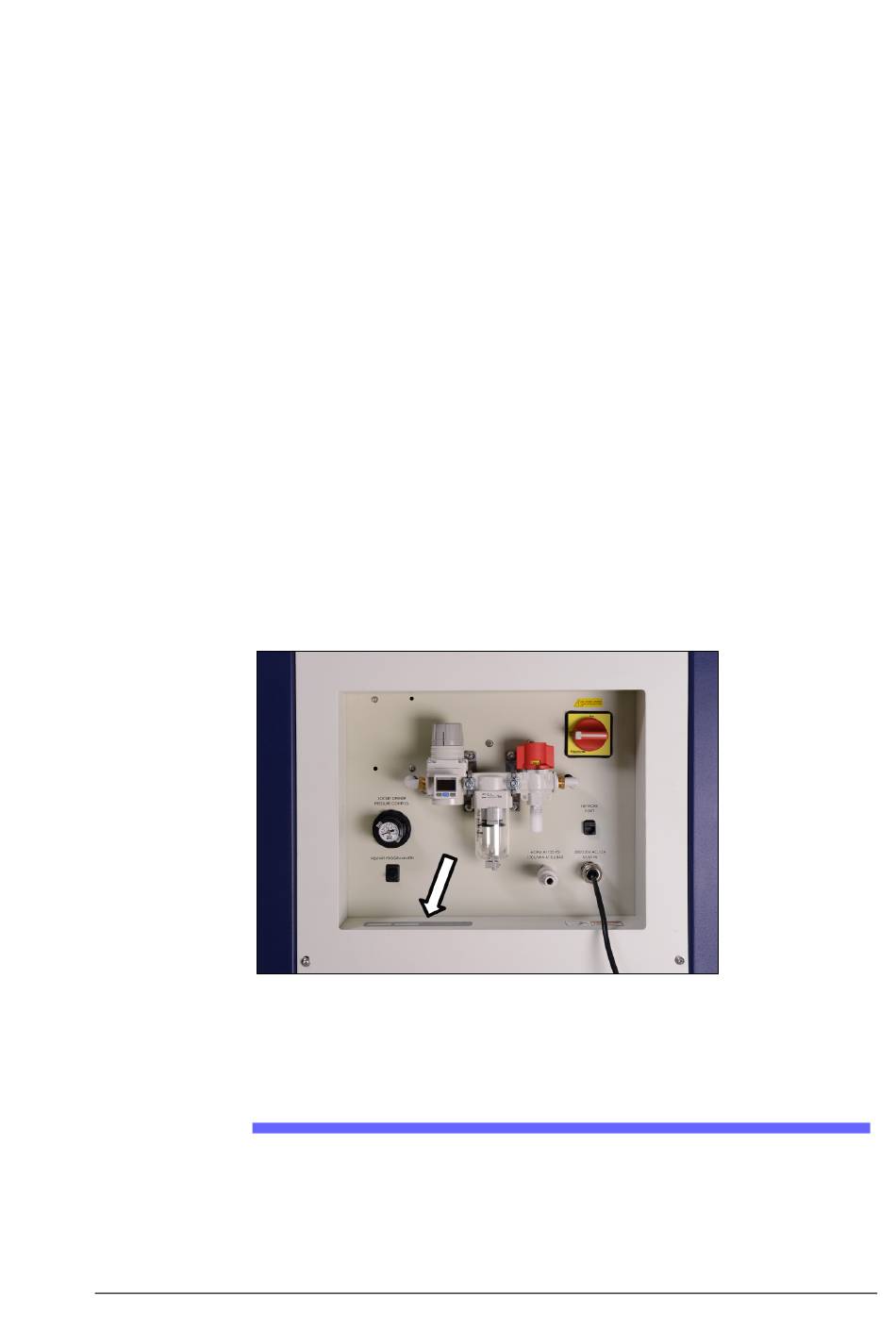

Power Panel (Facilities Panel) on the back of the machine.
The Serial Number is there, also (arrow).
B
IRCUIT REAKERS
