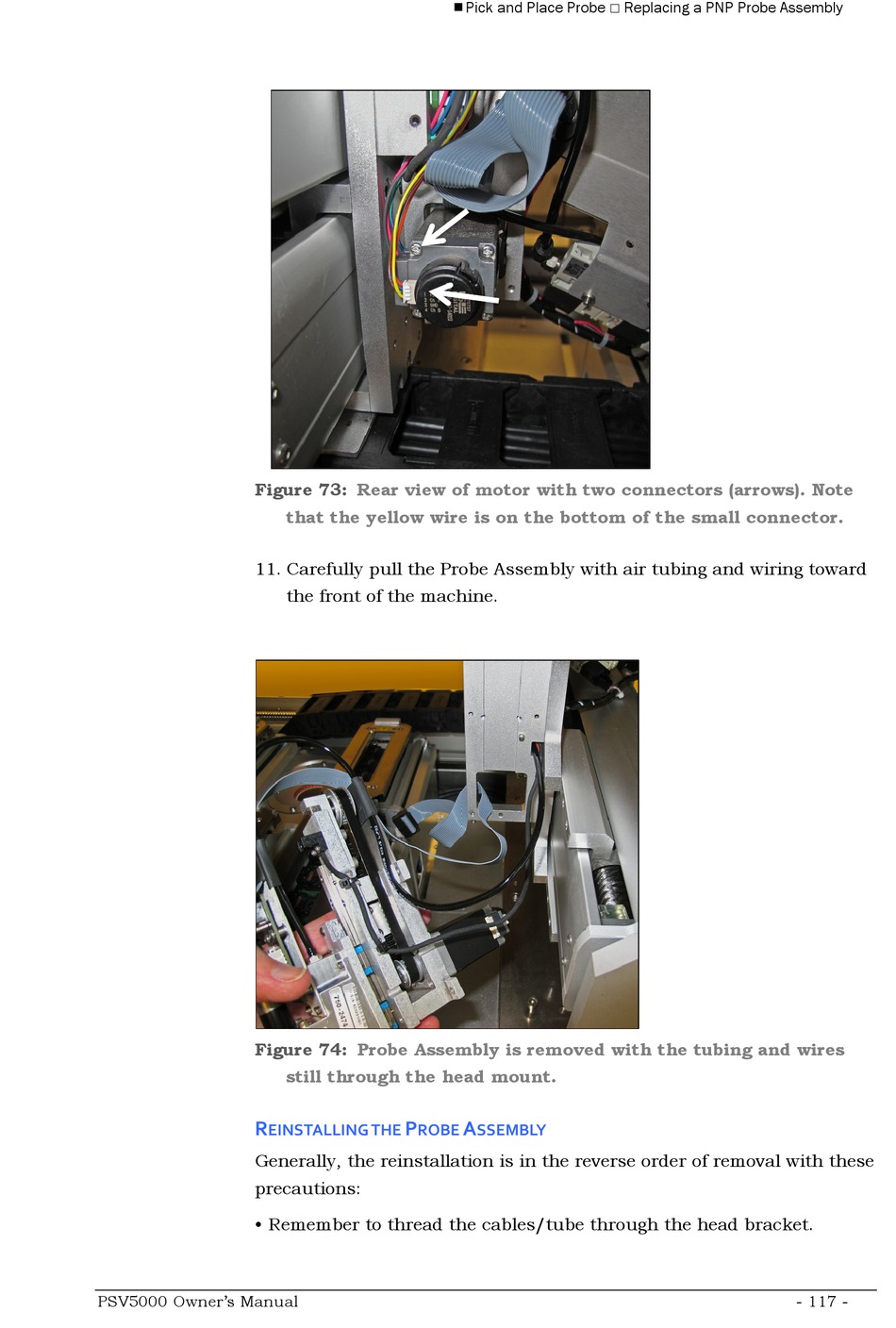

Figure 73:
11. Carefully pull the Probe Assembly with air tubing and wiring toward
Figure 74:
R
Generally, the reinstallation is in the reverse order of removal with these
precautions:
• Remember to thread the cables/tube through the head bracket.
PSV5000 Owner's Manual
Rear view of motor with two connectors (arrows). Note
that the yellow wire is on the bottom of the small connector.
the front of the machine.
Probe Assembly is removed with the tubing and wires
still through the head mount.
