Setup procedure
(1) Connect the resistor box and the GL450/400/350 for the 0-ohm setting as shown above.
(2) Leave the GL450/400/350 turned on for at least

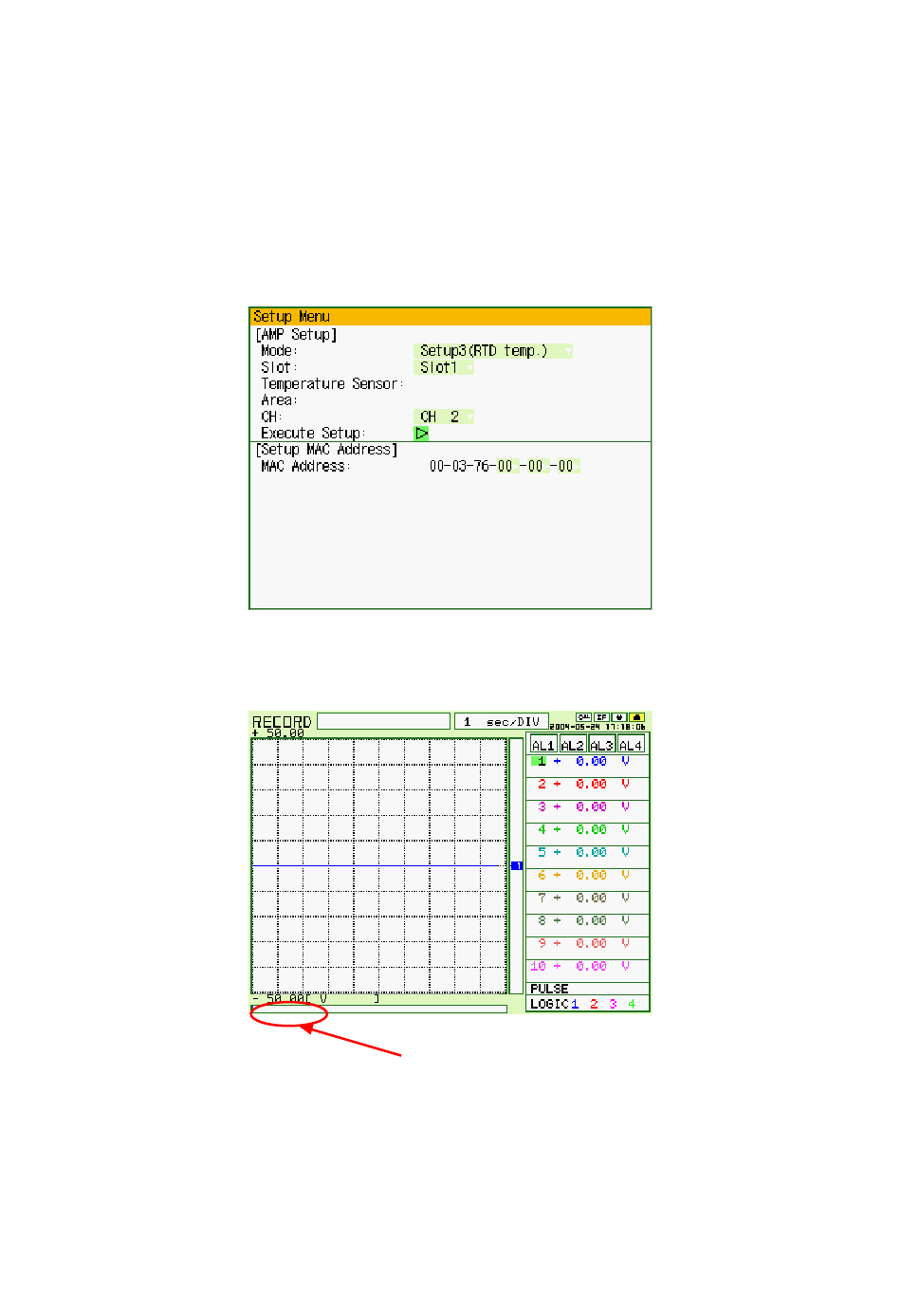

(3) After entering the System Setup mode, open the Setup menu as shown below.
Specify the AMP Setup conditions as shown below.
Mode
Slot
CH
(4) Move the cursor to the "Execute Setup" position as shown above.
(5) Press the [ENTER] key to start the Setup3 (RTD temp.) operation.
(6) The
"0 ohm :
[START]" message is displayed at the location shown above.
(7) Input "0 ohm" to the input terminals.
(8) Press the [START] key and then wait until the
(9) Connect the resistor box and the GL450/400/350 for the 350-ohm setting as shown above.
GL400-UM-251-9370
:Setup3 (RTD temp.)
:Slot1
:CH 2
Message
4-9
10
minutes.
"350 ohm :
[START]" message appears.
4. SETUP PROCEDURES
