5.2 Inspection and Check Methods

Preparations for inspections and checks
Condition settings files
(1) Copy the five condition settings files to a PCMCIA card from the computer.
How to load the condition settings files to the GL450/400/350 from a PCMCIA card

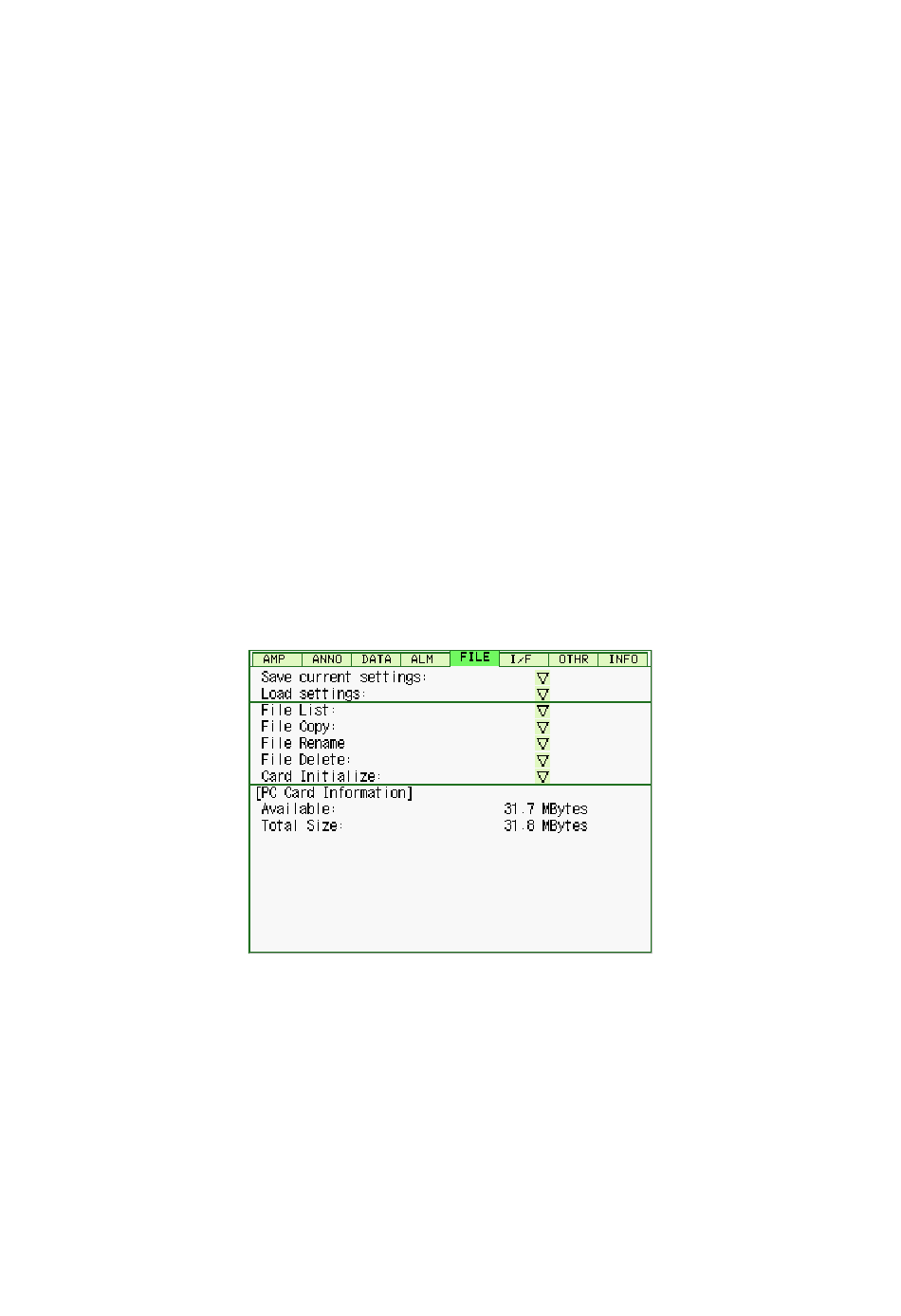

(1) Press the [MENU] key, and then press the [Right Direction] key until the "FILE" menu shown below
appears.
(2) Move the cursor to the "Load settings" position using the [Direction] keys.
GL400-UM-251-9370
:CondVolt.CND ← Condition settings for measurement accuracy
:CondT.CND ← Condition settings for the T range accuracy
:CondT50-1.CND ← Condition settings for the T range accuracy
:CondT50-2.CND ← Condition settings for the T range accuracy
:CondK.CND ← Condition settings for the K range accuracy
:CondK50-1.CND ← Condition settings for the K range accuracy
:CondK50-2.CND ← Condition settings for the K range accuracy
:CondRTD.CND ← Condition settings for the RTD accuracy
:CondNoise.CND ← Condition settings for the noise ratio
5-2
5. INSPECTION AND CHECK PROCEDURES
(for the 10-Ch and 20-Ch terminal unit)
(for ch3, 8, ,13, 18, 23 of the 50-Ch terminal unit)
(for ch23, 28, 33, 38, 48 of the 50-Ch terminal unit)
(for the 10-Ch and 20-Ch terminal unit)
(for ch3, 8, ,13, 18, 23 of the 50-Ch terminal unit)
(for ch23, 28, 33, 38, 48 of the 50-Ch terminal unit)
