Re-assembly

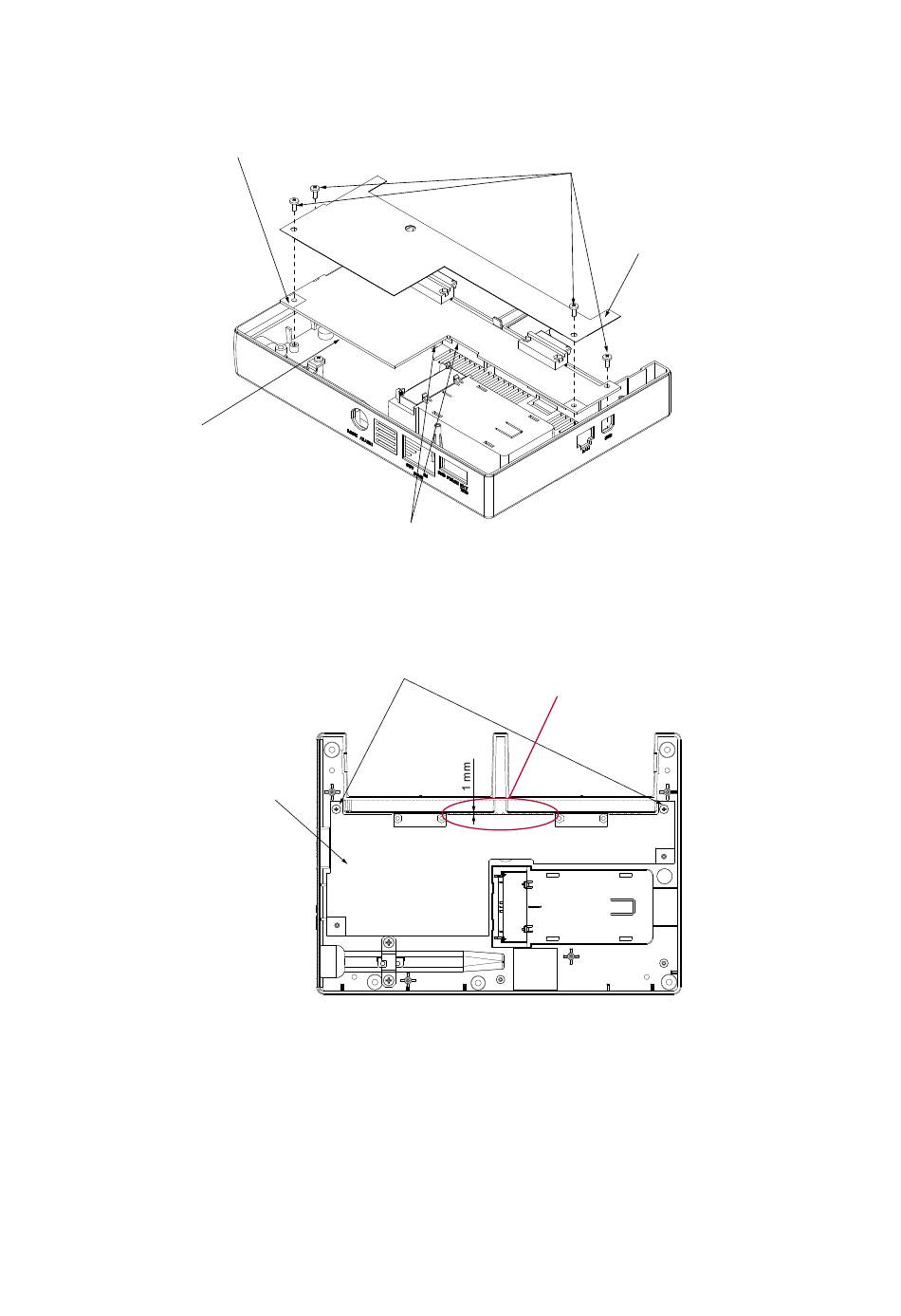

(1) Fit the AMP sheet edge to the AMP board edge as shown below and install it to the bottom case
assembly.
AMP sheet
(2) Tighten the top two M2.6 binding head screws as shown below.
At this stage, keep 1 mm of open space as shown below.
GL400-UM-251-9370
AMP board
AMP sheet
with AMP board
Fit the AMP sheet edge to the AMP
board edge at these locations.
Top M2.6 binding
head screw
3-7
3. DISASSEMBLY AND REASSEMBLY
M2.6L6 bindimg
head screw
AMP shield plate
Keep 1 mm of open
space here.
