4. SETUP PROCEDURES

Note:
You need the GL400 top cover assembly as a setup jig for the GL350 when you set up the GL350.

4.1 Entering the System Setup Menu

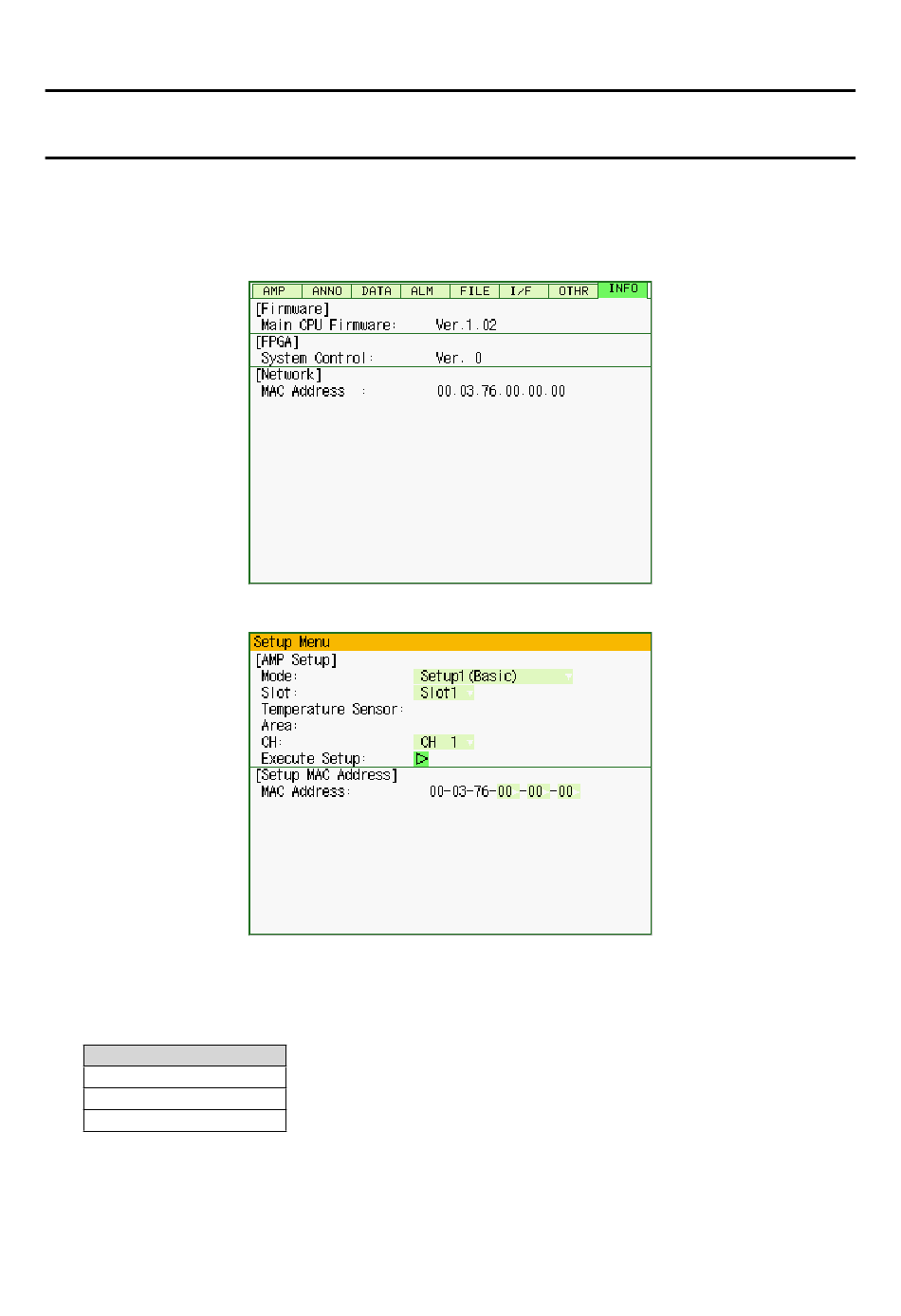

(1) Press the [MENU] key, and then press the [Right Direction] key until the "INFO" menu shown below
appears.
(2) Press the [UP Direction] key 10 times in order to display the "SET UP" menu shown below.
(3) Move the cursor to the "Mode" position using the [Direction] keys.
(4) Press the [ENTER] key to display the menu below from which you can execute the various Setup
operations.
Setup mode
Setup1 (Basic)
Setup2 (Room temp.)
Setup3 (RTD temp)
(5) Select the Setup mode using the [Direction] keys, and then press the [ENTER] key.
(6) Move the cursor to the "Execute Setup" position as shown above.
(7) Press the [ENTER] key to start the selected Setup operation.
