3. DISASSEMBLY AND REASSEMBLY
Mounting the Input Terminal Unit

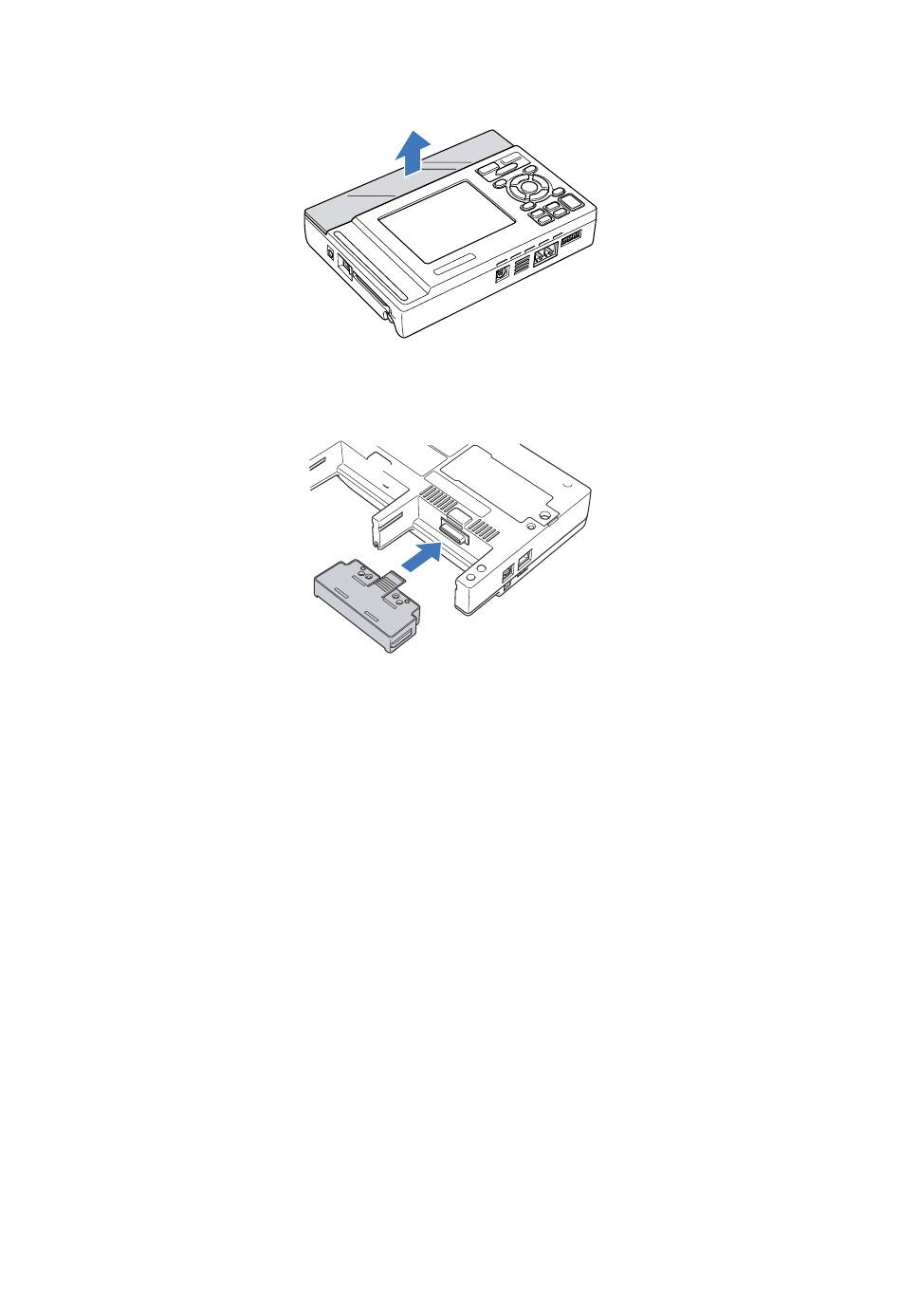

(1) Remove the cover from the input terminal mounting area.
(2) As shown in the figure below, insert the input terminal unit in the GL450/400/350. At this time, be sure to
check that the terminal unit is locked onto the connector.
GL400-UM-251-9370
3-2
