4.4 Setting Up Setup3 (RTD Temp.)

Preparation

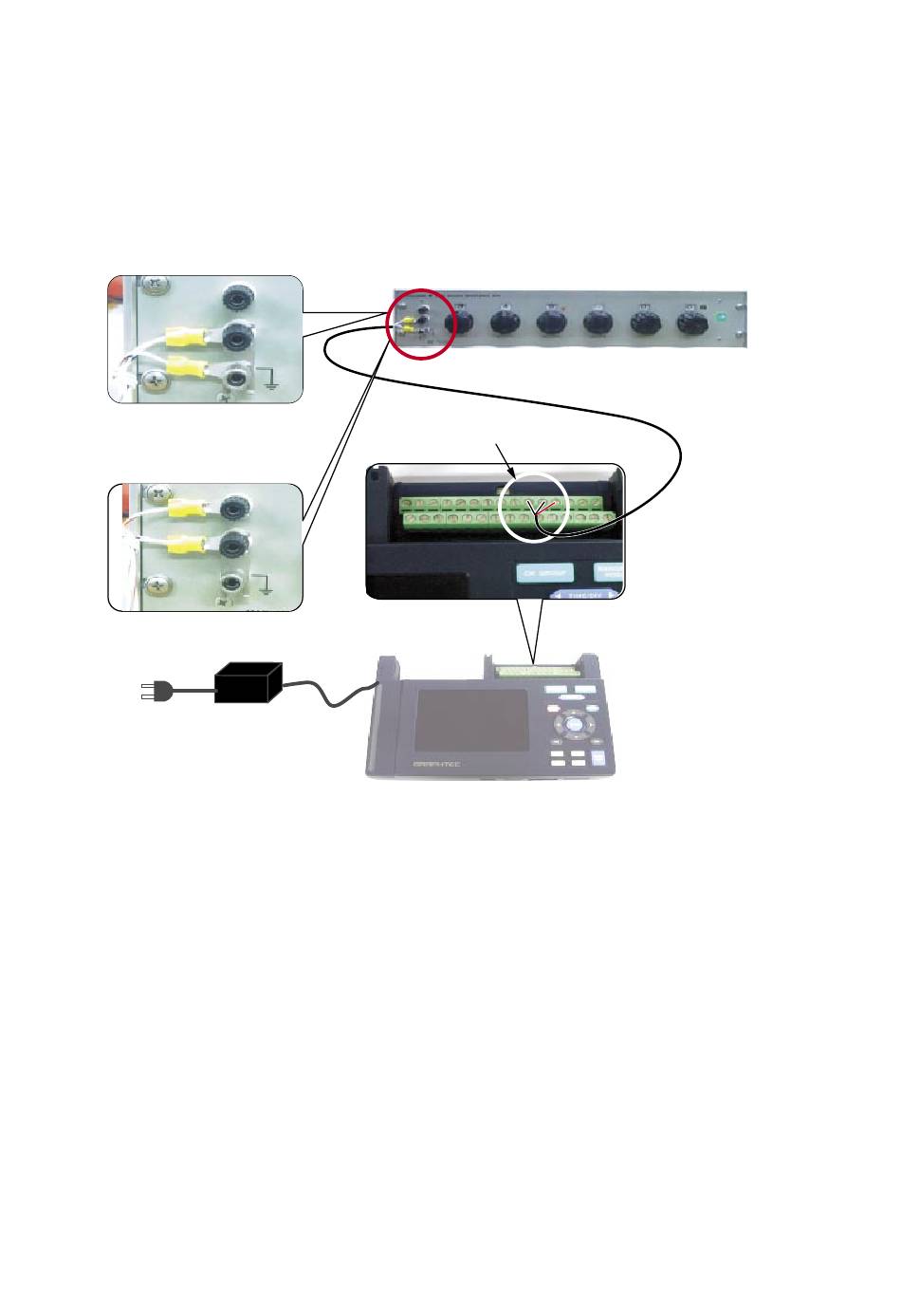

As shown below, use a resistor box.

Wiring connection

Connect one of the resistor

terminals and GND for the 0-

ohm setting.

Connect both of the resistor

terminals for the 350-ohm

setting and then set the

resistor to 350-ohm.

GL400-UM-251-9370

Resistor Box

Connect to +, -, and b terminals of CH2.

AC adapter

4-8

4. SETUP PROCEDURES
