INSTALLATION
LEGEND :
TN726 -DATA LINE CP
B1 - TYPICAL - 103A CONNECTING BLOCK
Cl -MODULAR CORD (D8W-87)
C7-MODULAR CORD (D6AP-87)
P2-MODULAR BULK POWER SUPPLY
W1 -4-PAIR INSIDE WIRING CABLE
Z3A1 ADU -EQUIPPED WITH A 3 FOOT PLUG-ENDED EIA CORD
Z3A4 ADU -EQUIPPED WITH A 3 FOOT RECEPTACLE-ENDED
EIA CORD

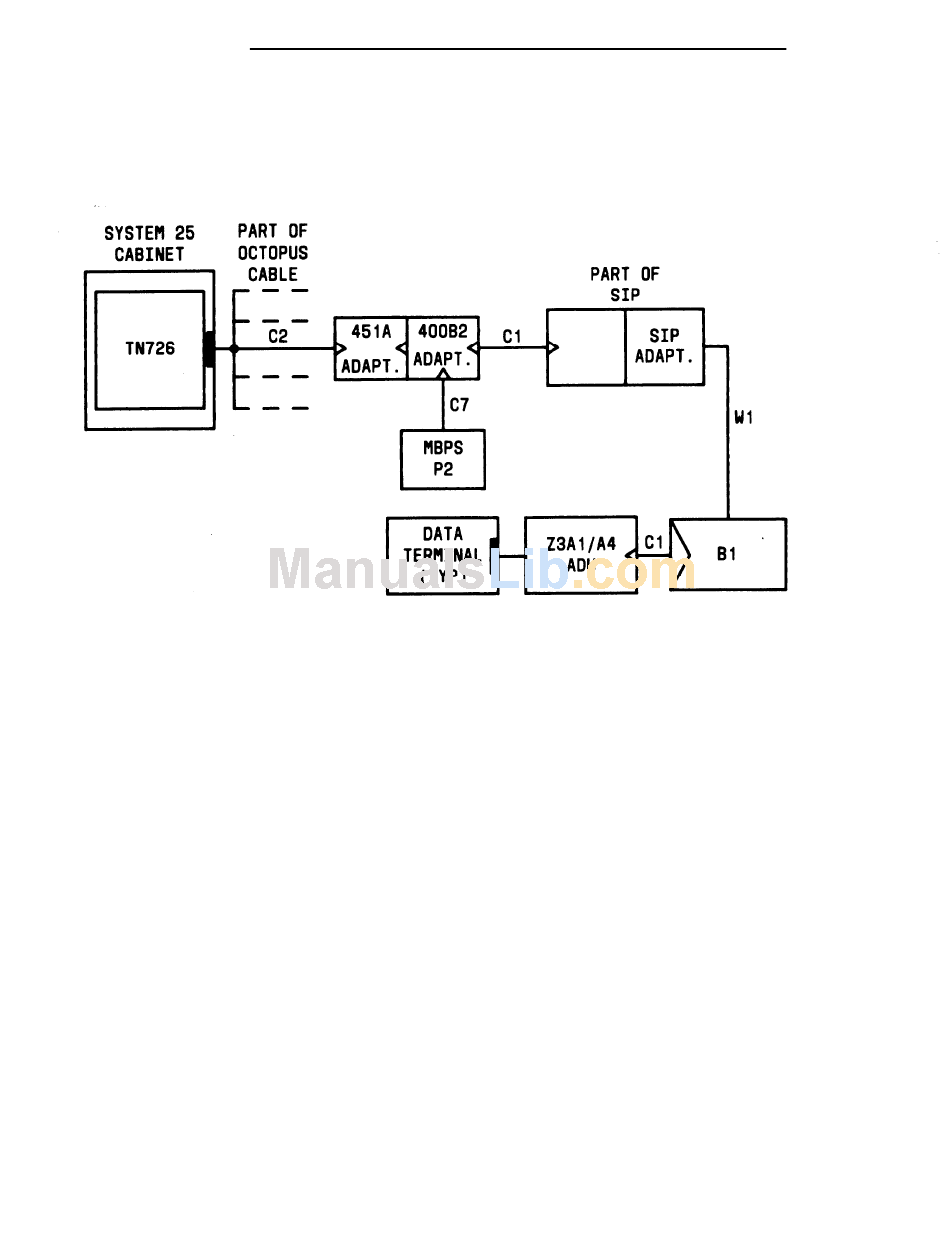

Figure 2-43.
2-100
POWER UNIT (346A)
POWER PANEL (346A-1)
Remote Powering of an ADU (Optional)
