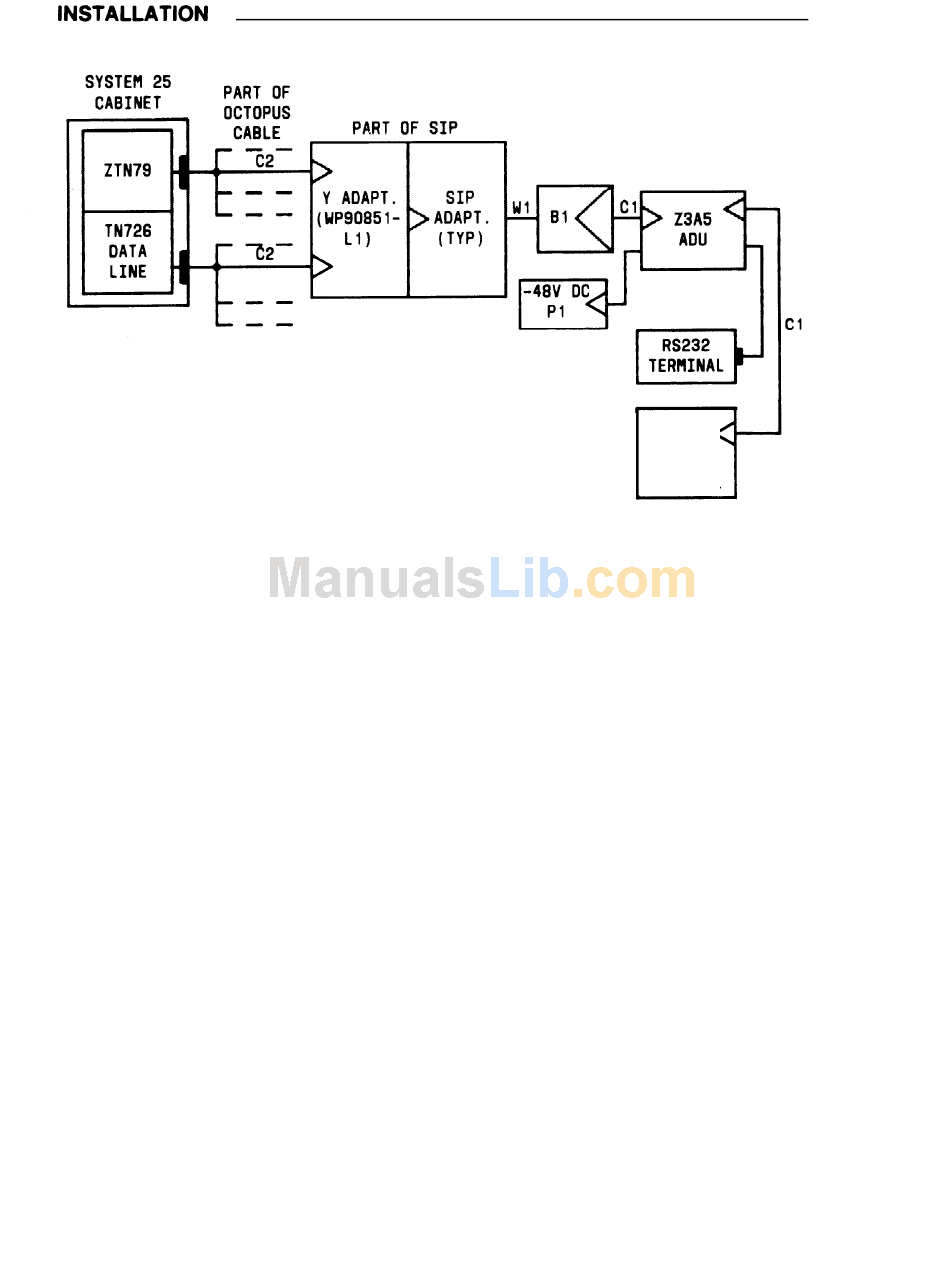

LEGEND:
HYBRID LINE CP
ZTN79 -
D A T A L I N E C P
TN726 -
MODULAR Y ADAPTER
WP90851-L1 -
TYPICAL -103A CONNECTING BLOCK
B1 -
MODULAR CORD (D8W-87)
C1 -
OCTOPUS CABLE (WP90780)
C2 -
P1 - KS22911 POWER SUPPLY
W1 - INSIDE WIRING CABLE
Z3A5 ADU - EQUIPPED WITH A 3 FOOT PLUG-ENDED
EIA CORD
Figure 2-40.

ATL Cordless Telephone

Before placing the base at the designated location, the following things must
reconsidered.
— The base unit should be located at least three feet from any metal
source.
— The base should be located so that no metal objects are in the line
of sight to the operating area of the handset.
— The base should be located at least six feet from computing
equipment and electromagnetic sources.
Install the ATL Cordless Telephone using the documentation provided with
the telephone.
2-94
7300HSeriesTerminal/ADU Connections
7300H
SERIES
VOICE
TERMINAL
