6. SI Unit

6.1. Parts and description

EX245-SPN1
EX245-SPN2
PROFINET connection for Port1 (XF1)
Push Pull connector
EX245-SPN1: SCRJ
EX245-SPN2: RJ45

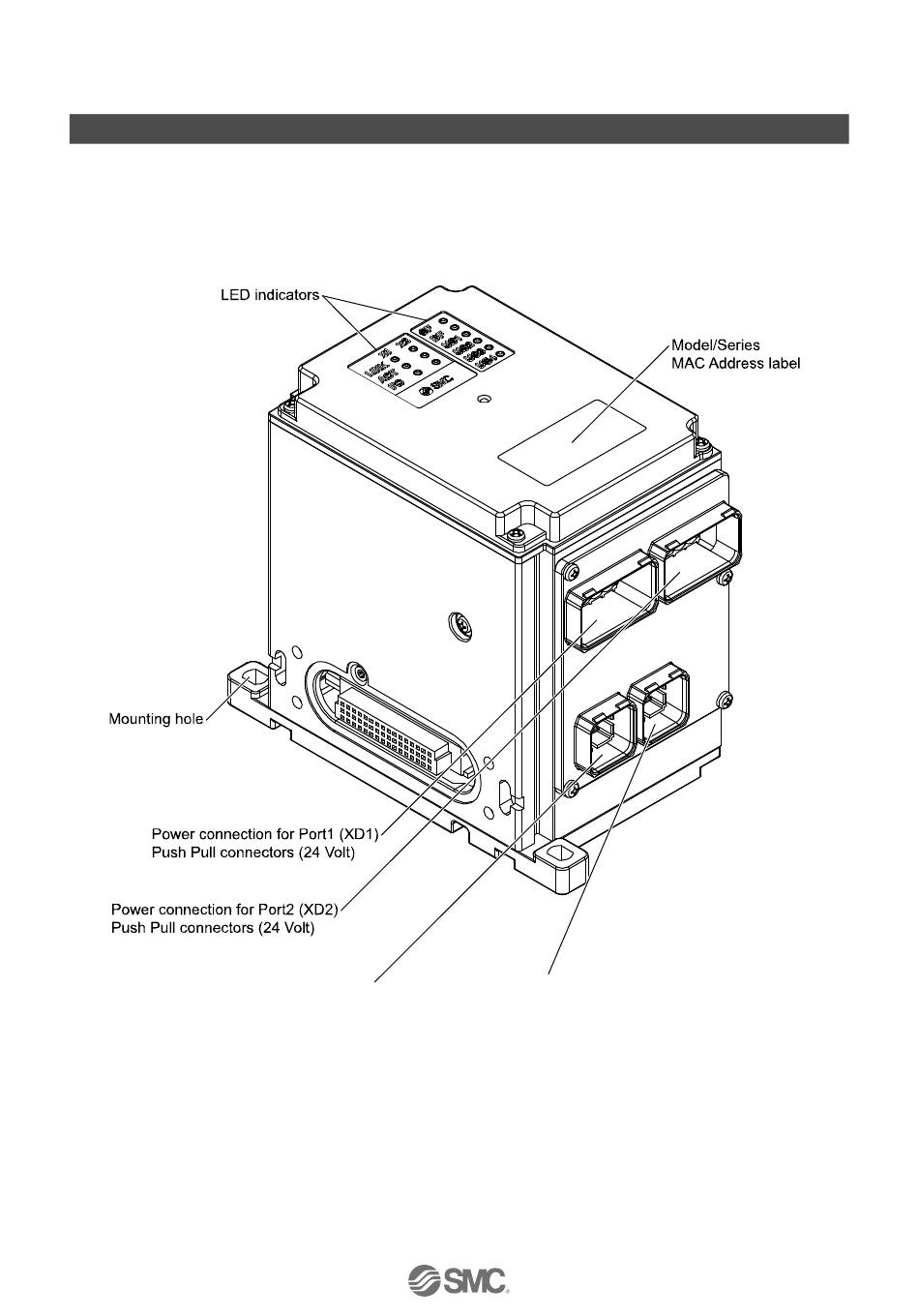

Fig. 6-1 Allocation of parts on the EX245-SPN1/SPN2
PROFINET connection for Port2 (XF2)
Push Pull connector
EX245-SPN1: SCRJ
EX245-SPN2: RJ45
-31-
No.EX##-OMU0020-A
