7.5. LED indicators

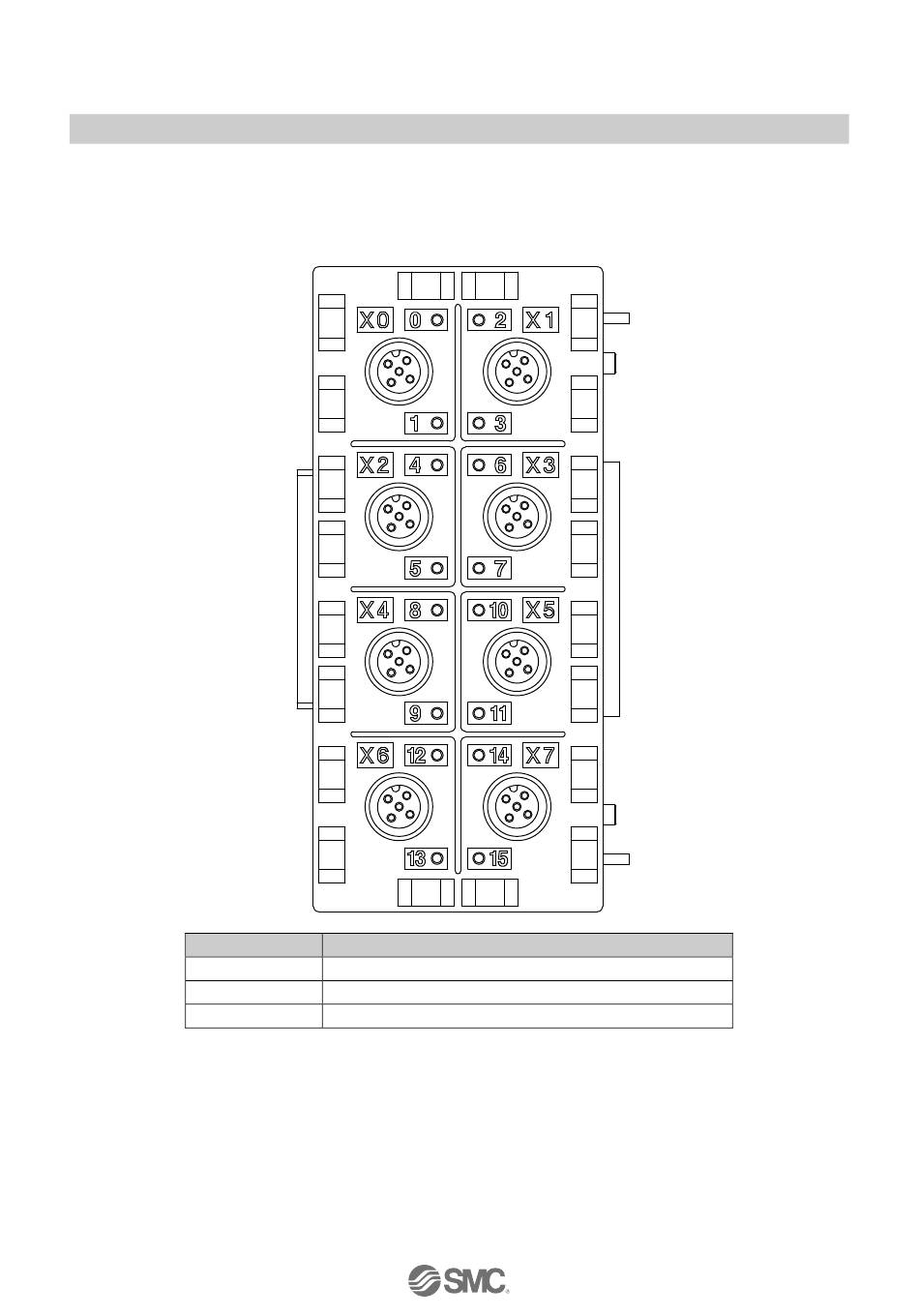

The status indicators are arranged on the EX245-DX1 as shown in the illustration below.

0 to15

Description

OFF

Input is not activated and no errors.

Green ON

Input is activated.

Red ON

Short circuit is detected.

Fig. 7-2 Status indicators of the EX245-DX1

-42-

No.EX##-OMU0020-A
