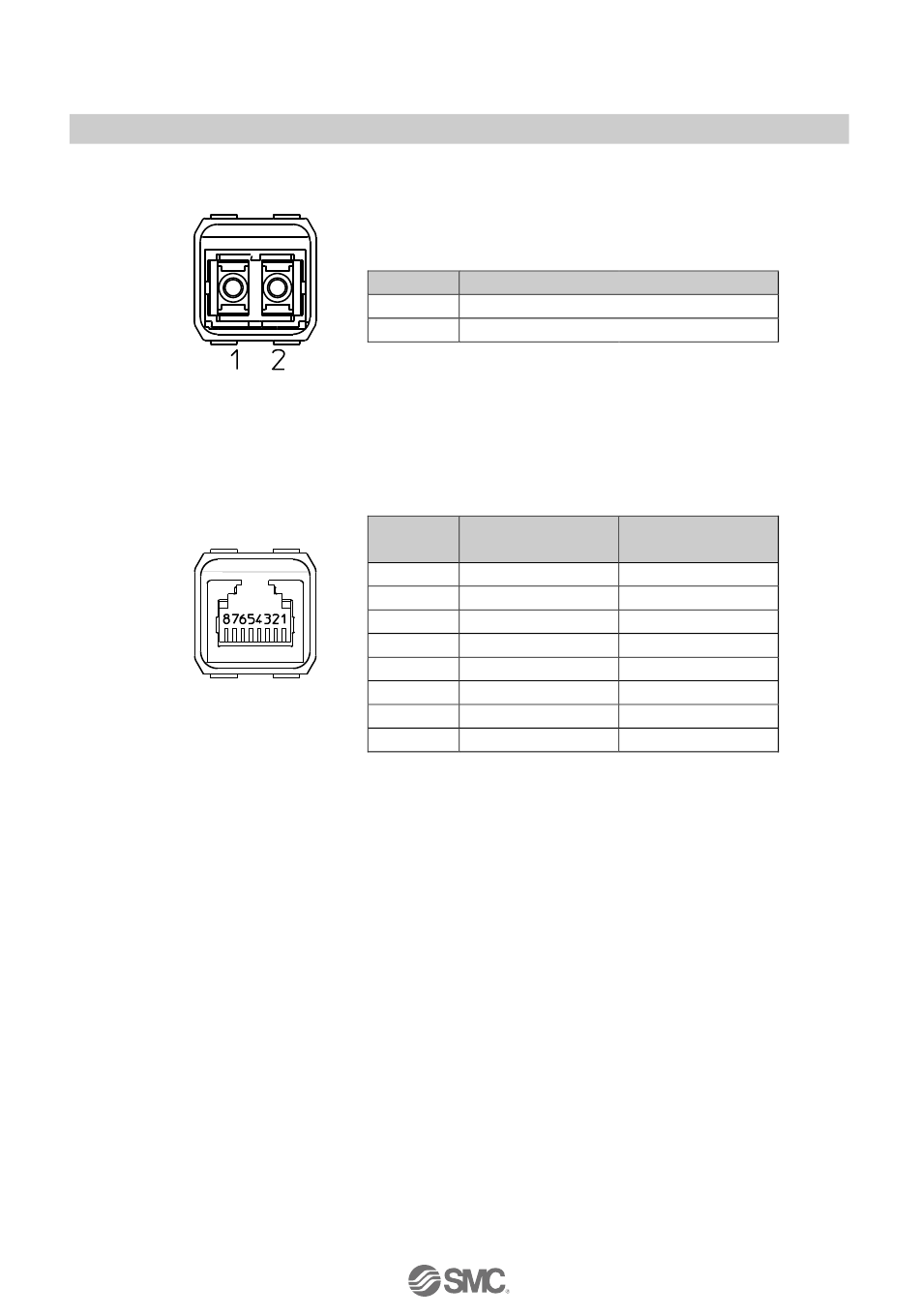

PROFINET communication connectors
View of Push Pull
connector (XF1/XF2)
Fig. 3-6 Pin allocation of Push Pull connector (SCRJ) for EX245-SPN1
View of Push Pull
connector (XF1/XF2)
Fig. 3-7 Pin allocation of Push Pull connector (RJ45) for EX245-SPN2
Pin
1
TX Transmit Data
2
RX Receive Data
Port1 (XF1)
Pin
Port type: MDI
1
TD+ Transmit data+
2
TD- Transmit data-
3
RD+ Receive data+
4
-
5
-
6
RD- Receive data-
7
-
8
-
-17-
Port1/Port2
Port2 (XF2)
Port type: MDI-X
RD+ Receive data+
RD- Receive data-
TD+ Transmit data+
-
-
TD- Transmit data-
-
-
