10.2. Y Connector

Y connectors can be used with the EX245-DX1 and EX245-DY1.

There are two options –

2 x M12 to M12

2 x M8 to M12

Model No.：PCA-1557785

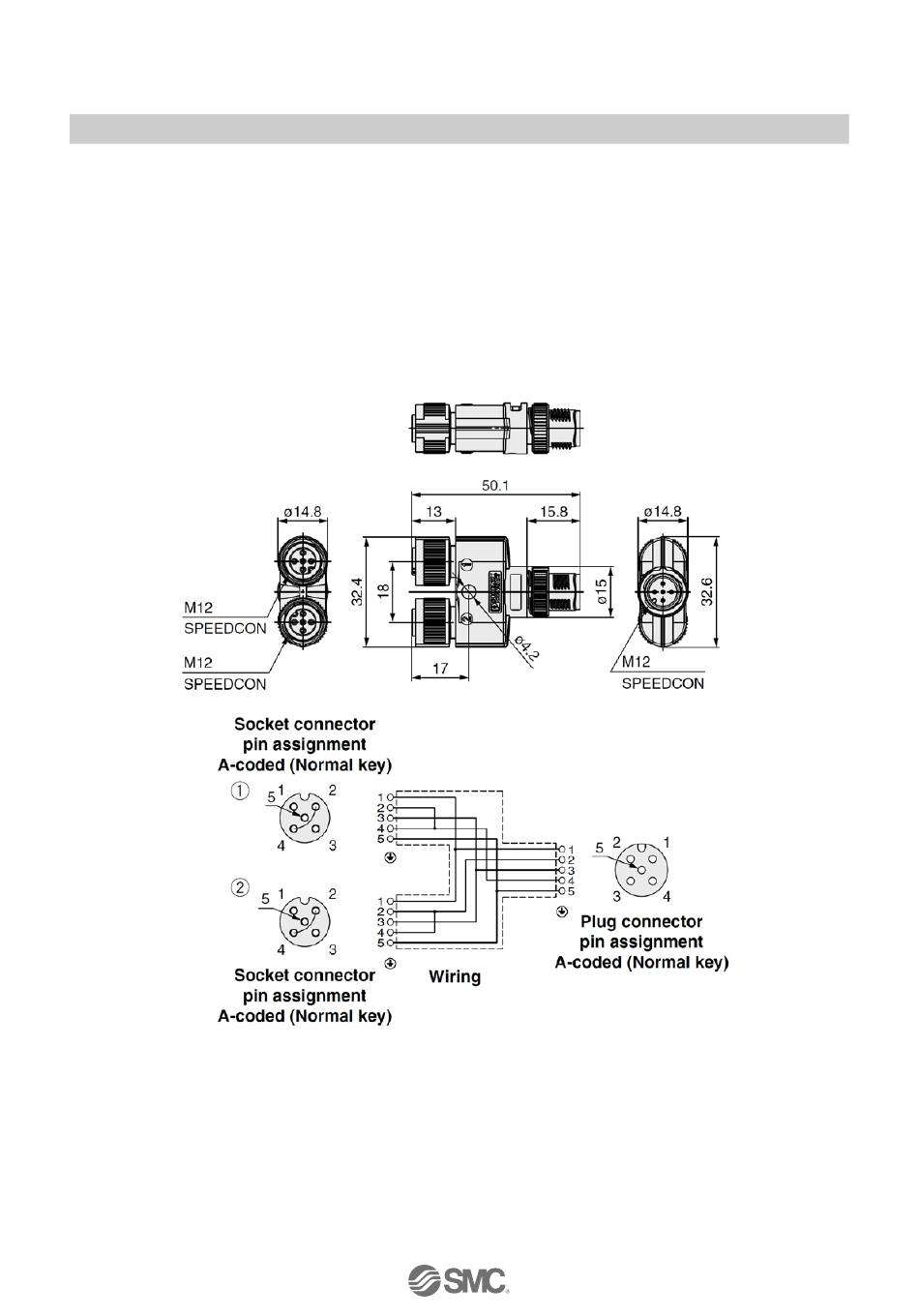

(Y branch Connector (2 x M12 to M12))

Fig. 10-2 PCA-1557785

-52-

No.EX##-OMU0020-A
