6.3. Process data for valves

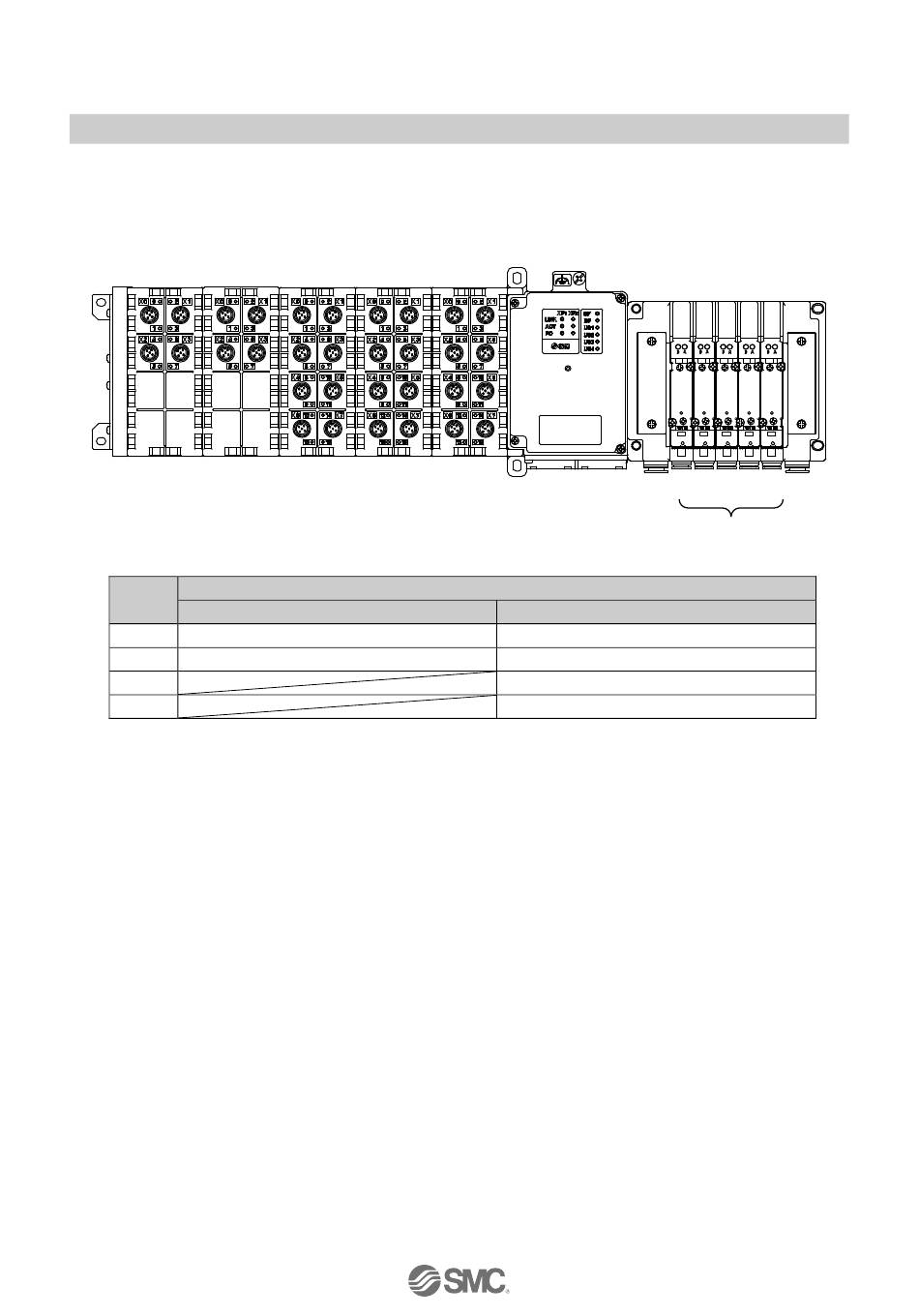

The SI Unit occupies 2 or 4 bytes of output data for valves. The counting of valve coils starts at the
SI Unit from left to right.
Byte
0 Valve coils 0-7
1 Valve coils 8-15
2
3
Valves (16 coils)
Fig. 6-2 The process data
-33-
Output data
Valves (32 coils)
Valve coils 0-7
Valve coils 8-15
Valve coils 16-23
Valve coils 24-31
0................X
Valve coils
