11. Dimensions

11.1. I/O Modules Manifold
The following table shows the length of the I/O Modules manifold.
n 0
L 113.6
Formulas: L = 54n + 113.6 (max. 8 modules) (Dimensions in mm)

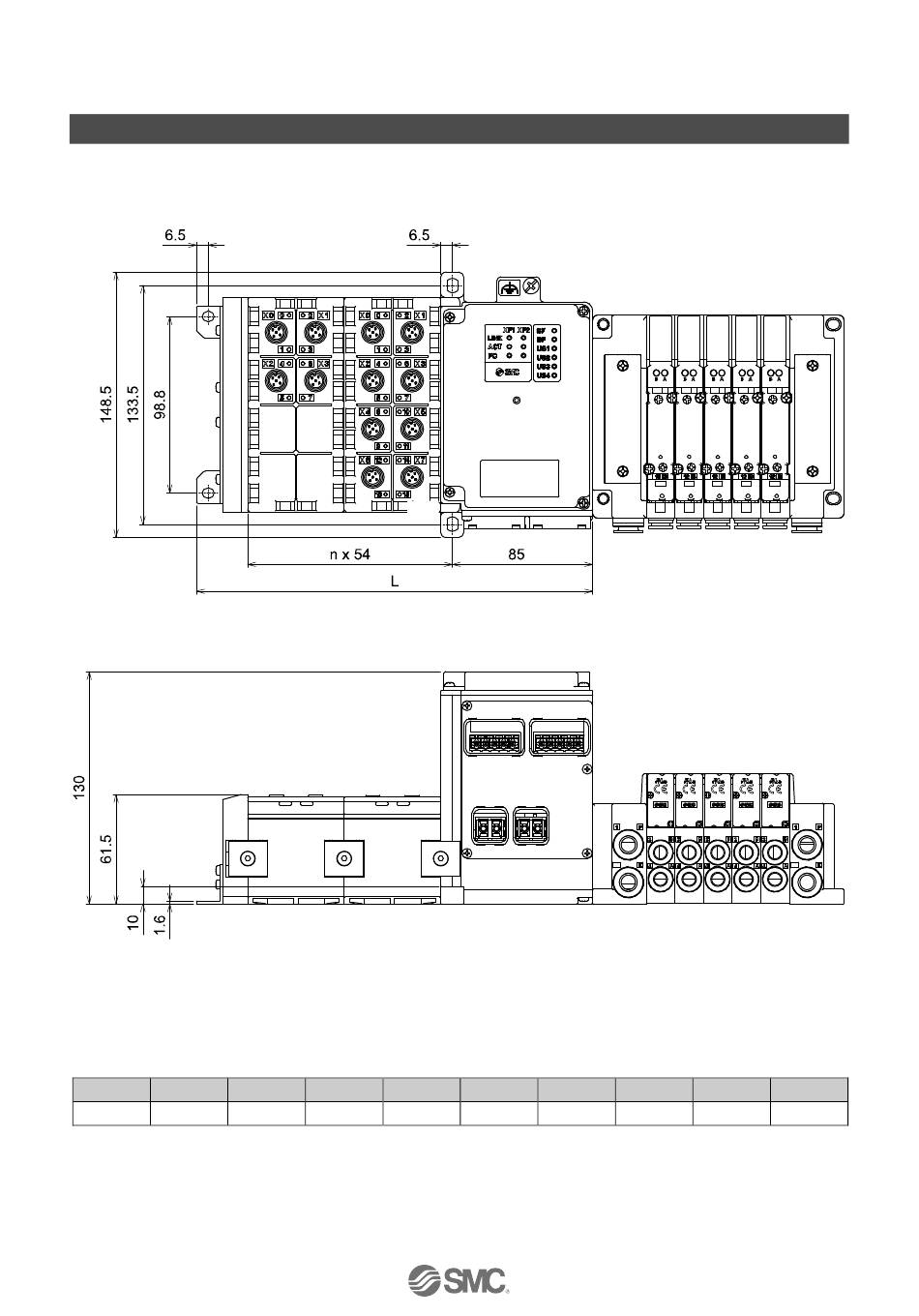

Fig. 11-1 Dimensions of the Modules manifold
Table. 11-1 Length the EX245 series module
1 2 3
167.6 221.6 275.6
4 5
329.6 383.6
-57-
6 7 8
437.6 491.6 545.6
