10.3. Seal cap
Seal caps can be used with the EX245-DX1 and EX245-DY1.
Mount the seal cap in the unused socket.
IP65 is satisfied by using the seal cap properly.
Model No.: EX9-AWTS
(M12 connector for socket 10 pieces.)

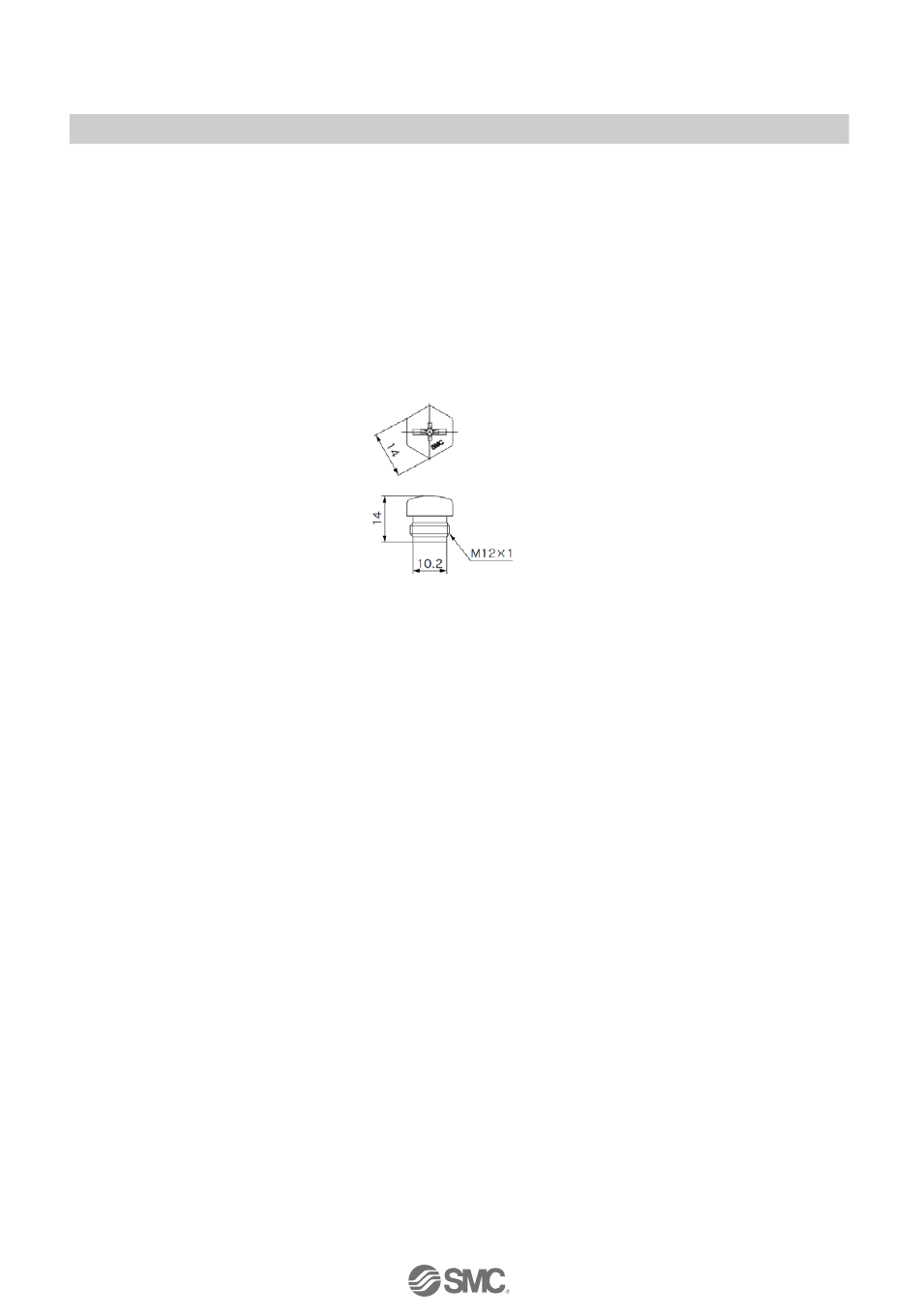

Fig. 10-4 EX9-AWTS
Note: Tighten the seal caps to the tightening torque specified (0.2 N•m).
-54-
No.EX##-OMU0020-A
