3. Installation

Caution

To prevent manifold components being damaged, apply the recommended tightening torque.

Mount the manifold using the 8 mounting positions on the base with screws.

Required screws are as follows:

① 2 x M5 (End plate: torque = 1.5 N⋅m)

② 2 x M5 (SI Unit: torque = 1.5 N⋅m)

③ 4 x M∗ (Valve manifold: refer to valve manifold catalogue)

Caution

All manifolds are mounted using 8 screws (except VQC4000 which uses 7 screws).

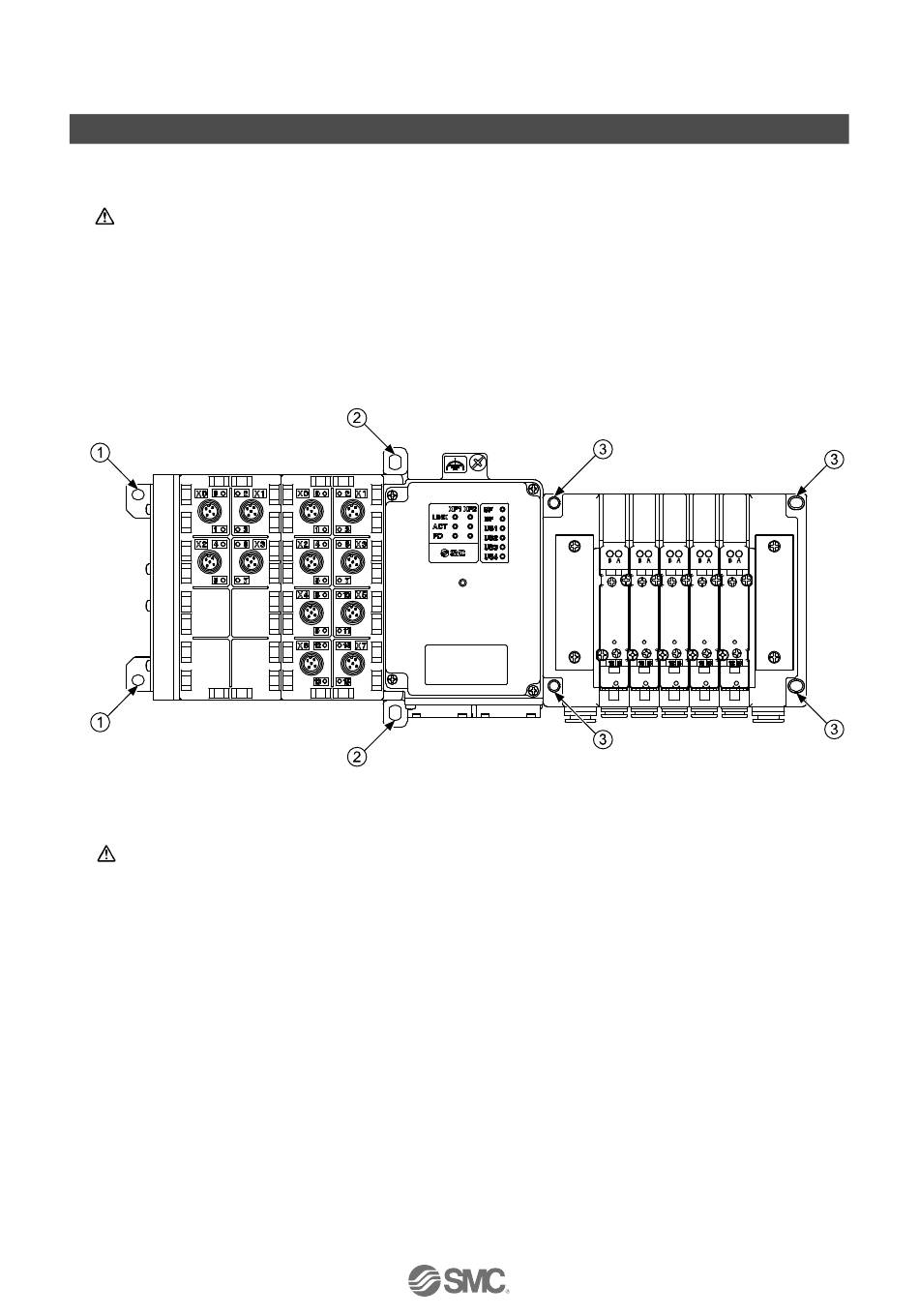

Fig. 3-1 Required screws

-13-

No.EX##-OMU0020-A
