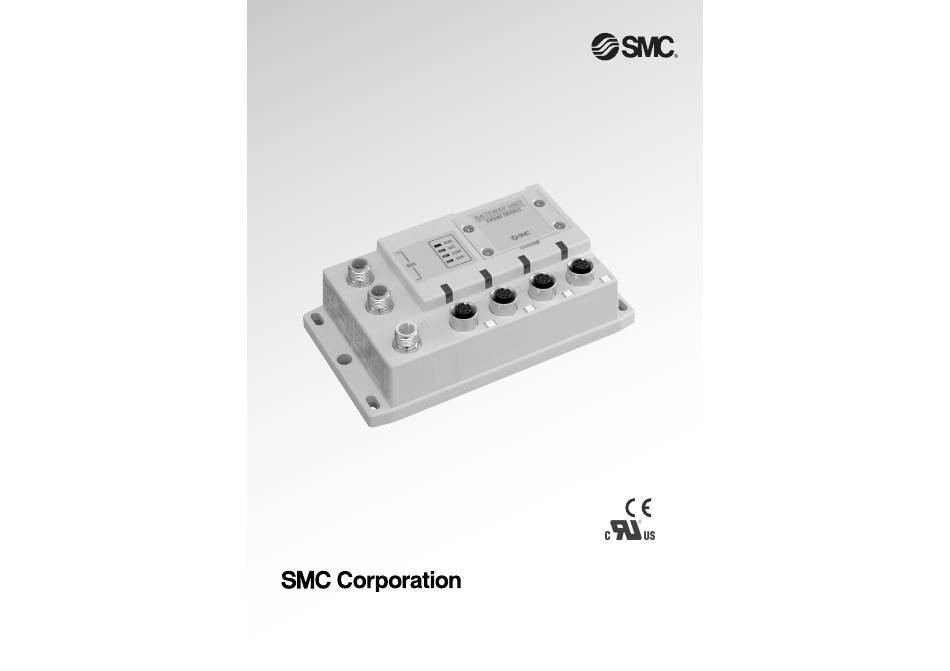

- Page 1 Reduced wiring system Rockwell International Remote I/O Compatible GW Unit Instruction Manual EX500-GAB1-X1 URL http://www.smcworld.com EX##-OMI0028...
-
Page 2: Table Of Contents
Contents Thank you for purchasing the SMC reduced wiring system EX500 series. SAFETY ......................2 Product Summary....................5 Please read this instruction manual carefully and understand the contents before EX500 use so that you can operate this unit safely and correctly. Part Names ....................6 Please keep this manual handy for future reference. -
Page 3: Safety
SAFETY The body of unit and this manual contain the essential information for the protection of users and others from possible injury and property damage and to ensure correct handling. Before performing maintenance: Turn off power supply. Please check that you fully understand the definitions of the following messages Stop air supply, exhaust compressed air in piping, and confirm the release ( symbols ) before going on to read the body of this manual, and always follow the to atmosphere. -
Page 4: Product Summary
Product Summary SAFETY ( continued ) Follow the instructions given below when handling your reduced wiring system. System configuration Otherwise a damage or failure to cause a malfunction can result. Operate the reduced wiring system at the specified voltage. Remote I/O Reserve space for maintenance. -
Page 5: Ex500 Part Names
EX500 Part Names Dimensions ( unit: mm ) EX500 body GATEWAY UNIT EX500 SERIES 24VDC COM A COM B COM C COM D Name Application Communication Connect with the PLC in which the Remote I/O connector system made by Rockwell International Corp. is incorporated. -
Page 6: Specification
Specification Wiring Basic specifications Internal circuit Line1 Rated voltage DC24V N.C. Line2 Range of power Power supply for input and controlling GW/SI: DC24V Shield supply voltage Power supply for output: DC24V+10%/-5% ( Voltage drop RD - warning at around 20V ) Line1 N.C. - Page 7 Wiring ( continued ) Connection of termination resistor Communication wiring Connect the cable with Remote I/O communication connector to the communication To the units at both ends of Remote I/O system, be sure to connect "termination connector of GW unit. resistors".
- Page 8 Wiring ( continued ) Separate wiring for power supply for solenoid valves/output and for Power supply wiring input and control of GW/SI Connect the power supply connector cable to the power supply connector of GW unit. There are two types of cables different in connector shape ---- straight type and angle Both single power supply and two power supply systems can be adopted, however, the type.
- Page 9 Wiring ( continued ) For GW unit – Manifold valve – Input unit manifold configuration Branch wiring ( wiring to communication ports ) For wiring with solenoid valves or input devices, connect the branch cable with M12 Two communication connectors in SI unit and one communication connector in Input connector to communication ports A - D.
-
Page 10: Display/Switch Setting
Display/Switch Setting Wiring (continued ) For GW unit – Input unit manifold configuration Settings for display To the communication connector of Input unit, connect the branch cable with M12 connector from GW unit. GW unit Display Description Lights on: Power for Input and controlling GW/SI is supplied. Lights off: Power for Input and controlling GW/SI is not supplied. - Page 11 Display/Switch Setting (continued ) Operation setting switch 2 ( SW2 ) Switch setting Open the station number switch protective cover and set the switches with a Last rack Mode Last rack ( 1-bit setting ) fine-pointed watchmakers screwdriver etc. Data rate In the case of last rack, set this switch to ON.
-
Page 12: Si Unit Part Names
SI Unit Part Names Dimensions ( unit: mm ) The SI unit is the unit to communicate with GW unit in combination with manifold valve. 1. SI unit for SV series valves ( EX500-S 01-X1 ) It can be used with SV series valves and VQC series valves. 1. -
Page 13: Mounting/Wiring
Mounting/Wiring Specification The mounting and removing methods of SI unit are as shown below. 1. SI unit for SV series valve ( EX500-S 01-X1 ) Item Specification Connected block Solenoid valve ( single, double ) Relay output module ( 1-point output, 2- point output ) Connected block Max. -
Page 14: Display
Display Input Unit Manifold Part Names The Input unit manifold consists of Input unit, input block (s), end block and DIN rail. SI unit for SV series valves ( EX500-S 01-X1 ) Up to 8 of the input blocks can be connected ( 16 points ). Any combination of input blocks ( for M8 connector, M12 connector and 8-point- integrated type ) is acceptable. -
Page 15: Dimensions
Dimensions ( unit: mm ) When only input blocks for M8 connector are connected When only input blocks for M12 connector are connected DIN Rail DIN Rail (L4) L2 ( Rail mounting pitch: 12.5 ) (L4) L2 ( Rail mounting pitch: 12.5 ) Stations L1 [mm]: Rail length 110.5... -
Page 16: Specification
Specification Wiring Specifications for Input unit Branch wiring For wiring method, refer to subsection "Wiring" ( page 9 ) of section "EX500" in this Item Specification manual. To input devices such as sensor, the power is supplied through the branch Connected block wiring ( branch cable with M12 connector ). -
Page 17: Display
Option Wiring (continued ) Correspondence between input number and input block Cable with Remote I/O communication connector For details, refer to subsection "Wiring" ( page 9 ) in section "EX500" in this manual. Up to 8 Input blocks can be connected ( 16 points ). Input numbers are 0 - 15 from Input unit side. -
Page 18: Troubleshooting
Troubleshooting Option (continued ) Overall system Waterproof cap Mounted on unused ports of GW unit, input block, power block and output block. Item Solution/Corrective action The proper use of this waterproof cap can achieve IP65 Enclosure. ( The waterproof caps Solenoid valve Check the power for solenoid valves/output ( DC24V are delivered together with each input block as accessories. -
Page 19: Appendix Table
Troubleshooting (continued ) Remote I/O compatible communication Item Solution/Corrective action RUN LED is not lit. Check the power for input and control ( DC24V ) is supplied. COM LED is not lit. Check the signal line from PLC is ERR LED is lit. connected correctly.
