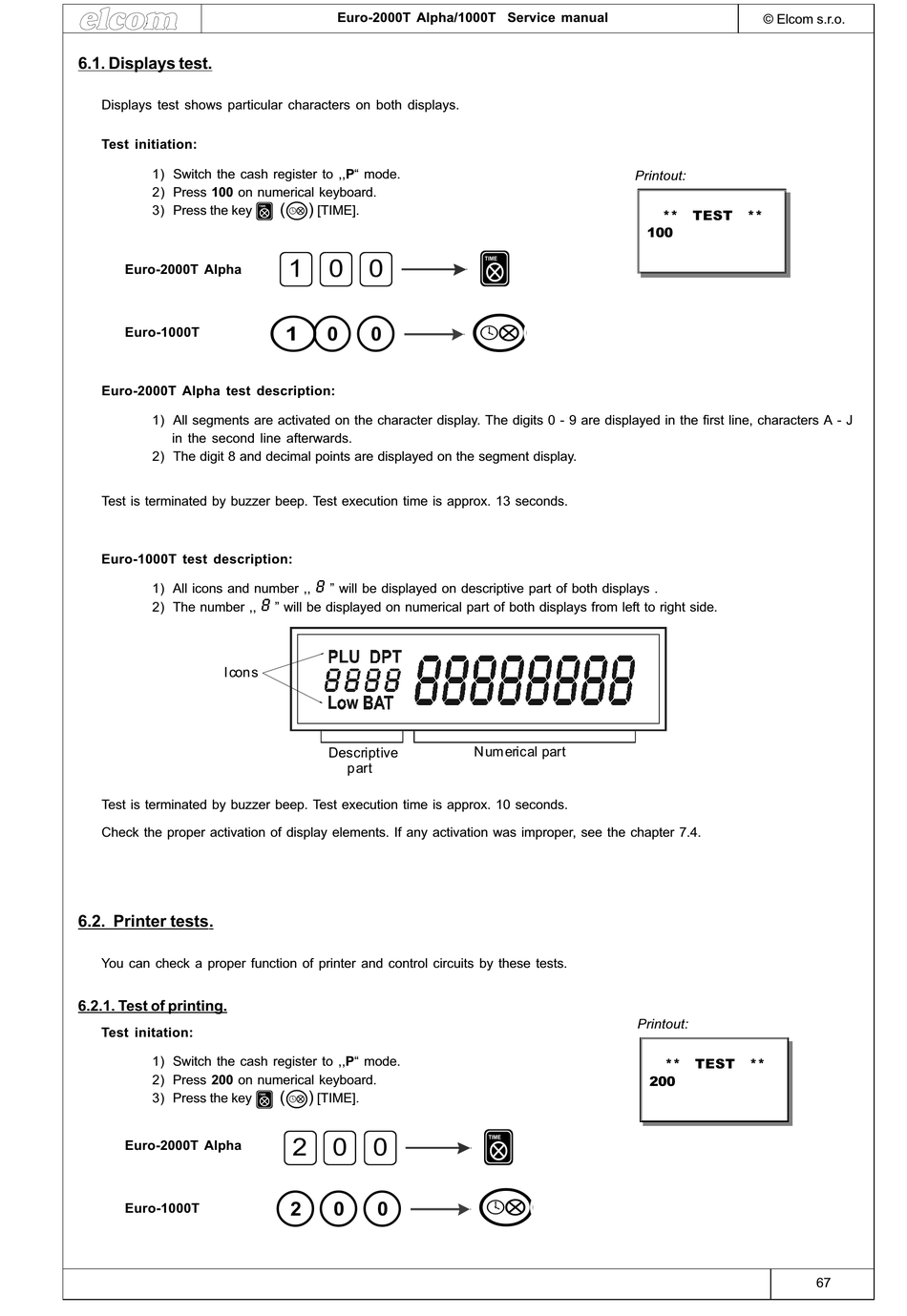

ELCOM Euro-2000T Alpha Service Manual page 67

6.1. Displays test.
Displays test shows particular characters on both displays.
Test initiation:
1) Switch the cash register to ,,P“ mode.
2) Press 100 on numerical keyboard.
3) Press the key
Euro-2000T Alpha
Euro-1000T
Euro-2000T Alpha test description:
1) All segments are activated on the character display. The digits 0 - 9 are displayed in the first line, characters A - J
in the second line afterwards.
2) The digit 8 and decimal points are displayed on the segment display.
Test is terminated by buzzer beep. Test execution time is approx. 13 seconds.
Euro-1000T test description:
1) All icons and number ,, 8 ” will be displayed on descriptive part of both displays .
2) The number ,, 8 ” will be displayed on numerical part of both displays from left to right side.
I cons
Test is terminated by buzzer beep. Test execution time is approx. 10 seconds.
Check the proper activation of display elements. If any activation was improper, see the chapter 7.4.
6.2. Printer tests.
You can check a proper function of printer and control circuits by these tests.
6.2.1. Test of printing.
Test initation:
1) Switch the cash register to ,,P“ mode.
2) Press 200 on numerical keyboard.
3) Press the key
Euro-2000T Alpha
Euro-1000T
Euro-2000T Alpha/1000T Service manual
( R )
[TIME].
K
10 0
100
Descriptive
part
( )
R
K [TIME].
20 0
200
Printout:
K
A
R Q
Num erical part
Printout:
K
A
R Q
© Elcom s.r.o.
** TEST **
100
** TEST **
200
67
