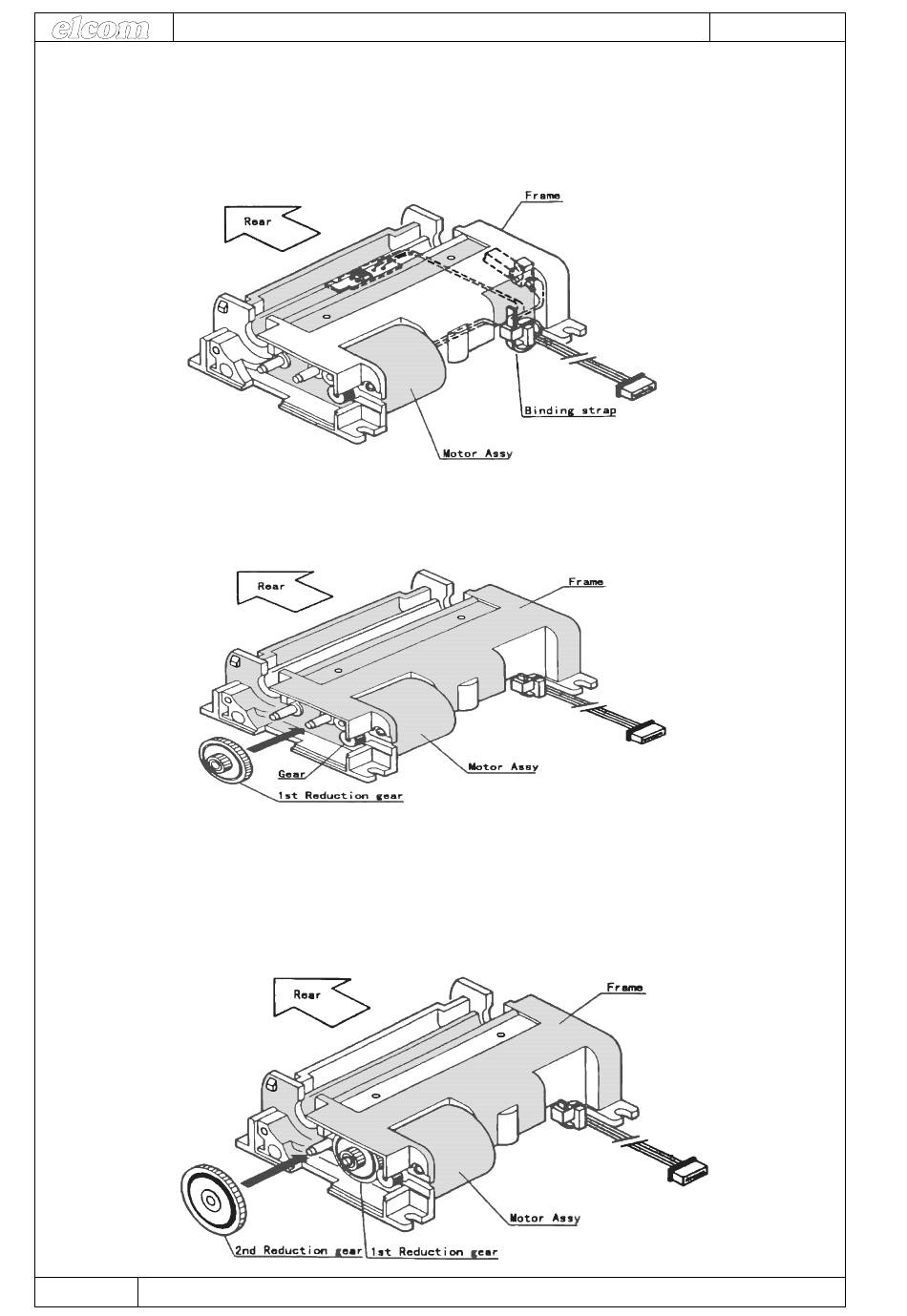

2. Install the head up sensor to the right side of the frame. Set the head up sensor in the direction, and fix it by the screw M1,7x6.
Check the leaf of the head up sensor for deformation.
3. Install the paper sensor on the bottom surface of the frame. Be careful not to break the cover of the lead wires install.
4. Fix the lead wires for the motor assembly with binder wires so the leads do not get loose.
5. Install the first reduction gear so that it may engage with the gear of the motor assembly.
6. Install the second reduction gear so that it engages with the first reduction gear. Be careful about the direction so the larger gear
comes to the upper side.
