Note 2:
In the case you use both the remote cash drawer and the remote display, it is necessary to modify their connector
according to the figures above.
Note 3:
The remote display consists of the same LCD module as the Euro-2000T Alpha / Euro-1000T customer and
operator module. The repair or backlight installation procedure is the same as for the internal display modules.
54
Euro-2000T Alpha/1000T
PC

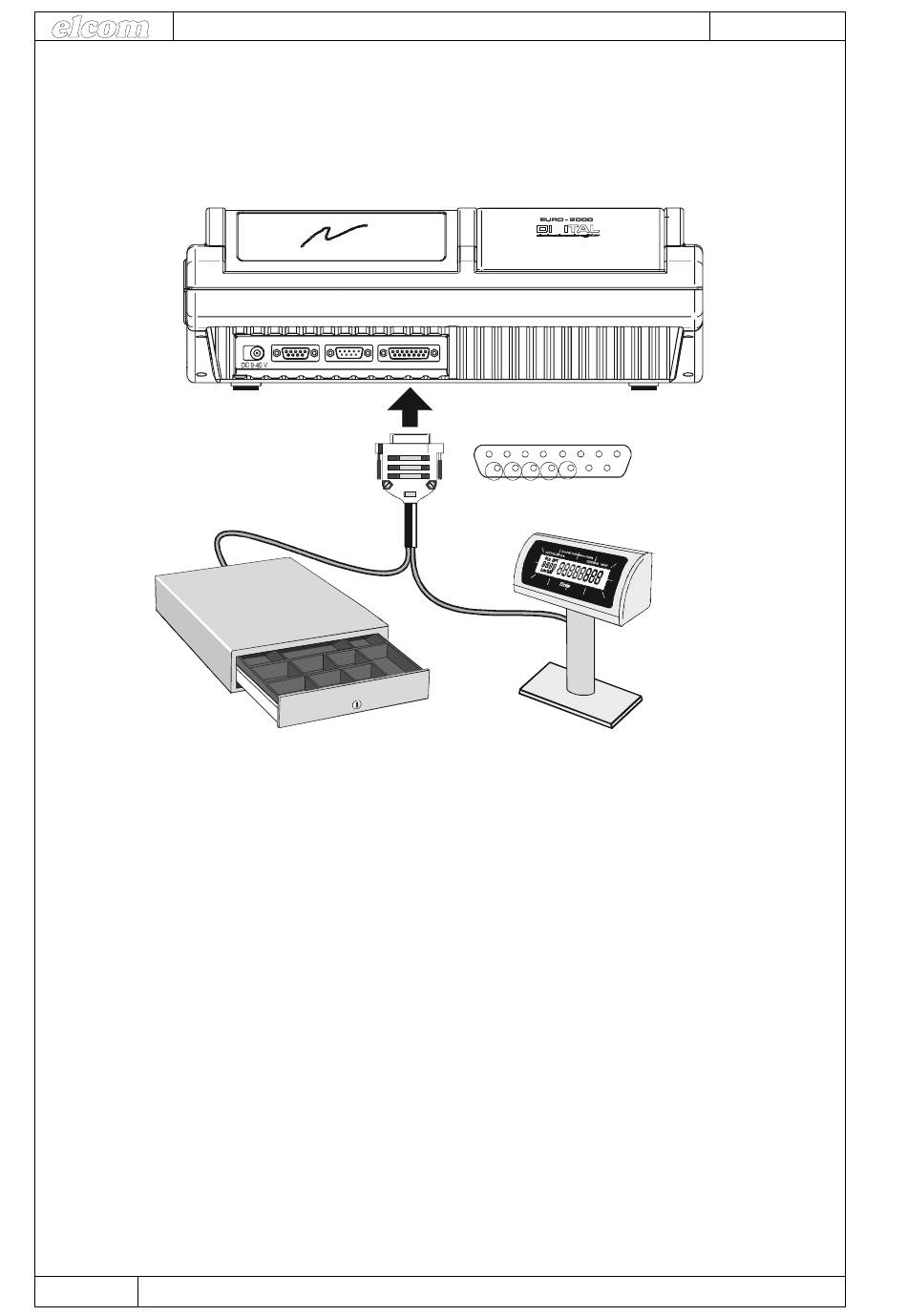

SCALES/SCANNER DRAWER/EXT.KEYB/DISPLAY
Service manual
D-SUB 15M
8
7
6
5
4
3
2
1
10
9
15
14
13
12
11
Soldering side
