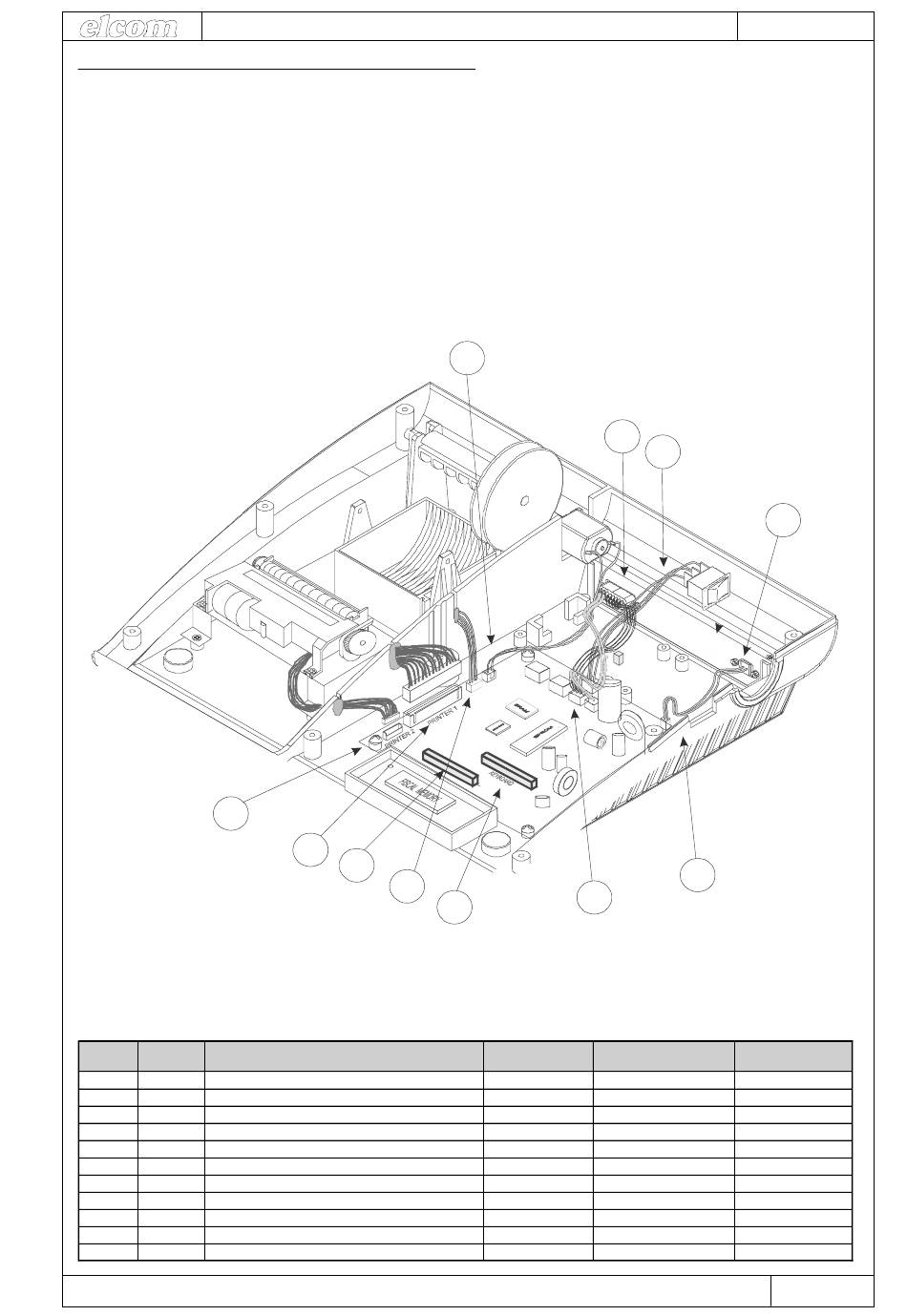

4.12.2. Euro-1000T peripherals to mainboard connection.
Note: Be sure the ECR is turned off.
1) Swicth off the ECR and unplug the external adaptor.
2) Remove the top cabinet.
3) Remove the lead acid accumulator (see 4.2).
4) Connect, resp. check the connection according to table below. Be sure connectors contact well.
5) Replace lead acid accumulator and fasten it. (see 4.2).
6) Connect the accumulator connector to mainboard Battery connector.
7) Replace the top cabinet (see 4.1.)
8) Execute all the tests (chapter 6).
5
No. Quantity
1 1 W inding motor connector with cable
2 1 Multifunctional connector D-SUB 15F
3 1 Power switch connector with cable
4 1 Adaptor connector with cable
5 1 Printer motor LT-286 connector and cable
6 1 Printer LT-286 connector and cable
7 1 FM connector and cable
8 1 Paper end sensor connector and cable
9 1 Keyboard connector and cable
10 1 Accumulator connector and cable
11 1 PC communication module connector and cable
Euro-2000T Alpha/1000T
1
6
7
8
9
Part name
Service manual
2
11
Connector
Code
on mainboard
KON03F W -MOTOR
OST010 DRAW ER, Ext. keyb.
KON06F SW -POW ER
KON10F POW ER
part of printer PRINTER 2
KON05F PRINTER 1
KON12F FISCAL MEMORY
KON13F PAP-PRES
KON05F KEYBOARD
KON11F BATTERY
KON13F EXT KEYB
© Elcom s.r.o.
3
4
10
Code
KON03M
KON03M, KON13M
KON06M
KON10M
KONMOLEX10
KON05M
KON12M
KON13M
KON05M
KON10M
KON13M
