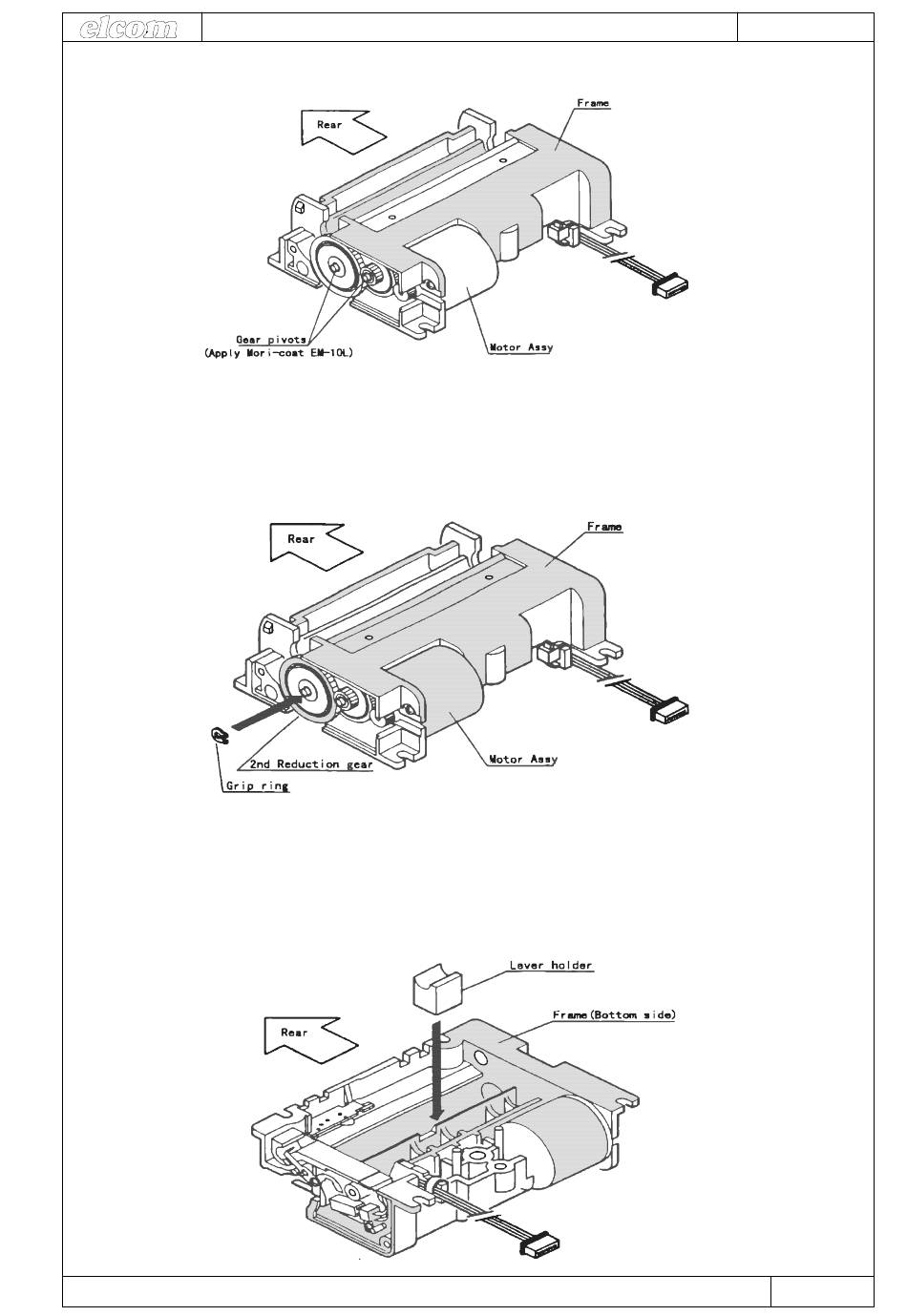

7. Apply Mori-coat EM-10L to the two gear pivots in which gears have been installed.
8. Fix the grip ring to the stepped portion on the tip of the pivot for the second reduction gear fully to the root of the step using pliers
exclusively for grip rings. The openess of the grip ring in insertion should not be much more than the outside diameter of the gear
pivot. Too much openess decreases the spring force reducing the securing force of the grip ring.
9. Put the lever holder in the frame. Be careful about the direction, inserting the lever holder so that the arc-shaped part comes to the
paper insertion inlet side.
Euro-2000T Alpha/1000T Service manual
