ELCOM Euro-2000T Alpha Service Manual page 36

4.3. Printer replacement
Note: Make sure the external adaptor is unplugged and ECR is turned off.
1) Remove the top cabinet. (see 4.1).
2) Disconnect the printer connectors from mainboard.

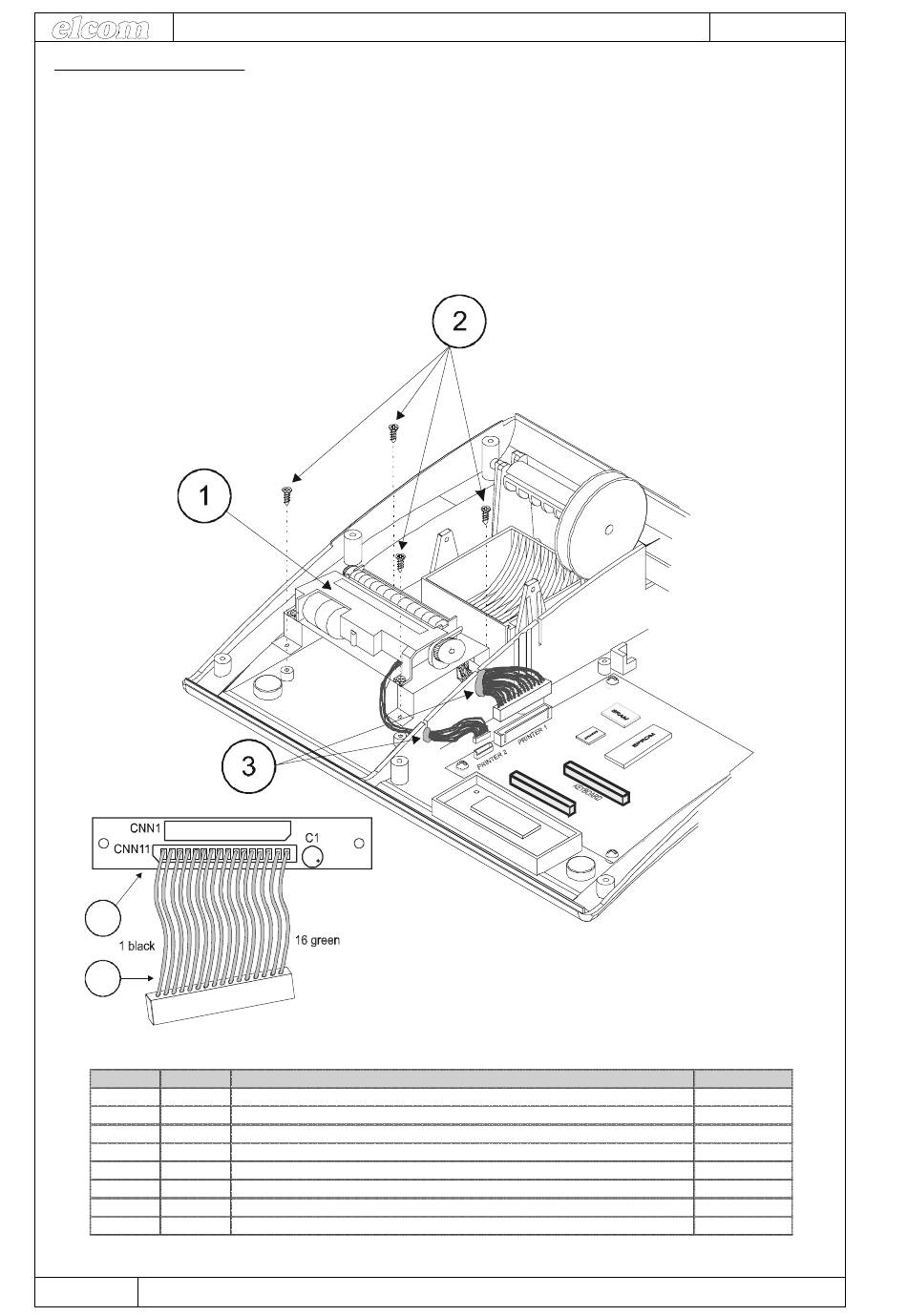

3) Loosen four printer screws (see figure below).
4) Disconnect FFC cable from printer mechanism.
5) If it is necessary, resolder lead wires according to figure.
6) Insert FFC cabel into printer connector. Be sure cable is connected well.
7) Fix the new printer in place by four screws.
8) Connect printer connectors to mainboard (PRINTER T1 and PRINTER T2).
9) Replace the top cabinet (see 4.1).
4
5
No. Quantity
1 1
2 4
3 **
4 1
5 1
6 1
7 1
8 1
36
Euro-2000T Alpha/1000T
Printer LT-286 5V
Screw 2,9x6,5
Fixation material
Printer PCB
Cable f rom printer to mainboard
FFC connector
FFC cabel
ELCAP 100uF/10V
Service manual
Part nam e
© Elcom s.r.o.
Code
OST700
SR001
**
OST703
KON05F
OST 705
OST 704
ZD 420
