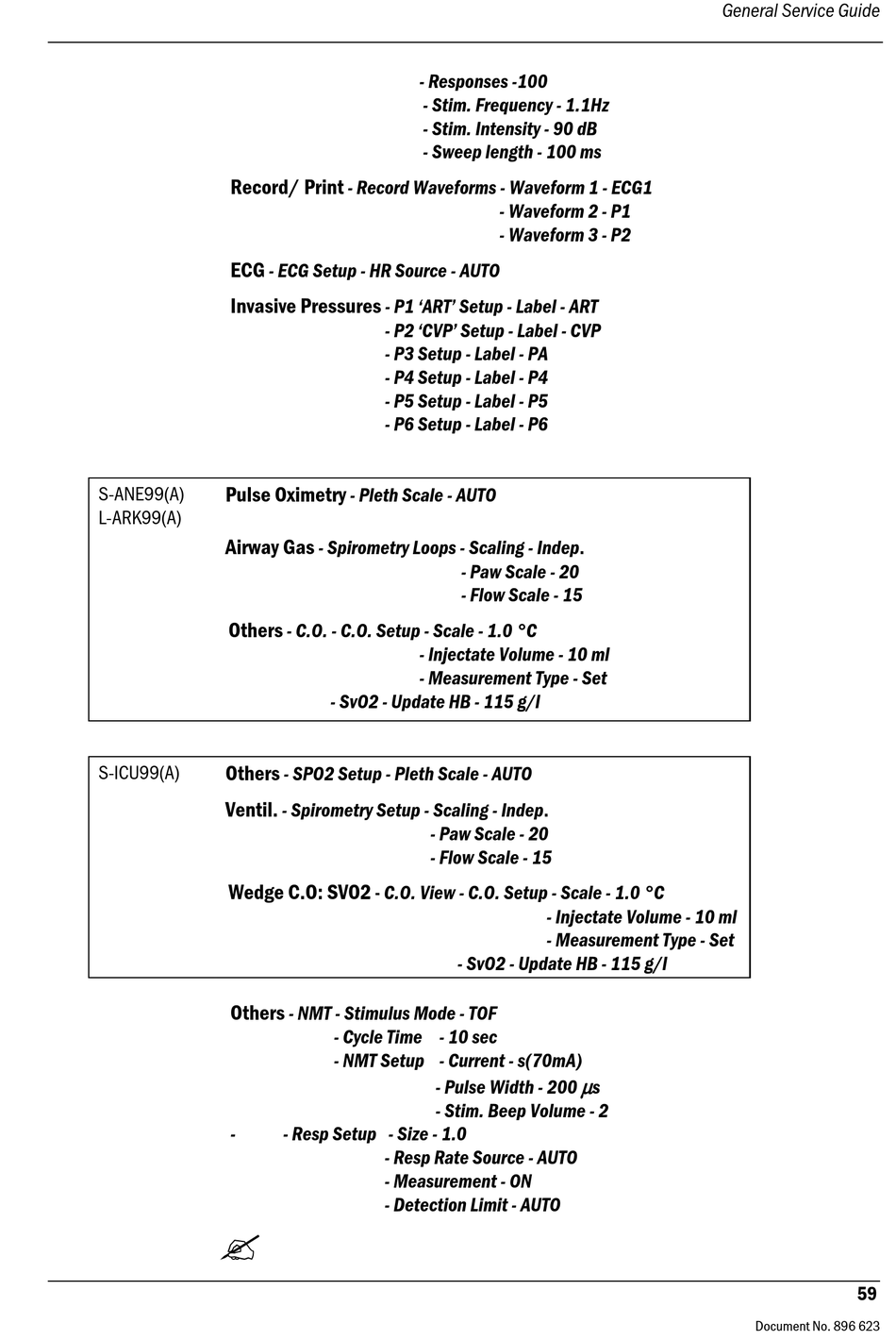

Datex-Ohmeda AS/3 Compact Monitor Technical Reference Manual page 67

Record/ Print
ECG
Invasive Pressures
S-ANE99(A) Pulse Oximetry
L-ARK99(A)
Airway Gas
Others
S-ICU99(A) Others
Ventil.
Wedge C.O: SVO2
Others
-
?
- Responses -100
- Stim. Frequency - 1.1Hz
- Stim. Intensity - 90 dB
- Sweep length - 100 ms
- Record Waveforms - Waveform 1 - ECG1
- ECG Setup - HR Source - AUTO
- P1 'ART' Setup - Label - ART
- P2 'CVP' Setup - Label - CVP
- P3 Setup - Label - PA
- P4 Setup - Label - P4
- P5 Setup - Label - P5
- P6 Setup - Label - P6
- Pleth Scale - AUTO
- Spirometry Loops - Scaling - Indep.
- C.O. - C.O. Setup - Scale - 1.0 °C
- Injectate Volume - 10 ml
- Measurement Type - Set
- SvO2 - Update HB - 115 g/l
- SPO2 Setup - Pleth Scale - AUTO
- Spirometry Setup - Scaling - Indep.
- Paw Scale - 20
- Flow Scale - 15
- C.O. View - C.O. Setup - Scale - 1.0 °C
- NMT - Stimulus Mode - TOF
- Cycle Time - 10 sec
- NMT Setup - Current - s(70mA)
- Pulse Width - 200 µ µ µ µ s
- Stim. Beep Volume - 2
- Resp Setup - Size - 1.0
- Resp Rate Source - AUTO
- Measurement - ON
- Detection Limit - AUTO
- Waveform 2 - P1
- Waveform 3 - P2
- Paw Scale - 20
- Flow Scale - 15
- Injectate Volume - 10 ml
- Measurement Type - Set
- SvO2 - Update HB - 115 g/l
